0.56" Single Digit Common Anode 7 Segment Display Ultra White 100-120mcd Luminous Intensity

0.56" Single Digit Common Anode 7 Segment Display Ultra White 100-120mcd Luminous Intensity
0.56" Single Digit Common Anode 7 Segment Display Ultra White 100-120mcd Luminous Intensity 0.56" Single Digit Common Anode 7 Segment Display Ultra White 100-120mcd Luminous Intensity 0.56" Single Digit Common Anode 7 Segment Display Ultra White 100-120mcd Luminous Intensity 0.56" Single Digit Common Anode 7 Segment Display Ultra White 100-120mcd Luminous Intensity 0.56" Single Digit Common Anode 7 Segment Display Ultra White 100-120mcd Luminous Intensity 0.56" Single Digit Common Anode 7 Segment Display Ultra White 100-120mcd Luminous Intensity

Large Image :  0.56" Single Digit Common Anode 7 Segment Display Ultra White 100-120mcd Luminous Intensity

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO

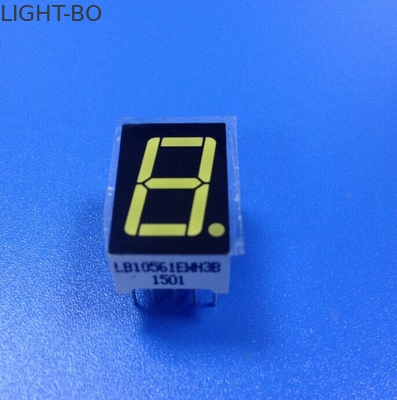

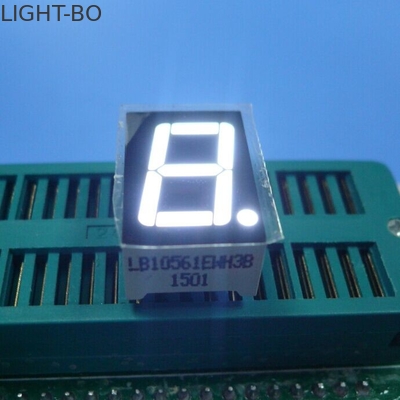

Model Number: LB10561EWH3B
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: EPE+CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

0.56" Single Digit Common Anode 7 Segment Display Ultra White 100-120mcd Luminous Intensity

Description
Outer Dimensions: 12.7*19*8(mm) Digit Height: 14.2mm(0.56")
Polarity: Common Cathode Emitting Color: Ultra Bright White
High Light:

seven segment led display

,

low power 7 segment display

Ultra white Single Digit 0.56" 7 Segment LED Display common cathode for instrument panel





Single digit 7 segment led display

Digit height: 0.56" (14.2mm)

Dimensions :12.6*19*8mm

Polarity:Common Cathode

Color: Ultra bright white

Luminous intensity: 100-120mcd

Forward voltage: 2.8-3.5V

Recommaned forward current: 10-15mA/LED

Color available : Red,blue, green,yellow, white, orange










  • High efficiency, low power consumption

  • Luminous evenly distributed on each segment

  • Extremely low current, low development cost

  • The display provide excellent reliability in bright ambient light

  • Industrial standard size

  • RoHs compliant

  •

  • Applications:

  • audio equipments or instrument panels, general use for digit indicators
