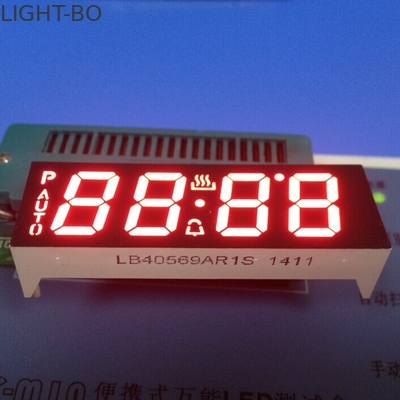

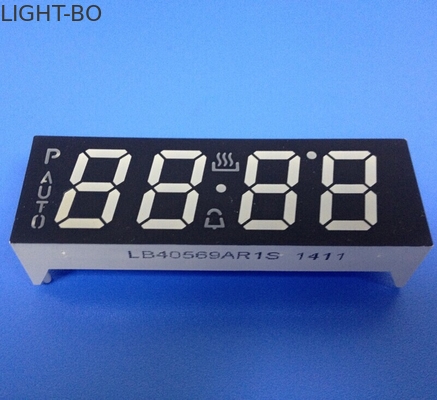

4 Digit 14.2mm 7 Segment Custom LED Display Ultra Red Oven Control Application

4 Digit 14.2mm 7 Segment Custom LED Display Ultra Red Oven Control Application
4 Digit 14.2mm 7 Segment Custom LED Display Ultra Red Oven Control Application 4 Digit 14.2mm 7 Segment Custom LED Display Ultra Red Oven Control Application

Large Image :  4 Digit 14.2mm 7 Segment Custom LED Display Ultra Red Oven Control Application

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB40569AR1S
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

4 Digit 14.2mm 7 Segment Custom LED Display Ultra Red Oven Control Application

Description
Package Dimensions:: 58.0 X 19 X 13.5mm Character Height:: 14.2mm (0.56")
Polarity:: Common Anode Colour:: Ultra Bright Red
Wavelength: 620-630 Luminous Intensity: 80-100mcd
Forward Voltage: 1.8-2.3V/led Forward Current: 12-15mA/led
Operating Temperature: 120C
High Light:

low power 7 segment display

,

seven segment led display

Ultra Red Custom LED Display , 4 Digit 14.2mm 7 segment For oven control

Product descriptions:
Package dimensions: 58.0 x 19 x 13.5mm
Character height: 14.2mm (0.56")
Face colour: black face, white segments with film
Polarity: common anode
Working temperature: max + 120℃
Colour: ultra bright red
Wavelength: 620-630nm
Luminous intensity: 80-100mcd
Forward voltage: 1.8-2.3V/led
Emitting colours: available in red, blue, green, white, amber, orange







Product features:
High luminous intensity
Low power consumption
Stable performance
Continuous uniform segments
Big viewing angle
Long lifetime
Meet RoHS Compliant
Applications:
Ideal for home appliances, built-in oven control, multifunction digital oven timer control


Code:R- ultra bright red

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8   2.3 V
Reverse Voltage(Per dice) Vr Ir=10uA 30     V
Luminous Intensty(Per dice) Iv If=20mA 80   100 mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength If=20mA 620   630 nm
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃


Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

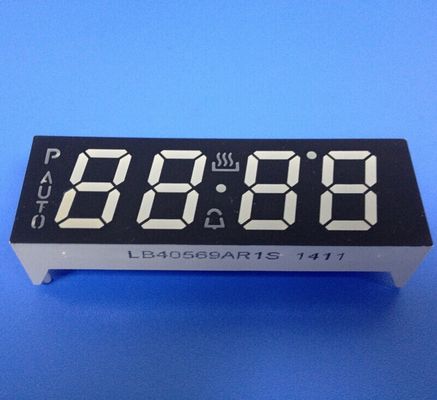

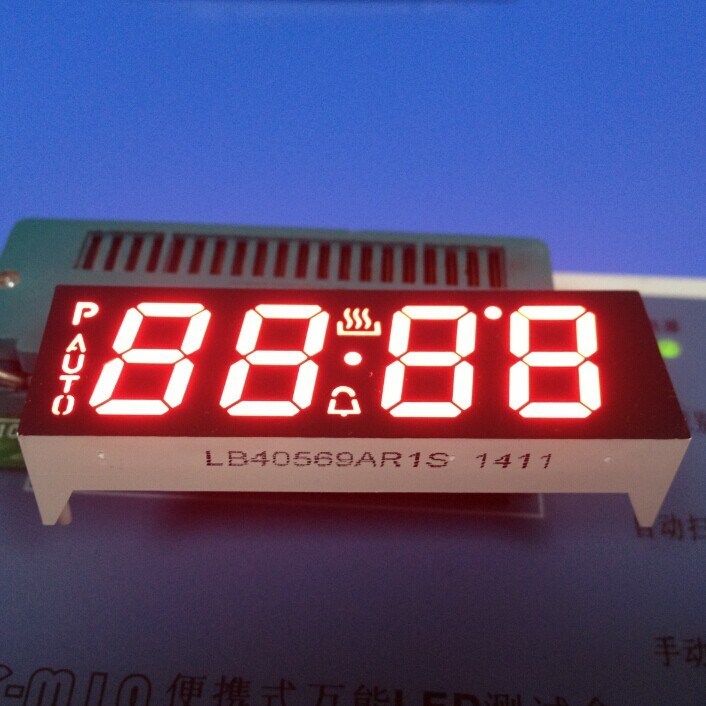

4 Digit 14.2mm 7 Segment Custom LED Display Ultra Red Oven Control Application 0
4 Digit 14.2mm 7 Segment Custom LED Display Ultra Red Oven Control Application 1
4 Digit 14.2mm 7 Segment Custom LED Display Ultra Red Oven Control Application 2
