Common Anode LED Clock Display Ultra Blue 0.56" For Oven Timer Withstand 120℃

China Common Anode LED Clock Display Ultra Blue  0.56" For Oven Timer Withstand 120℃ supplier

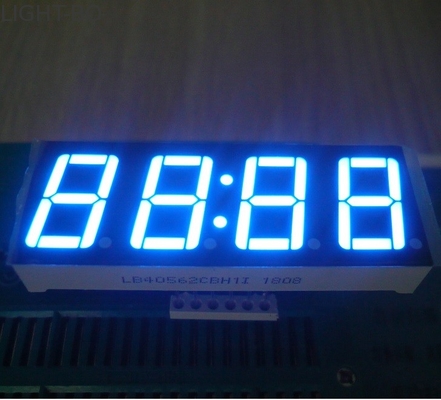

Large Image :  Common Anode LED Clock Display Ultra Blue 0.56" For Oven Timer Withstand 120℃

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: LIGHT-BO
Certification: ROHS
Model Number: LB40562CBH1I(T120)

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 50000pcs/day
Contact Now
Detailed Product Description
Digit Height: 14.2mm (0.56 Inch) Packing Size: 50.3 X 19 X 8mm
Polarity: Common Anode Color: Ultra Bright White

Ultra blue common anode 0.56" LED Clock Display for oven timer , Displays withstand 120℃ !!!







Product Descriptions:


  • Digital height: 14.2mm (0.56 inch)
  • Packing size: 50.3 x 19 x 8mm
  • Polarity: Common anode
  • white diffused epoxy grey face
  • LED Color:ultra bright blue
  • Wavelength:462-465nm
  • Luminous intensity:80-100mcd
  • Forward voltage:2.8-3.5V/led
  • Forward current:10-15mA/led
  • Emittinf Colors: red, blue, green, amber, orange, white and yellow

Applications:

Widely used in set-top boxes,home appliances and instrument panels,clock displays,digital timers,and numeric displays.

Why choose us?

1. Your inquiry related to our products will be replied in 24 hours.
2. Experienced staffs to answer your inquiries in fluent English.
3. Providing OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order, we will serve you with best quality and best service.
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.
7. If you become our VIP,you will enjoy more preferential policy.
8. If our products have any problem , we will send free in the next  order if it is our mistake.

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260
