Common Anode 2 Digit 14 Segment LED Display 0.54 Inch Super Bright Green for Instrument Panels and DIY Projects

Name: Common Anode 2 Digit 14 Segment LED Display 0.54 Inch Super Bright Green for Instrument Panels and DIY Projects
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB20541IJ1B
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHTBO
Model Number:	LB20541IJ1B
MOQ:	1000PCS
Price:	negotiable
Payment Terms:	TT in advance& Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&SGS&ISO

Model No:

LB20541IJ1B

Character Height:

0.54 Inches (13.8mm)

Outer Dimensions:

25.2 X 21.1 X 7.8 Mm

Polarity:

Common Anode

Colour:

Super Bright Green

Characteristic:

High Qulity With Reasonable Price

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Day

Highlight:

14 seg display

led 14 segment display

Durable 14 Segment Led Display

Product Description

Common Anode 2 Digit 14 Segment LED Display - 0.54 Inch Super Bright Color Durable

Common Anode 2 Digit 14 Segment LED Display, 0.54 Inch, Super Bright, Durable Alphanumeric Display for Instrument Panel, Temperature Controller, Counter, Home Appliance, Arduino DIY Embedded Project

Product Specifications

Character Height	0.54 inches (13.8mm)
Outer Dimensions	25.2 x 21.1 x 7.8 mm
Polarity	Common Anode
Color	Super Bright Green

Absolute Maximum Ratings (Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+85	℃
Storage Temperature Range	Tstg	-40～+85	℃
Solder Temperature (3 sec)	Th	260	℃

Electrical Characteristics

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage (Per dice)	Vf	If=20mA	1.8	-	2.5	V
Reverse Voltage (Per dice)	Vr	Ir=10uA	-	5	-	V
Luminous Intensity (Per dice)	Iv	If=20mA	40	-	50	mcd
Spectrum Width Of Half Value	△	If=20mA	-	30	-	nm
Wavelength	D	If=20mA	569	-	573	nm
Peak Forward Current (Per dice)	Ifp	1/10 Duty Cycle, 0.1ms Pulse	70			mA

Product Features

High efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Industrial standard size
Stable performance
Long lifetime
Easy assembly
RoHS directive-compliant
Color options: red, green, blue and white
Excellent design of outer appearance
Strict quality testing before leaving factory
Own production workshop and production facility
Customization available according to customer requirements

Applications

Audio equipment or instrument panels
General use for digital indicators
Multimedia products

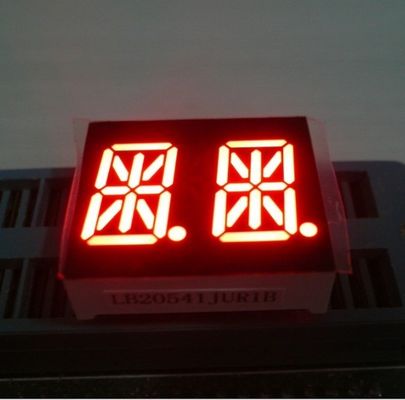

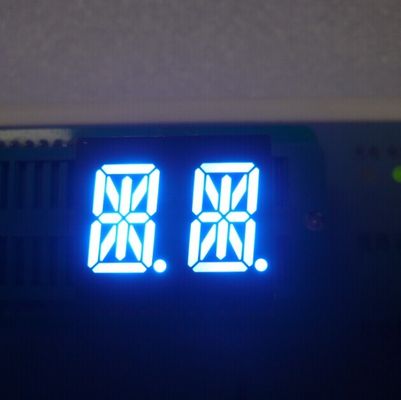

Product Images

Office and Factory Overview

Company Exhibitions

Certifications

Shipment Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are original manufacturers with more than 20 years of experience in optoelectronic LED displays (7 Segment LED display, 4 Digit LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, and more).

Q2: What are your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing an order, can I get some samples for testing?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; according to order quantity and raw materials. If you have an urgent order and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.

Q6: What are your terms of payment?

A: We accept bank transfer, T/T, Western Union and PayPal for small amounts. Details of payment methods are negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Please let us know your email address or contact us from our website directly for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will provide the charge to you as requested.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize the sizes, LED color and functional icons according to your requirements.

Q12: If I send my design, can you make it exclusively for me and not show it to anyone else?

A: Yes, we will not show it or sell to others without your authorization.

Q13: What is the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What are the shipping methods?

A: We usually ship goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA, etc. You can also choose other methods that work best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with more than 20 years of experience. We conduct twice 100% testing for all our products before shipment.
