Ultra Bright Red 20mA 635nm 5" Seven Segment LED Display

Ultra Bright Red 20mA 635nm 5" Seven Segment LED Display
Ultra Bright Red 20mA 635nm 5" Seven Segment LED Display Ultra Bright Red 20mA 635nm 5" Seven Segment LED Display Ultra Bright Red 20mA 635nm 5" Seven Segment LED Display Ultra Bright Red 20mA 635nm 5" Seven Segment LED Display

Large Image :  Ultra Bright Red 20mA 635nm 5" Seven Segment LED Display

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB50013-R
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiation
Packaging Details: EPE +CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

Ultra Bright Red 20mA 635nm 5" Seven Segment LED Display

Description
Outer Dimension: 54*14*10 Emitting Colour: Ultra Bright Red
Lifespan: 100000hrs Usage: Indoor/Outdoor
Operating Temperature: -35 ~ +85 ℃ Digit Height: 5inch
High Light:

20mA Seven Segment LED Display

,

5" Seven Segment LED Display

,

635nm Seven Segment Display

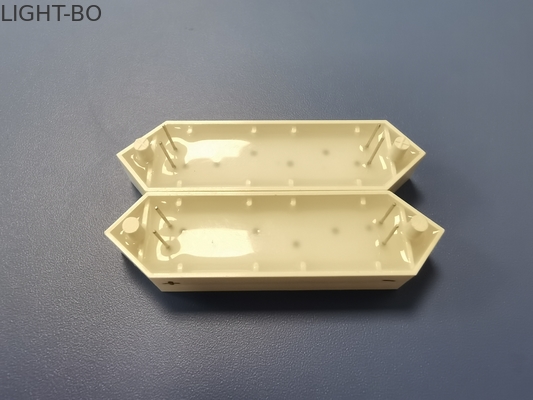

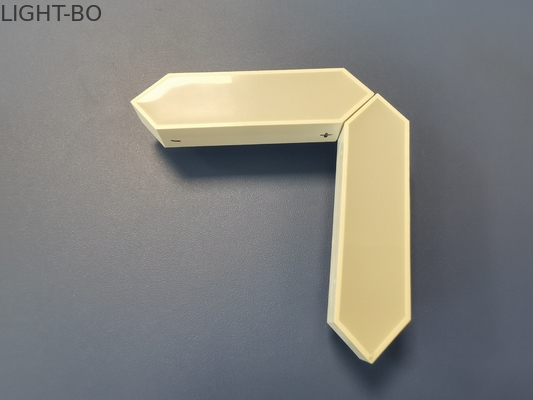

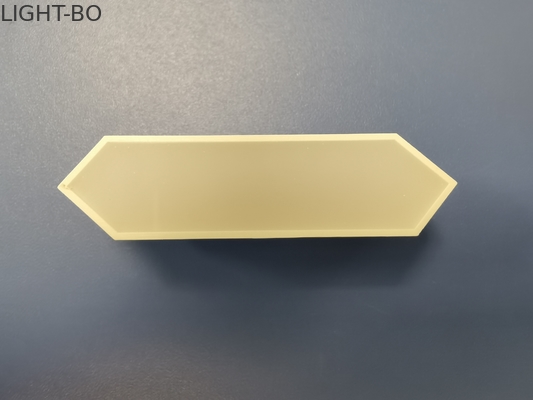

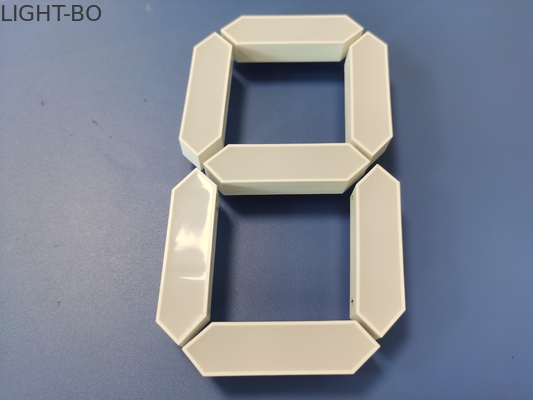

7 Segment LED Display Red color Segment connection



Features:

  • Outer dimensions:54*14*10mm

  • Digit height: 5 inch

  • Emitting color : ultra bright red



Advantages:

  • High-luminous intensity output

  • High-efficiency

  • Low-power consumption

  • Extremely low-current

  • Luminous evenly distributed on each segment

  • Emitting colors: various colors avaioaboe





Code:Ultra Bright Red

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 25   35 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 625   635 nm

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

LED working lifetime 100,000hrs

Absolute Maximum Rating at Ta=25

show:

Ultra Bright Red 20mA 635nm 5" Seven Segment LED Display 0Ultra Bright Red 20mA 635nm 5" Seven Segment LED Display 1



Shipping:

Ultra Bright Red 20mA 635nm 5" Seven Segment LED Display 2



Production:

Ultra Bright Red 20mA 635nm 5" Seven Segment LED Display 3





FAQ:


1.Is your parts new ?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

2.What is your warranty?

Answer: Within one year after package have been received.

3.How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.

4.Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

5.What is your lead time?

Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
