Product Details:
|
| Outer Dimension: | 56*38*11 | Emitting Colour: | Ultra Bright Red |
|---|---|---|---|
| Digit Height: | 1.8inch | Polarity: | Common Anode |
| Lifespan: | 100000hrs | Usage: | Indoor/Outdoor |
| High Light: | 35mcd Single Digit LED Display,80mW Single Digit LED Display,635nm Common Anode LED Display |
||

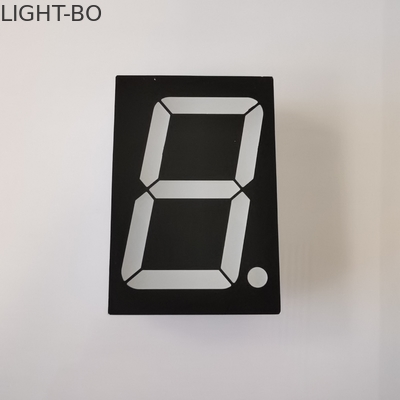

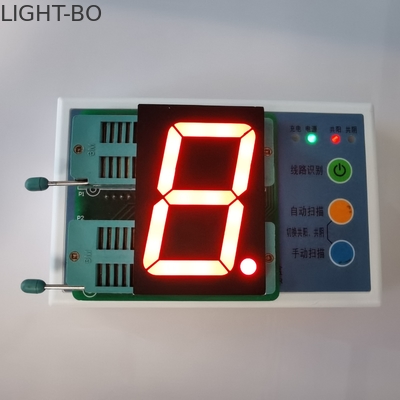

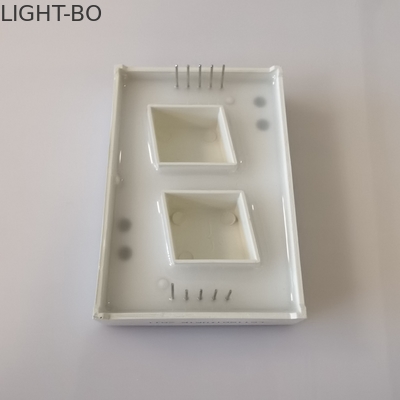

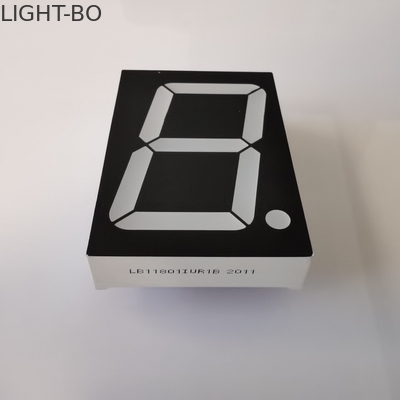

Hot Sale Single Digit 7 Segment LED Display 1.8inch Red Color Common Anode
Features:
Outer dimensions:56*38*11mm
Digit height: 1.8 inch
Emitting color : ultra bright red
Polarity: Common Anode
Advantages:
High-luminous intensity output
High-efficiency
Low-power consumption
Extremely low-current
Luminous evenly distributed on each segment
Emitting colors: various colors avaioaboe
Code:Ultra Bright Red
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=20mA | 25 | 35 | mcd | |
| Spectrum With Of Half Value | △λ | If=20mA | 20 | nm | ||
| Wavelength | Dλ | If=20mA | 625 | 635 | nm |
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40～+120 | ℃ |
| Storage Temperature Range | Tstg | -40～+120 | ℃ |
| Solder Temperature(3 sec) | Th | 260 |
℃ |
LED working lifetime 100,000hrs
Absolute Maximum Rating at Ta=25℃
