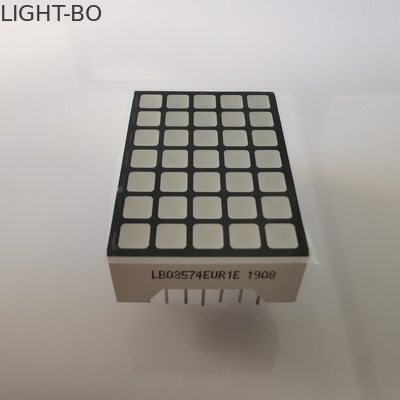

Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board

Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board
Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board
Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board

Large Image :  Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB03574EUR1E
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiation
Packaging Details: EPE +CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board

Description
Outer Dimension: 22x30x10mm Polarity: Common Anode
Emitting Dot Diameters: 3.39mm Emitting Colour: Ultra Bright Red
Lifespan: 100000hrs Surface Color: Black
High Light:

20mA Led Matrix Display Board

,

35mcd Led Matrix Display Board

,

3.39mm Dot Led Matrix Display



1.1 Inch Super Bright Red 3.39x3.39mm 5 X 7 Square Dot Matrix Led Display 22 X 30 X 10mm



Features:

  • Outer dimensions:22x30x10mm

  • Emitting dot diameters:  3.39mm

  • Common anode

  • White segments Black surface

  • Emitting color : ultra bright red



Advantages:

  • High-luminous intensity output

  • High-efficiency

  • Low-power consumption

  • Extremely low-current

  • Luminous evenly distributed on each segment

  • Emitting colors: various colors avaioaboe



Code:Ultra Bright Red

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 25   35 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 625   635 nm



Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

LED working lifetime 100,000hrs

Absolute Maximum Rating at Ta=25

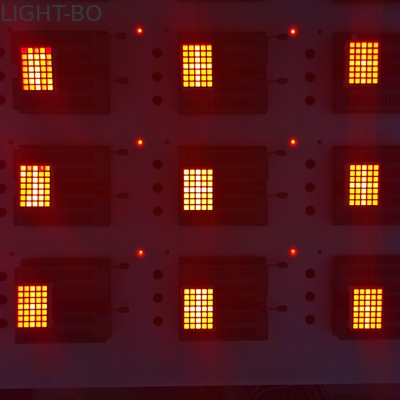

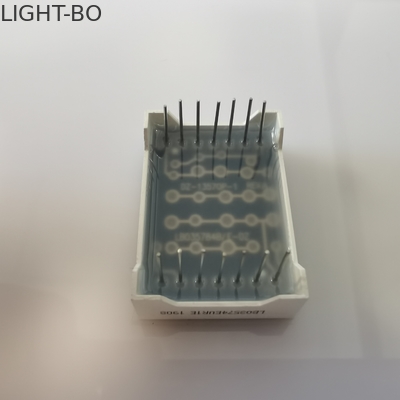

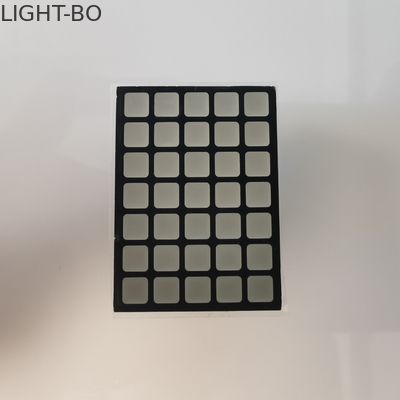

show:

Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board 0Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board 1Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board 2

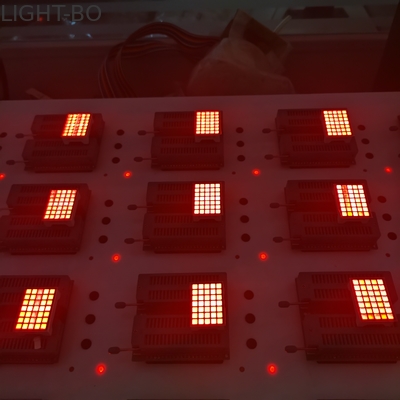

Shipping:

Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board 3



Production:

Square 3.39mm Dot 35mcd 1.1in 20mA Led Matrix Display Board 4





FAQ:


1.Is your parts new ?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

2.What is your warranty?

Answer: Within one year after package have been received.

3.How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.

4.Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

5.What is your lead time?

Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
