Product Details:
|
Color: | Super Bright White/ Blue/Orange | Outer Dimensions: | 76*30MM |
---|---|---|---|
Polarity: | Common Cathode | Means Of Transport: | Ocean, Air, Land |
Application: | Vacuum Cleaner | Type: | Standard |
High Light: | Multicolour 7 Segment LED Display,30mcd 7 Segment LED Display,SGS Common Cathode LED Display |

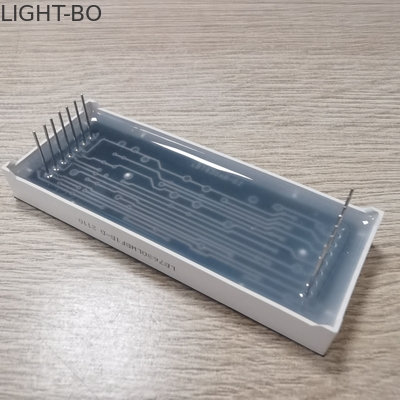

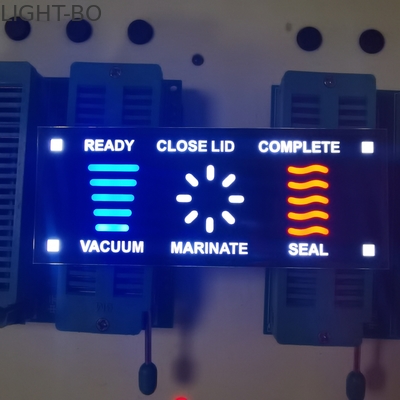

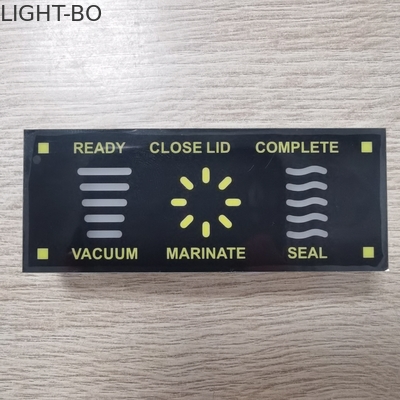

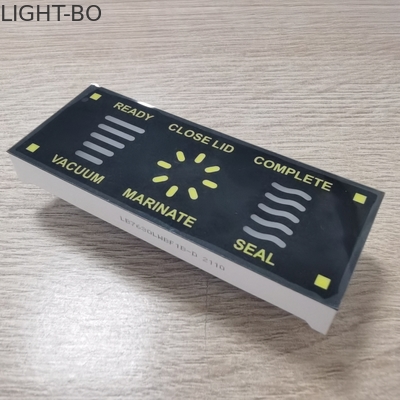

Multicolour 7 Segment LED Display Common Cathode For Vacuum Cleaner
Code:Ultra Bright White
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=20mA | 2.8 | 3.6 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=20mA | 100 | 120 | mcd | |
Spectrum With Of Half Value | △λ | If=20mA | 20 | nm |
Code:Ultra Bright Blue
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=20mA | 2.8 | 3.3 | V | |
Reverse Voltage | Vr | Ir=10uA | 30 | V | ||
Luminous Intensty | Iv | If=20mA | 30 | mcd | ||
Spectrum With Of Half Value | △λ | If=20mA | 30 | nm | ||
Wavelength | Dλ | If=20mA | 473 |
Absolute Maximum Ratings(Ta=25℃)
Parameter | Symbol | Ratings | Unit |
Forward Current(per dice) | Ipm | 20 | mA |
Reverse Voltage(per dice) | Vr | 5 | V |
Power Dissipation(per dice) | Pm | 80 | mW |
Operating Temperature Range | Topr | -40~+120 | ℃ |
Storage Temperature Range | Tstg | -40~+120 | ℃ |
Solder Temperature(3 sec) | Th | 260 | ℃ |
LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25℃
