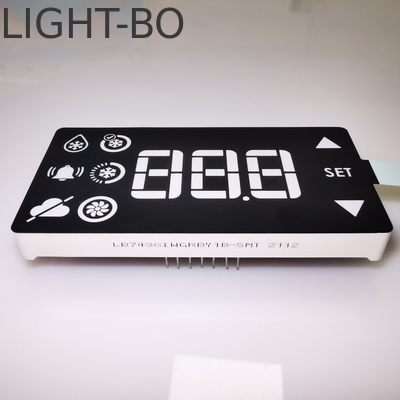

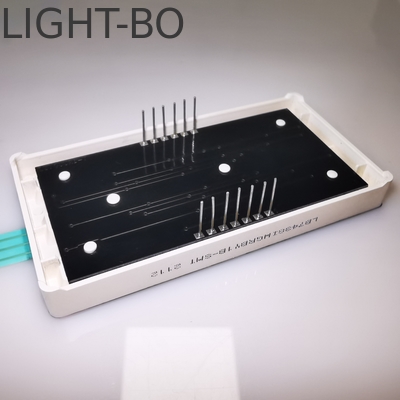

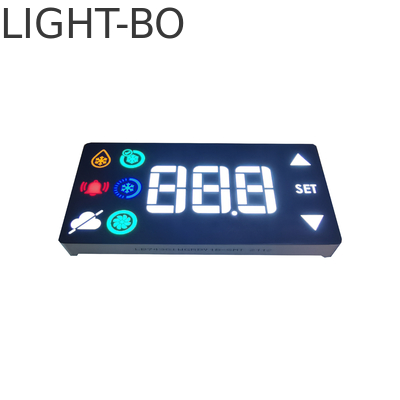

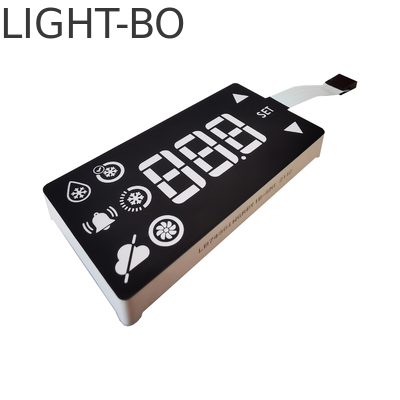

3 Digit Seven Segment LED Display Common Anode Touch Button 17.7mm Height

3 Digit Seven Segment LED Display Common Anode Touch Button 17.7mm Height
3 Digit Seven Segment LED Display Common Anode Touch Button 17.7mm Height
3 Digit Seven Segment LED Display Common Anode Touch Button 17.7mm Height 3 Digit Seven Segment LED Display Common Anode Touch Button 17.7mm Height 3 Digit Seven Segment LED Display Common Anode Touch Button 17.7mm Height 3 Digit Seven Segment LED Display Common Anode Touch Button 17.7mm Height 3 Digit Seven Segment LED Display Common Anode Touch Button 17.7mm Height

Large Image :  3 Digit Seven Segment LED Display Common Anode Touch Button 17.7mm Height

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&ISO9100
Model Number: LB7438IWGRBY1B-SMT
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiation
Packaging Details: EPE+Carton
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union, L/C
Supply Ability: 50000PCS/Day

3 Digit Seven Segment LED Display Common Anode Touch Button 17.7mm Height

Description
Color: Bright White/Red/Green/Blue/Amber Outer Dimensions: 74*38*8mm
Digit Height: 17.7mm Polarity: Common Anode
Lifespan: 80000hrs Application: Temperature Control
High Light:

3 Digit Seven Segment LED Display

,

Common Anode Seven Segment LED Display

,

17.7mm Height 7 Segment Display

Custom Multicolour 3 Digit 7 Segment Touch Button LED Display For Temperature Control

  1. High luminous intensity and reliability
  2. High efficiency
  3. Low power consumption
  4. Extremely low current
  5. Luminous evenly distributed on each segment
  6. Stable performance
  7. Long lifespan
  8. Easy assembly
  9. IC Compatible
  10. Meet RoHS Compliant
  11. With Touch Botton

Code:Pure Green

ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=20mA3.0 3.5V
Reverse VoltageVrIr=10uA 5 V
Luminous IntenstyIvIf=20mA200 220mcd
Spectrum With Of Half Value△λIf=20mA 20 nm
WavelengthIf=20mA525 530nm


Code:Ultra Bright White

ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=20mA2.8 3.6V
Reverse VoltageVrIr=10uA 5 V
Luminous IntenstyIvIf=20mA100 120mcd
Spectrum With Of Half Value△λIf=20mA 20 nm

Code: Bright Red

ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=20mA1.8 2.2V
Reverse VoltageVrIr=10uA 5 V
Luminous IntenstyIvIf=20mA25 35mcd
Spectrum With Of Half Value△λIf=20mA 20 nm
WavelengthIf=20mA625 635nm


Code: Blue

ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=20mA2.8 3.3V
Reverse VoltageVrIr=10uA30  V
Luminous IntenstyIvIf=20mA 30 mcd
Spectrum With Of Half Value△λIf=20mA 30 nm
WavelengthIf=20mA465 475
