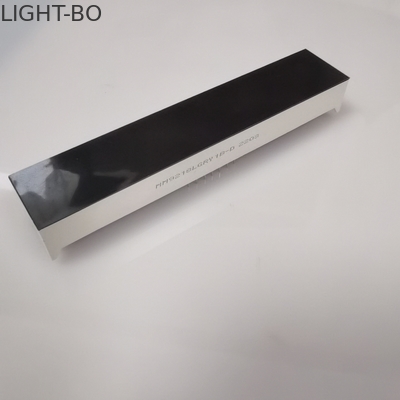

Custom 4 Digit Seven Segment Display Ultra Bright Grenn Black Film Diaphragamtion

Custom 4 Digit Seven Segment Display Ultra Bright Grenn Black Film Diaphragamtion
Custom 4 Digit Seven Segment Display Ultra Bright Grenn Black Film Diaphragamtion
Custom 4 Digit Seven Segment Display Ultra Bright Grenn Black Film Diaphragamtion Custom 4 Digit Seven Segment Display Ultra Bright Grenn Black Film Diaphragamtion Custom 4 Digit Seven Segment Display Ultra Bright Grenn Black Film Diaphragamtion Custom 4 Digit Seven Segment Display Ultra Bright Grenn Black Film Diaphragamtion Custom 4 Digit Seven Segment Display Ultra Bright Grenn Black Film Diaphragamtion

Large Image :  Custom 4 Digit Seven Segment Display Ultra Bright Grenn Black Film Diaphragamtion

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO9100
Model Number: LB9218LGRY1B-D
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiation
Packaging Details: EPE +CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

Custom 4 Digit Seven Segment Display Ultra Bright Grenn Black Film Diaphragamtion

Description
Size: 92*18*12mm Emitting Colour: Pure Green & Yellow & Red
Polarity: Common Athode Lifespan: 100000hrs
Application: Kitchen Hood Warranty: 3 Years
High Light:

Kitchen Hood 4 digit seven segment display

,

4 digit seven segment display 100000 hrs

,

4 digit 7 segment led display

Ultra Bright Grenn Color Black Film Diaphragamtion Custom 4 Digit LED DISPLAY For Kitchen Hood



 Advantages:

  • White segment Black surface
  • High luminous intensity
  • Low current operation
  • Stable performance
  • Continuous uniform segments
  • Easy mounting on PCB
  • IC compatible
  • RoHS compliant

Code:Pure Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 3.0   3.5 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA 200   220 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 525   530 nm

Code: Bright Red

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.2 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA 25   35 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 625   635 nm


Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

LED working lifetime 100,000hrs,  Absolute Maximum Rating at Ta=25

Custom 4 Digit Seven Segment Display Ultra Bright Grenn Black Film Diaphragamtion 0Custom 4 Digit Seven Segment Display Ultra Bright Grenn Black Film Diaphragamtion 1
