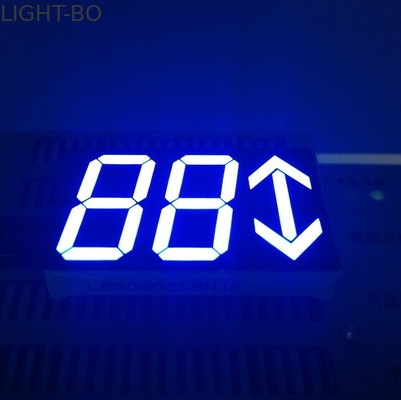

Ultra Bright Blue 0.80 Inch Arrow Led Display 3 Digit For Set - Top Boxes

Ultra Bright Blue 0.80 Inch Arrow Led Display 3 Digit For Set - Top Boxes
Ultra Bright Blue 0.80 Inch Arrow Led Display 3 Digit For Set - Top Boxes

Large Image :  Ultra Bright Blue 0.80 Inch Arrow Led Display 3 Digit For Set - Top Boxes

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB30803IBH1B
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

Ultra Bright Blue 0.80 Inch Arrow Led Display 3 Digit For Set - Top Boxes

Description
Digit Height: 0.8 Inches (22.0mm) Outer Dimensions: 43 X 26 X 8mm
Polarity: Common Anode, Common Cathode Colour: Ultra-bright Blue
High Light:

seven segment led display

,

low power 7 segment display


Ultra Bright Blue 0.80 Inch Arrow Led Display 3 Digit For Set - Top Boxes

Product Descriptions:
High-luminous intensity
Dight height:0.8 inches(22.0mm)
Quter dimensions:43x26x8mm
Polarity:Common anode/common cathode
Colour:Ultra Bright Blue
Emitting colors:Red,Blue,Green,Yellow,Orange,Amber and White.

Product Features:
High-luminous intensity
Low-power consumption
Extremely low-current
Stable performance
Big viewing angle
Long lifespan
Easy mounting on PC boards and sockets
Certification: IC
RoHS Directive-compliant

Applications:
Widely used in set-top boxes,oven timer control,home appliances and instrument panel,clock displays,digital timers and so on

Why choose us?
1. Your inquiry related to our products will be replied in 24 hours.
2. Experienced staffs to answer your inquiries in fluent English.
3. Providing OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order, we will serve you with best quality and best service.
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.
7. If our products have any problem , we will send free in the next  order if it is our mistake.

Absolute Maximum Ratings(Ta=25℃)


Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260


Code:W-Ultra Bright Blue



Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 2.8   3.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 30     V
Luminous Intensty(Per dice) Iv If=20mA 100   120 mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength  Dλ If=20mA 460   465 nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃



Product Pictures:
Ultra Bright Blue 0.80 Inch Arrow Led Display 3 Digit For Set - Top Boxes 0
Ultra Bright Blue 0.80 Inch Arrow Led Display 3 Digit For Set - Top Boxes 1
Ultra Bright Blue 0.80 Inch Arrow Led Display 3 Digit For Set - Top Boxes 2
