SGS Custom LED Display , 4 Digit 7 Segment Led Display 0.56 inch For Oven

Basic Information
Place of Origin: SHENZHEN,CHINA
Brand Name: LIGHT-BO
Certification: SGS
Model Number: LB40569ABH1S
Minimum Order Quantity: 500 PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 50000pcs/day
Contact Now
Detail Information
Package Dimensions:: 58.0 X 19 X 13.5mm Character Height:: 14.2mm (0.56")
Polarity:: Common Anode Colour:: Ultra Bright Blue
Wavelength: 462-465nm Luminous Intensity: 80-100mcd
Forward Voltage: 2.8-3.3V/led Forward Current: 12-15mA/led
Operating Temperature: 120C

Product Description

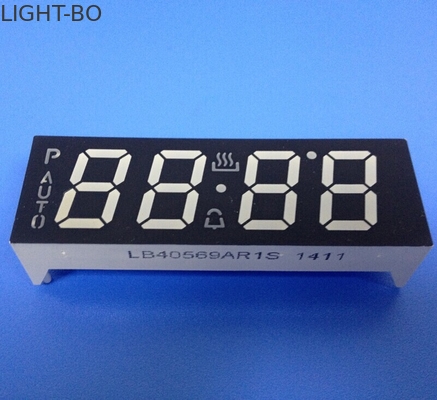

Ultra Blue Custom LED Display , 4 Digit 7 Segment Led Display 0.56 inch For Oven



Product descriptions:


Package dimensions: 58.0 x 19 x 13.5mm
Character height: 14.2mm (0.56")
Face colour: black face, white segments with film
Polarity: common anode
Working temperature: max + 120℃

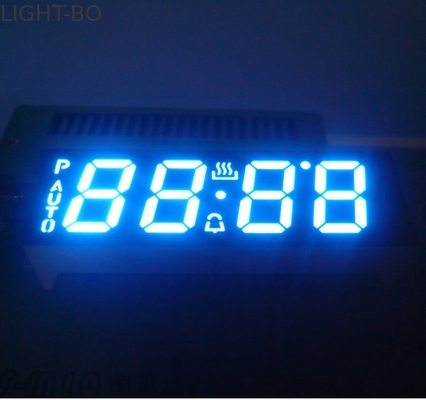

Colour: ultra bright blue
Wavelength: 462-465nm
Luminous intensity: 80-100mcd
Forward voltage: 2.8-3.3V/led

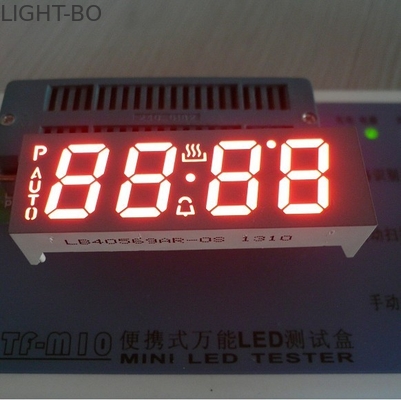

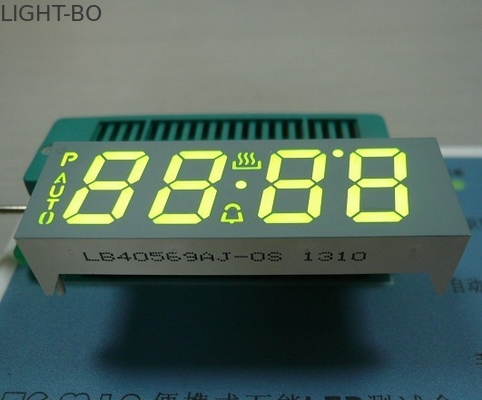

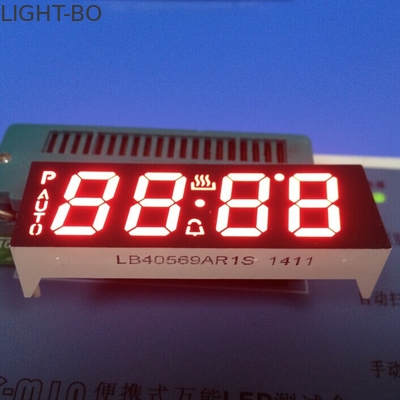

Emitting colours: available in red, blue, green, white, amber, orange
SGS Custom LED Display , 4 Digit 7 Segment Led Display 0.56 inch For Oven

SGS Custom LED Display , 4 Digit 7 Segment Led Display 0.56 inch For Oven

SGS Custom LED Display , 4 Digit 7 Segment Led Display 0.56 inch For Oven
Product features:


High luminous intensity
Low power consumption
Stable performance
Continuous uniform segments
Big viewing angle
Long lifetime
Meet RoHS Compliant

Applications:
Ideal for home appliances, built-in oven control, multifunction digital oven timer control



Code:W-Ultra Bright Blue

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 2.8   3.3 V
Reverse Voltage(Per dice) Vr Ir=10uA 30     V
Luminous Intensty(Per dice) Iv If=20mA 80   100 mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength  Dλ If=20mA 462   465 nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃



Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260
