Fridge Control Custom LED Display , 3 Digit 7 Segment Led Display Super Bright

Basic Information
Place of Origin: SHENZHEN,CHINA
Brand Name: LIGHT-BO
Certification: SGS
Model Number: LB30522IJRY1B
Minimum Order Quantity: 500 PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 50000pcs/day
Contact Now
Detail Information
Size: 41 X 17.5 X 7.35 (mm) Character Height: 13.4mm (0.52 Inches)
Polarity: Common Anode

Product Description

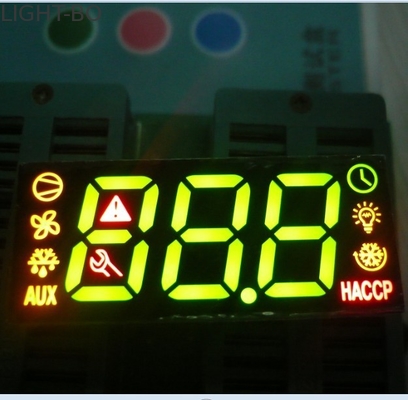

Fridge Control Custom LED Display , 7 Segment Led Display 3 Digit Super Bright



Product Descriptions:


Character height: 13.4mm (0.52 inches)
Outer dimensions: 41 x 17.5 x 7.35 (mm)
Polarity: common anode
With white segments and black surface with film

Emittinf Colors: red, blue, green, amber, orange, white and yellow

Product Features:

RoHS Directive-compliant
High luminous intensity output
High-efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Stable performance
Easy assembly
IC Compatible
Long lifespan
OEM and ODM orders are accepted

Applications:

Widely used in set-top boxes,home appliances and instrument panels,clock displays,digital timers,and numeric displays.

Why choose us?

1. Your inquiry related to our products will be replied in 24 hours.
2. Experienced staffs to answer your inquiries in fluent English.
3. Providing OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order, we will serve you with best quality and best service.
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.
7. If you become our VIP,you will enjoy more preferential policy.
8. If our products have any problem , we will send free in the next  order if it is our mistake.

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260


Code:R(Super bright Red)


Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8   2.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 5     V
Luminous Intensty(Per dice) Iv If=20mA 80   100 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength  Dλ If=20mA 622   625 nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃



Code:J-Ultra Bright Green



Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8   2.5 V
Reverse Voltage(Per dice) Vr Ir=10uA   5   V
Luminous Intensty(Per dice) Iv If=20mA 40   50 mcd
Spectrum With Of Half Value If=20mA   30   nm
Wavelength D If=20mA 569   573 nm
Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse Ifp 70 mA
Operating Temperature Range Torp -35℃~+85℃
Storage Temperature Range Tstg -35℃~+85℃
SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃
Absolute Maximum Rating at Ta=25℃



Code:Y-Ultra Bright Yellow



Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8   2.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 5     V
Luminous Intensty(Per dice) Iv If=20mA 70   80 mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength  Dλ If=20mA 585   595 nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃
