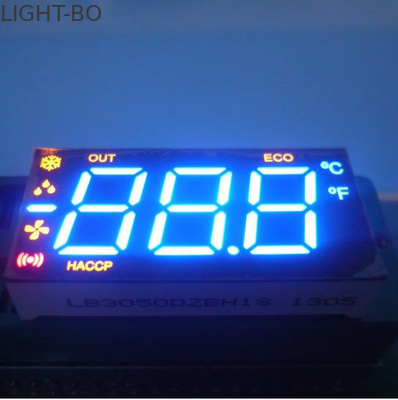

Multiple Colour Common Cathode Triple Digit Seven Segment Led Display Home Applicaties

Multiple Colour Common Cathode Triple Digit Seven Segment Led Display Home Applicaties
Multiple Colour Common Cathode Triple Digit Seven Segment Led Display Home Applicaties Multiple Colour Common Cathode Triple Digit Seven Segment Led Display Home Applicaties Multiple Colour Common Cathode Triple Digit Seven Segment Led Display Home Applicaties

Large Image :  Multiple Colour Common Cathode Triple Digit Seven Segment Led Display Home Applicaties

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB3050SZBH1S
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

Multiple Colour Common Cathode Triple Digit Seven Segment Led Display Home Applicaties

Description
Package Dimensions: 38.5 X 19 X 8mm Character Height: 12.7mm (0.5 Inches)
Polarity: Common Anode Emitting Colour: Ultra Bright Blue
High Light:

low power 7 segment display

,

seven segment led display



Triple Digit Multiple Colour Common Cathode Seven Segment Display Home Applicaties





Product Description:



Outer dimensions: 38.5 x 19 x 8mm

Digit height: 12.7mm (0.5 inches)

Polarity: common anode

Colour: Ultra bright blue

Emitting colors:Available in red, yellow green, pure green, blue and white, amber, orange




Absolute Maximum Ratings(Ta=25℃)



Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260



Code:W-Ultra Bright Blue



Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 2.8   3.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 30     V
Luminous Intensty(Per dice) Iv If=20mA 100   120 mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength  Dλ If=20mA 460   465 nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃







Product Feature:



High luminous intensity and reliability

High efficiency

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Big viewing angle

Stable performance

Long lifespan

Easy assembly

IC Compatible and Meet RoHS Compliamt



Application:



Widely used in set-top boxes, home appliances and instrument panels,temperature indicators, humidity indicators,electric meters, digital indicators and so on .

Why choose us?



1. Key raw materials are sourced from the US, Japan and Taiwan area

2. Full-automation ASM,such as automatic dice bonding and wire soldering machines

3. Specializing in the production of full range,full color LED digital tube,especially blue green and white

4. The OEM and ODM experiences has more than 10 years

5. It can be customized that according to customer requirement of varous size and color

6. Before sale and after sale services are good

7. Stable performance,prices is reasonable,delivery time is quickly



We Promise:



1. Your inquiry related to our products or prices will be replied in 24 hours.

2. Experienced staffs to answer all your enquires in fluent English.

3. We are doing the OEM and ODM service for more than 10 years.

4. Protection of your sales area, ideas of design and all your private information.

5. No matter big order or small order , we will provide all the best  quality , best service.

6. Advanced equipments and good materials: ASM machine, good chips and epoxy resin.

7. High brightness and low power consumption .

8. If our products have any problem , we will send free in the next  order if it is our mistake.

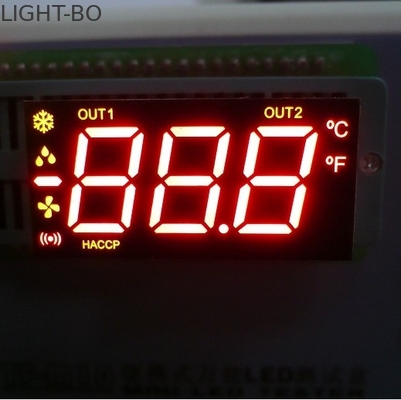

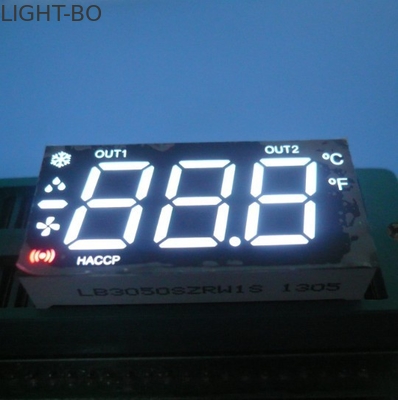

Product Pictures:



Multiple Colour Common Cathode Triple Digit Seven Segment Led Display Home Applicaties 0Multiple Colour Common Cathode Triple Digit Seven Segment Led Display Home Applicaties 1
