0.67 inch 3 Digit Seven Segment Display Common Anode Green Yellow Red

Basic Information
Place of Origin: SHENZHEN,CHINA
Brand Name: LIGHT-BO
Certification: SGS
Model Number: LB30671EJYR-S
Minimum Order Quantity: 500 PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 5-7 work day
Payment Terms: T/T
Supply Ability: 20000pieces/day
Contact Now
Detail Information
Package Dimensions: 37.9 X 20.45 X 5.75mm Character Height: 0.67 Inches
Polarity: Common Anode/common Cathode Emitting Colour: Super Bright Green/yellow/red

Product Description



0.67 inch 3 Digit Seven Segment Display Common Anode Green Yellow Red



Product Description:



Outer dimensions: 37.9 x 20.45 x 5.75mm

Digit height: 0.67 inches

Polarity: Common anode/common cathode

Colour: Super bright green/yellow/red

Emitting colors:Available in red, yellow green, pure green, blue and white, amber, orange


Product Feature:



1. High luminous intensity and reliability

2. High efficiency

3. Low power consumption

4. Extremely low current

5. Luminous evenly distributed on each segment

6. Big viewing angle

7. Stable performance

8. Long lifespan

9. Easy assembly

10. IC Compatible and Meet RoHS Compliamt



Application:



Widely used in set-top boxes, home appliances and instrument panels,temperature indicators, humidity indicators,electric meters, digital indicators and so on .



Why choose us?



1. Key raw materials are sourced from the US, Japan and Taiwan area

2. Full-automation ASM,such as automatic dice bonding and wire soldering machines

3. Specializing in the production of full range,full color LED digital tube,especially blue green and white

4. The OEM and ODM experiences has more than 10 years

5. It can be customized that according to customer requirement of varous size and color

6. Before sale and after sale services are good

7. Stable performance,prices is reasonable,delivery time is quickly



Absolute Maximum Ratings(Ta=25℃)



Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260



Code:R-Super Red



Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8   2.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 5     V
Luminous Intensty(Per dice) Iv If=20mA 50   60 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength  Dλ If=20mA 630   635 nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃



Code:J-Ultra Bright Green



Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8   2.5 V
Reverse Voltage(Per dice) Vr Ir=10uA   5   V
Luminous Intensty(Per dice) Iv If=20mA 40   50 mcd
Spectrum With Of Half Value If=20mA   30   nm
Wavelength D If=20mA 569   573 nm
Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse Ifp 70 mA
Operating Temperature Range Torp -35℃~+85℃
Storage Temperature Range Tstg -35℃~+85℃
SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃
Absolute Maximum Rating at Ta=25℃



Code:Y-Ultra Bright Yellow



Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8   2.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 5     V
Luminous Intensty(Per dice) Iv If=20mA 70   80 mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength  Dλ If=20mA 585   595 nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃

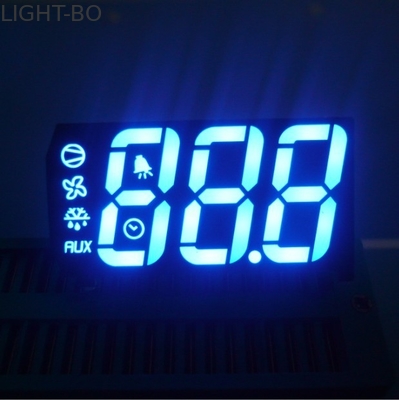

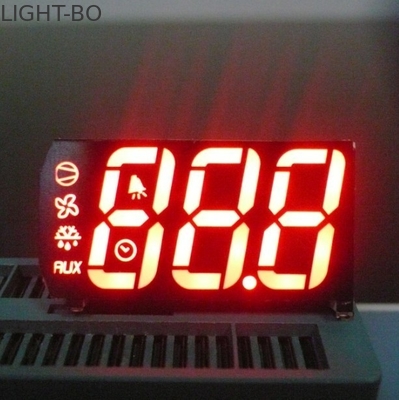

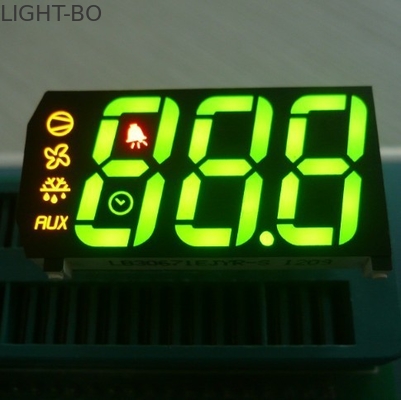

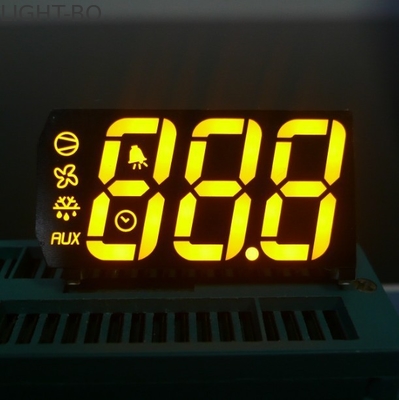

Product Pictures:



0.67 inch 3 Digit Seven Segment Display Common Anode Green Yellow Red0.67 inch 3 Digit Seven Segment Display Common Anode Green Yellow Red
