7 Segment LED Display 0.36 inch Ultra Bright Amber for Electronic Scales

Basic Information
Place of Origin: SHENZHEN,CHINA
Brand Name: LIGHT-BO
Certification: SGS
Model Number: LB60361BY3B
Minimum Order Quantity: 500 PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 5-7 work day
Payment Terms: T/T
Supply Ability: 20000pieces/day
Contact Now
Detail Information
Package Dimensions: 43.5 X 14.0 X 7mm Character Height: 9.2mm (0.36-inch)
Polarity: Common Anode/cathode Emitting Colour: Super Bright Amber

Product Description

7 Segment LED Display 0.36 inch Ultra Bright Amber for Electronic Scales





Product Description:



Outer dimensions: 43.5 x 14.0 x 7mm

Digit height: 9.2mm (0.36-inch)

Polarity: Common anode

Colour: Super bright amber

Wavelength : 585-590nm

Luminous intensity : 40-50mcd

Forward voltage: 1.8-2.2V

Emitting colors:Available in red, yellow green, pure green, blue and white, amber, orange




Absolute Maximum Ratings(Ta=25℃)



Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260



Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8   2.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 5     V
Luminous Intensty(Per dice) Iv If=20mA 70   80 mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength  Dλ If=20mA 585   595 nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃




Product Feature:

High luminous intensity and reliability

High efficiency

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Big viewing angle

Stable performance

Long lifespan

Easy assembly

IC Compatible and Meet RoHS Compliamt



Application:



Widely used in set-top boxes, home appliances and instrument panels,temperature indicators, humidity indicators,electric meters, digital indicators and so on .

Why choose us?



1. Key raw materials are sourced from the US, Japan and Taiwan area

2. Full-automation ASM,such as automatic dice bonding and wire soldering machines

3. Specializing in the production of full range,full color LED digital tube,especially blue green and white

4. The OEM and ODM experiences has more than 10 years

5. It can be customized that according to customer requirement of varous size and color

6. Before sale and after sale services are good

7. Stable performance,prices is reasonable,delivery time is quickly



We Promise:



1. Your inquiry related to our products or prices will be replied in 24 hours.

2. Experienced staffs to answer all your enquires in fluent English.

3. We are doing the OEM and ODM service for more than 10 years.

4. Protection of your sales area, ideas of design and all your private information.

5. No matter big order or small order , we will provide all the best  quality , best service.

6. Advanced equipments and good materials: ASM machine, good chips and epoxy resin.

7. High brightness and low power consumption .

8. If our products have any problem , we will send free in the next  order if it is our mistake.

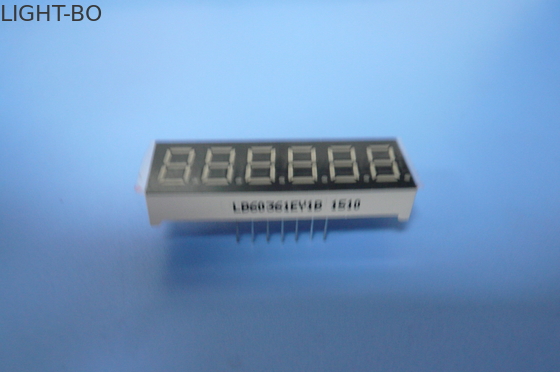

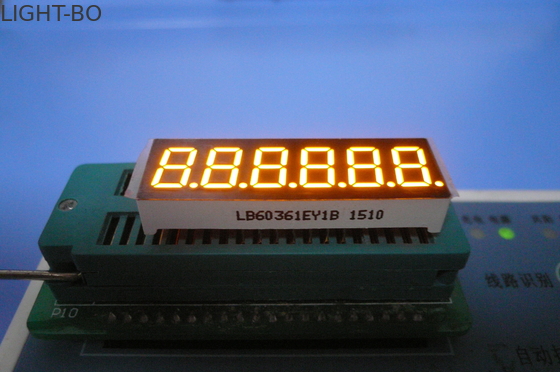

Product Pictures:



7 Segment LED Display 0.36 inch Ultra Bright Amber for Electronic Scales

7 Segment LED Display 0.36 inch Ultra Bright Amber for Electronic Scales
