Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving

Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving
Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving
Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving

Large Image :  Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB02881BWH1B
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving

Description
Character Height: 0.8" ( 20.2mm) Package Dimension: 20.2 X 20.2x5.9 Mm
Emitting Colour: Ultra White
High Light:

flexible dot matrix display

,

led message display



Indoor Dot Matrix Led Display 8 X 8 Stable Performance Energy saving





Key Specifications/Special Features:



Character height:0.8" ( 20.2mm)

Package dimension:20.2 x 20.2x5.9 mm

High-efficiency

Low-power consumption

Extremely low current

Low-development cost

Big viewing angle vertically and horizontally

Stable performance

Continuous Uniform Segments

Easy mounting on PC Boards and socket

Long lifetime

Emitting colors: red, blue, green, amber, orange, yellow and white

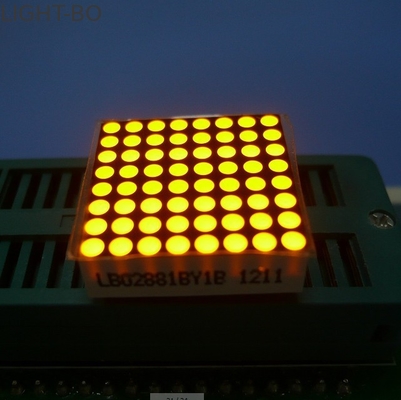

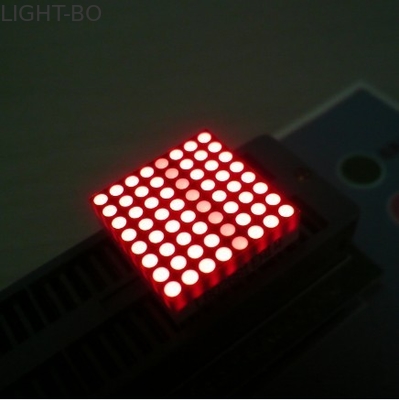

Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving 0Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving 1

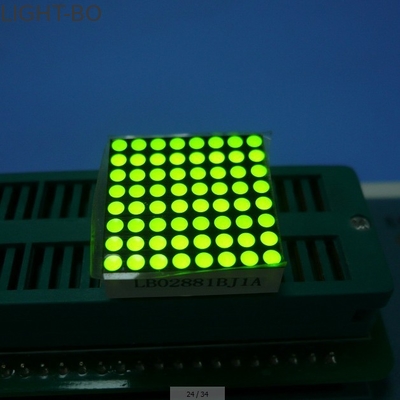

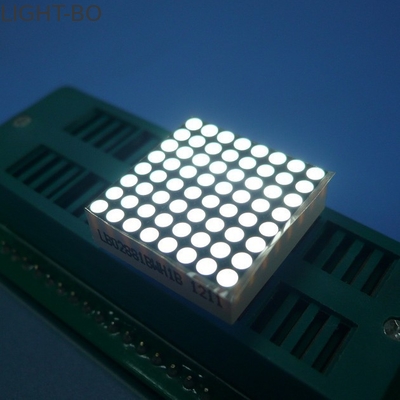

Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving 2Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving 3



Product Feature:

High dot intensity

Wide viewing angle

Bi- colors

Gray face White dot

RoHS compliant

Available option

Alternative face and dot color

Cropped terminal pins

Available emitting color

Low current version



Code:W-Ultra Bright White

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 2.8   3.5 V
Reverse Voltage(Per dice) Vr Ir=40uA   5   V
Luminous Intensty(Per dice) Iv If=20mA 100   120 mcd
Chromaticity Coordinates X If=20mA 0.29   0.33 nm
Chromaticity Coordinates Y If=20mA 0.29   0.33 nm
Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse Ifp 100 mA
Operating Temperature Range Torp -35℃~+85℃
Storage Temperature Range Tstg -35℃~+85℃
SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃
Absolute Maximum Rating at Ta=25℃

Indoor Dot Matrix Led Display 8X8 Stable Performance Energy Saving 4

Applications:



Suitable for digital displays and display screens, moving signs, message boards, lift position indicators and so on .
