16 Segment LED Display
Created with Pixso.

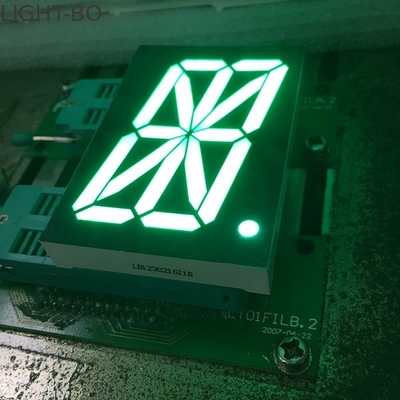

Pure green single digit 16 Segment LED Display for digital read-out panel

name

Pure green single digit 16 Segment LED Display for digital read-out panel

Brand Name: LIGHTBO
Model Number: LB12302IG1B
MOQ: 1000PCS
Price: NEGOTIABLE
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Dimensions:
47.6 X 69.5x12mm
Digit Height:
2.3inch(56.8mm)
Polarity:
Common Anode
LED Color:
Pure Green
Wavelength:
515-525nm
Luminous Intensity:
120-140mcd
Forward Voltage:
2.8-3.3V/led
Forward Current:
12-15mA
Packaging Details:
EPE+CARTON
Supply Ability:
50000PCS/Day
Highlight:

sixteen segment display

,

16 segment alphanumeric display

Product Description

Pure green 16 Segment LED Display single digit for digital read-out panel






Package Dimensions 47.6 x 69.5x12mm
Charater Height 56.8mm(2.3")
Polarity Common Anode
LED Color pure green
Wavelength 5150-525nm
Luminous intensity 120-140mcd
Forward voltage 2.8-3.3V/led
Reverse voltage 5V
Recommanded forward current 12-15mA

Pure green single digit 16 Segment LED Display for digital read-out panel 0

Pure green single digit 16 Segment LED Display for digital read-out panel 1

Pure green single digit 16 Segment LED Display for digital read-out panel 2

Pure green single digit 16 Segment LED Display for digital read-out panel 3


Pure green single digit 16 Segment LED Display for digital read-out panel 4
Pure green single digit 16 Segment LED Display for digital read-out panel 5





Key Specifications/Special Features:

  •

  • Customized sizes and colors are accepted

  • High efficiency, low power consumption

  • Luminous evenly distributed on each segment

  • Extremely low current, low development cost

  • Stable performance

  • Long lifetime

  • Easy assembly

  • IC Compatible

  • The display provide excellent reliability in bright ambient light

  • Industrial standard size

  • RoHS directive-compliant

  • Applications:

  • Audio equipment or instrument panels, general use for digit indicators
