Ultra Red Triple Digit 14 Segment Led Display For Medical Instrument , 14 Seg Display

Ultra Red Triple Digit 14 Segment Led Display For Medical Instrument , 14 Seg Display
Ultra Red Triple Digit 14 Segment Led Display For Medical Instrument , 14 Seg Display
Ultra Red Triple Digit 14 Segment Led Display For Medical Instrument , 14 Seg Display Ultra Red Triple Digit 14 Segment Led Display For Medical Instrument , 14 Seg Display Ultra Red Triple Digit 14 Segment Led Display For Medical Instrument , 14 Seg Display Ultra Red Triple Digit 14 Segment Led Display For Medical Instrument , 14 Seg Display Ultra Red Triple Digit 14 Segment Led Display For Medical Instrument , 14 Seg Display Ultra Red Triple Digit 14 Segment Led Display For Medical Instrument , 14 Seg Display Ultra Red Triple Digit 14 Segment Led Display For Medical Instrument , 14 Seg Display Ultra Red Triple Digit 14 Segment Led Display For Medical Instrument , 14 Seg Display

Large Image :  Ultra Red Triple Digit 14 Segment Led Display For Medical Instrument , 14 Seg Display

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB30565IR1B
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiated
Packaging Details: EPE+CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

Ultra Red Triple Digit 14 Segment Led Display For Medical Instrument , 14 Seg Display

Description
Dimenisons: 37.9 X 22x8mm Digit Height: 14.2mm (0.56inch)
Polarity: Common Anode LED Color: Ultra Bright Red
Wavelength: 620-625nm Luminous Intensity: 70-80mcd
Forward Voltage: 1.8-2.3v/led Forward Current: 12-15mA/led
High Light:

14 segment display

,

led 14 segment display



Ultra Red Triple Digit 14 Segment Led Display For Medical Instrument , 14 Seg Display

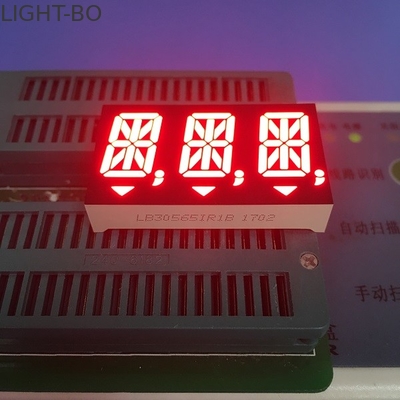

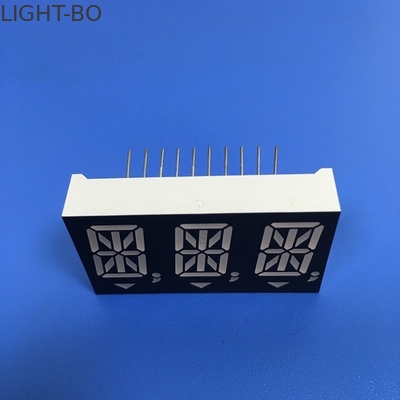

  •  Triple Digit 14 Segment Alphanumeric LED Display
  •
  •  Common Anode
  •
  •  Charater hight:14.2mm (0.56")
  •
  • Outer dimensions : 37.9 x 22x8mm
  •
  •  Face Colour Black
  •
  •  LED Colour : ultra bright red



Description:



1. Emitte lights under the condition of low voltage and small current drive; can be compatible with CMOS, ITL circuit;

2. Short response time when emitt lights (<0.1uS), excellent monochromaticity and high-frequency, big viewing angle, standard brightness, low power consumption, stable performance;

3. Small and light, easy assembly, anti-aging, anti-dust, anti-moisture, shock resistence;

4. Fast heat-dissipation, long lifespan, more than 10,000 hours, even up to 100,000 hours, low cost;

5. OEM / ODM is hot welcome to improve customers competitive advantages;

6. Character height are available from 6.2mm (0.25") to 500.00mm(20");

7. Various Colours available.





Specification



Descriptions Triple-Digit 14 Segment Alphanumeric LED Display
Package Dimensions 37.9 x 22x8mm
Character Height 14.2mm (0.56")
Face Colour Black
LED Colour ultra bright red
Wavelength 620-625nm
Luminous intensity

70-80mcd

Forward voltage 1.8-2.3v/led
Forward current 12-15mA/led





Specifications:



  1.  Wide viewing angle;
  2.  High limunous intensity and reliability;
  3.  Low current operation ;
  4.  Low power consumption;
  5.  Fast heat dissipation;
  6.  Stable performance;
  7.  Continuous uniform segments;
  8.  Small and light, easy monutingon the PCBor sockets;
  9.  Various colours and character height available;
  10.  Long lifespan;
  11.  Meet RoHS.



Competitive Advantage:



Stable quality;

High luminous intensity

Prompt delivery;

Long lifespan;

Cost competitive;

Excellent pre-sale and after sale service;

No MOQ;

Various colours available;

OEM / ODM acceptable .

IC compatible

Certificate: RoHS

Easymounting on PC Boards and sockets

Big viewing angle

Extremely low curren

tLow power consumption
