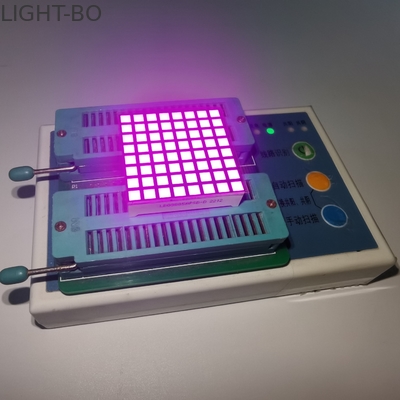

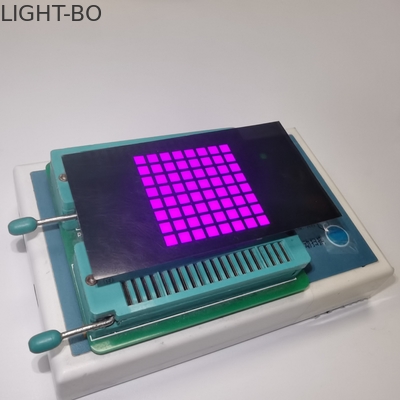

Pink Square 8x8 LED Dot Matrix Display Row Anode Column Cathode For Elevator

Pink Square 8x8 LED Dot Matrix Display Row Anode Column Cathode For Elevator

Brand Name:	LIGHTBO
Model Number:	LB03885AP1B-D
MOQ:	1000PCS
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&SGS&ISO

Outer Dimensions:

Dot Matrix 8 X 8 LED Display

Emitting Color:

Pink

Emitting Dot:

3.0mm

Polarity:

Row Anode Column Cathode

Segment/Surface:

Orange/Black

Means Of Transport:

Ocean, Air, Land

Life Span:

80000 Hours

Application:

Elevator Position Indicator

Packaging Details:

EPE+CARTON 54*37*40CM

Supply Ability:

50000PCS/Day

Highlight:

Elevator 8x8 LED Dot Matrix Display

Row Anode 8x8 LED Dot Matrix Display

Elevator 8x8 Dot Matrix Display

Product Description

Advantages:

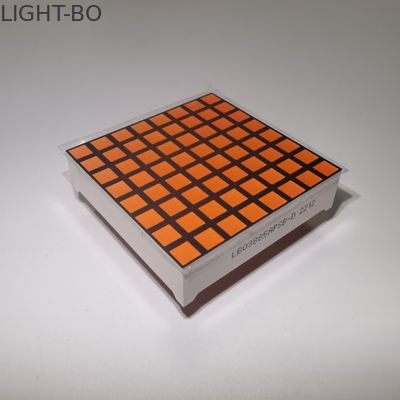

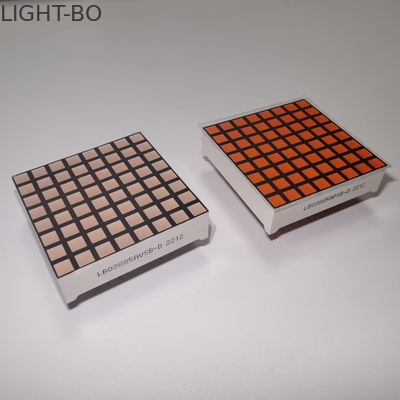

Orange segment Black surface
High luminous intensity
Low current operation
Stable performance
Continuous uniform segments
Easy mounting on PCB
IC compatible
RoHS compliant

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	℃
Storage Temperature Range	Tstg	-40~+120	℃
Solder Temperature(3 sec)	Th	260	℃

LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25℃

Drawing:

Packaging & Shipping

Pink Square 8x8 LED Dot Matrix Display Row Anode Column Cathode For Elevator 1

Pink Square 8x8 LED Dot Matrix Display Row Anode Column Cathode For Elevator 3

FAQ

1.Is your parts new ?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

2.What is your warranty?

Answer: Within one year after package have been received.

3.How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.

4.Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

5.What is your lead time?

Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
