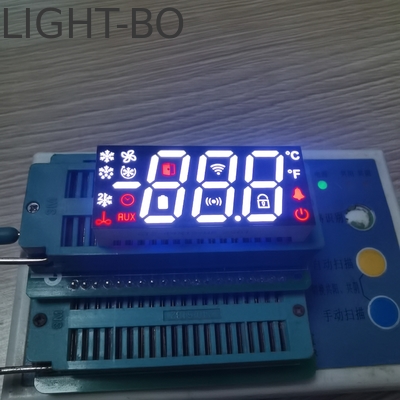

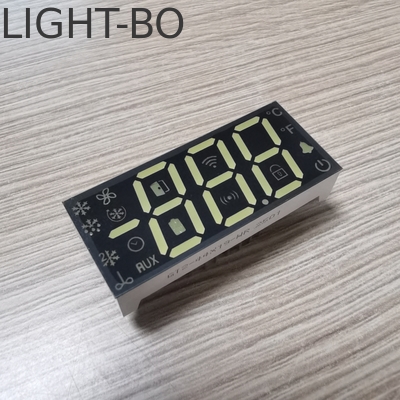

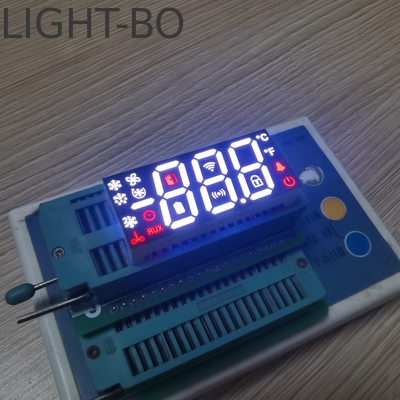

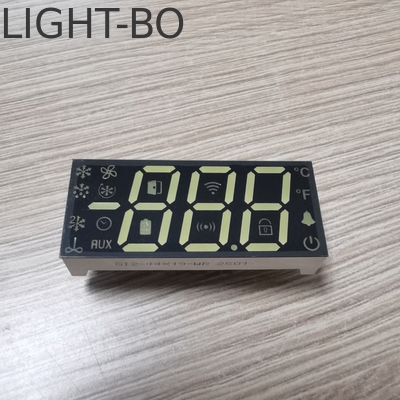

Multicolour 3 Digit 7 Segment LED Display Common Cathode For Refrigerator Controller

name

Multicolour 3 Digit 7 Segment LED Display Common Cathode For Refrigerator Controller

Brand Name: LIGHTBO
Model Number: LB4419-WR
MOQ: 1000PCS
Price: Negotiation
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&ISO9001
Outer Dimension:
44*19mm
Polarity:
Common Cathode
Emitting Colour:
Ultra Bright White
Lifespan:
100000hrs
Usage:
Indoor
Operating Temperature:
-45-85℃
Surface Color:
Black
Package:
DIP
Packaging Details:
EPE +CARTON
Supply Ability:
50000PCS/Day
Highlight:

Refrigerator Controller 7 Segment LED Display

,

Common Cathode 7 Segment LED Display

,

Multicolour 7 Segment LED Display

Product Description



Advantages:

  • High-luminous intensity output

  • High-efficiency

  • Low-power consumption

  • Extremely low-current

  • Luminous evenly distributed on each segment

  • Emitting colors: various colors avaioaboe



Code:Ultra Bright White

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.8   3.3 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 25   35 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength Dλ If=20mA       nm



Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40～+85 ℃
Storage Temperature Range Tstg -40～+85 ℃
Solder Temperature(3 sec) Th 260

℃

LED working lifetime 100,000hrs

Absolute Maximum Rating at Ta=25℃





Process of Production:

Multicolour 3 Digit 7 Segment LED Display Common Cathode For Refrigerator Controller 0





​Shipping :

Multicolour 3 Digit 7 Segment LED Display Common Cathode For Refrigerator Controller 1



Tags:

Refrigerator Controller Triple Digit LED Display

635nm Triple Digit LED Display

17mm Height Led 7 Segment Display
