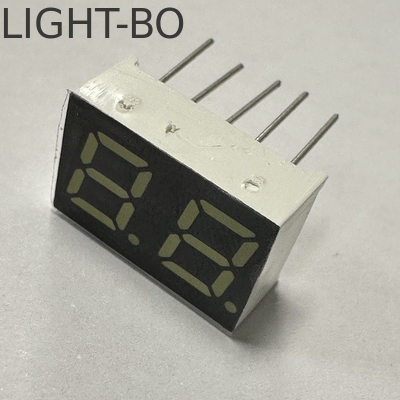

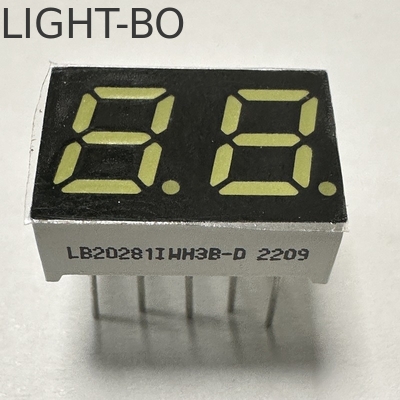

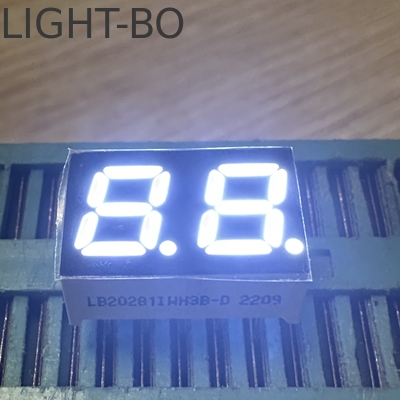

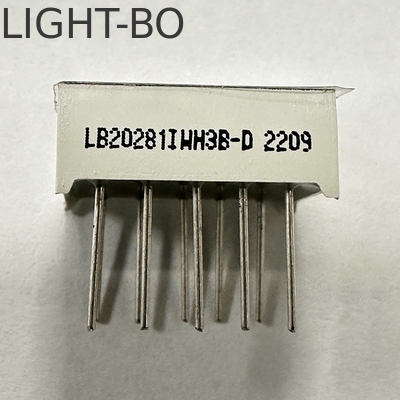

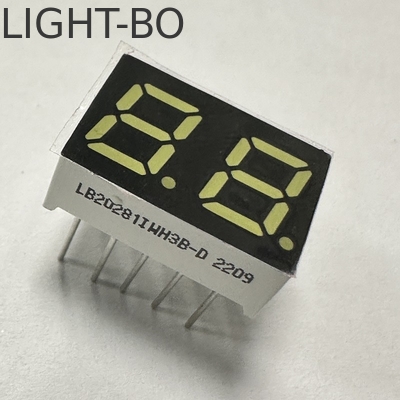

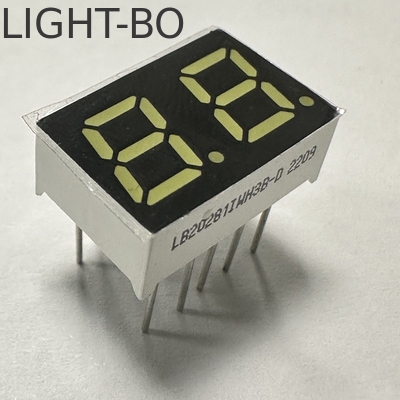

2 Digit 7mm 7 Segment LED Display Super Bright White Common Anode for Home Appliances

2 Digit 7mm 7 Segment LED Display Super Bright White Common Anode for Home Appliances

Brand Name:	LIGHT-BO
Model Number:	LB20281IWH3B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Polarity:

Common Anode

Surface:

Yellow Epoxy Black Surface

Digit Count:

1-9

Package Dimensions:

15*12*6.1mm

Advantage:

Small And Light, Easy Assembly

Delivery Date:

10- 15days

Digit Height:

0.28"( 7.mm)

Characteristic:

Raw Material With High Quality

Quality:

Industrial High Quality

Description:

Low Power Consumption,

Tradecolor Term:

EXW

Package:

SMD, DIP

Life Span:

100000hours

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

2 Digit 7 Segment LED Display

Home Appliances 7 Segment LED Display

Product Description

Super Bright White 2 Digit 7mm 7 Segment LED Display Common Anode for Home Appliances
Product Description:
2 Digit 7 Segment LED Display

Character height: 0.28"( 7.mm)

Outer dimensions: 15*12*6.1mm

Polarity: Common Anode
Yellow Epoxy black surface
Super Bright White

Emitting colours: red, blue, green, white, amber, orange and yellow
Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	℃
Storage Temperature Range	Tstg	-40~+120	℃
Solder Temperature(3 sec)	Th	260	℃

Code:R-Ultra bright white

Parameter	Symbol	Condition	Min	Typ	Max
Forward Voltage(Per dice)	Vf	If=20mA	2.8		3.2
Reverse Voltage(Per dice)	Vr	Ir=10uA	5
Luminous Intensty(Per dice)	Iv	If=20mA	100		140
Spectrum With Of Half Value	λ	If=20mA		20
Color Temperature		If=20mA	6000		6500

Color:Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	1.8		2.3	V
Reverse Voltage	Vr	Ir=10uA		5		V
Luminous Intensty	Iv	If=20mA	25		35	mcd
Spectrum With Of Half Value	λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	625		630	nm

Feature of Segment LED Displays
--White segment Black surface
--High luminous intensity
--Low current operation
--Stable performance
--Continuous uniform segments
--Easy mounting on PCB
--IC compatible
--RoHS compliant

Application of Segment LED Displays
-- Audio Equipment or instrument panels;
-- General using for digital indicators;
-- Multimedia products;
-- Bank exchange rate display;
-- LED clock display;
-- Display for gas station and other various display areas of equipment/machine.

Industrial Equipment
Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems
