Super Bright Red 7 Segment LED Display Triple Digit Common Cathode

Super Bright Red 7 Segment LED Display Triple Digit Common Cathode

Brand Name:	LIGHT-BO
Model Number:	LB30401IR1B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Application:

Household Appliances

Operating Temperature:

-45-80℃

Shipping:

By DHL, TNT, UPS, EMS, Etc.

Display Function:

Numeral 0-9

Oem:

Yes

Product Name:

Led 7 Segment Led Display

Packaging Details:

EPE+CARTON

Supply Ability:

50000 PCS/Day

Highlight:

Red 7 Segment LED Display

Triple Digit 7 Segment LED Display

Super Bright 7 Segment LED Display

Product Description

Product Description:

Character height: 0.4"( 10.16mm)

Outer dimensions: 30.1*16*7MM

Polarity: Common cathode

Yellow Epoxy black surface
Super bright Red

Emitting colours: red, blue, green, white, amber, orange and yellow

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Long lifetime

Meet RoHS/REACH compliant

Applications:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on

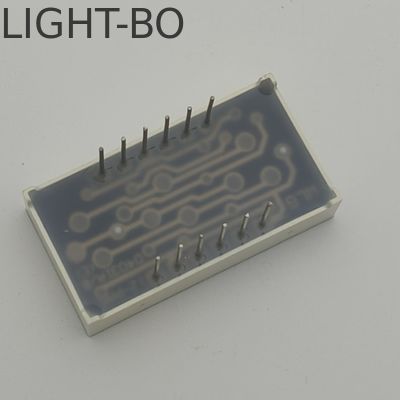

Super Bright Red 7 Segment LED Display Triple Digit Common Cathode 0

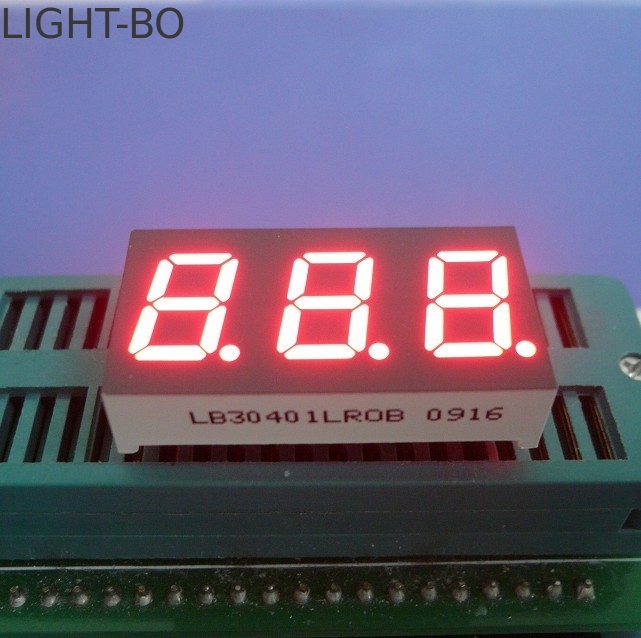

Super Bright Red 7 Segment LED Display Triple Digit Common Cathode 1

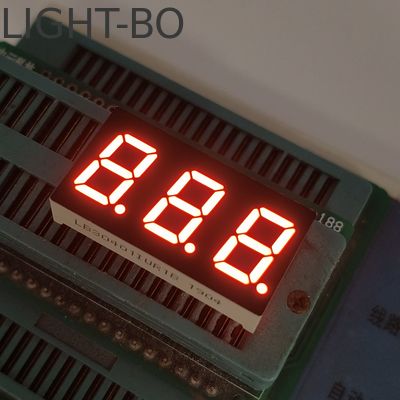

Super Bright Red 7 Segment LED Display Triple Digit Common Cathode 2

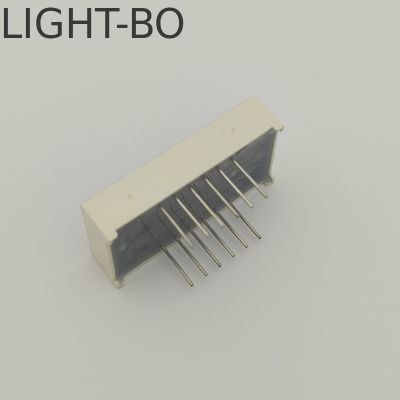

Super Bright Red 7 Segment LED Display Triple Digit Common Cathode 3
