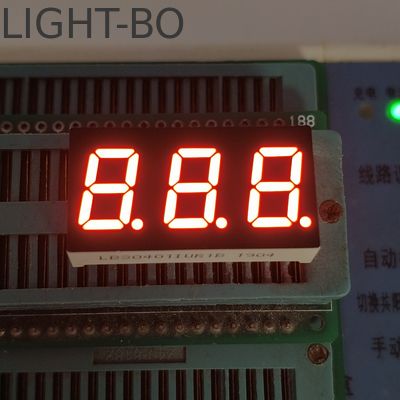

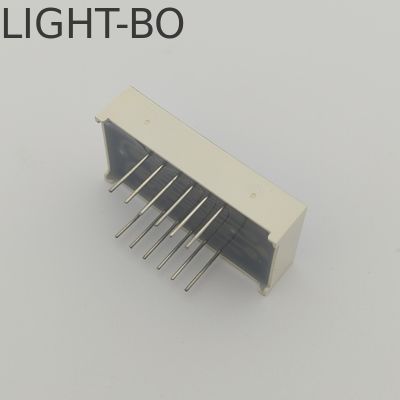

0.4 Inch Ultra Bright Red 7 Segment LED Display Triple Digit Common Anode

name

0.4 Inch Ultra Bright Red 7 Segment LED Display Triple Digit Common Anode

Brand Name: LIGHT-BO
Model Number: LB30401IUR1B-D
MOQ: 1000
Price: Negotiate
Payment Terms: T/T,Western Union
Supply Ability: 50000 PCS/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO9001&RoHS
Application:
Home Electronic Appliances
Operating Temperature:
-45-80℃
Outer Dimensions:
30.1*16*7mm
Shipping:
By DHL, TNT, UPS, EMS, Etc.
Digits:
3
Life Span:
100000hours
Color:
Ultra Bright Red
Oem:
Yes
Name:
4 Digit 7 Segment Display
Usage:
Indoor/Outdoor
Packaging Details:
EPE+CARTON
Supply Ability:
50000 PCS/Day
Highlight:

0.4 Inch 7 Segment LED Display

,

Triple Digit 7 Segment LED Display

Product Description

Absolute Maximum Ratings(Ta=25ºC)​

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature(3 sec) Th 260 ºC


Code:Ultra Bright Red -UR

Parameter

Symbol

Condition

Min

Typ

Max

Unit

Forward Voltage

Vf

If=10mA

1.8



2.2

V

Reverse Voltage

Vr

Ir=10uA

5





V

Luminous Intensity

Iv

If=10mA

80



100

mcd

Spectrum With Of Half Value

△λ

If=10mA



20



nm

Wavelength

Dλ

If=10mA

625



635

nm


Product Feature:

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Meet RoHS/REACH compliant


Applications:

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on

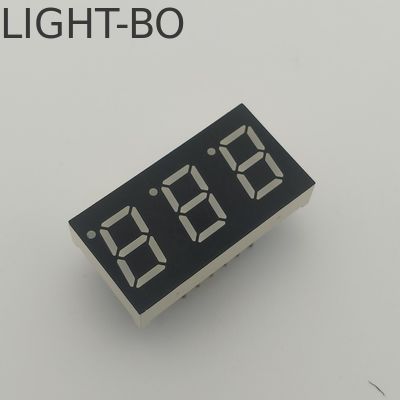

0.4 Inch Ultra Bright Red 7 Segment LED Display Triple Digit Common Anode 0

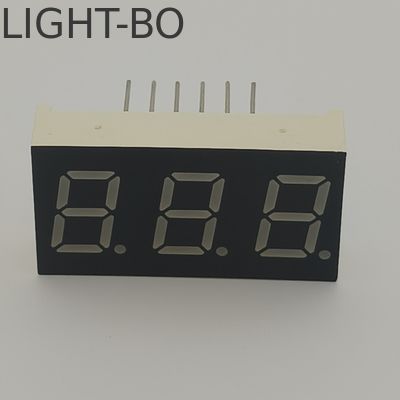

0.4 Inch Ultra Bright Red 7 Segment LED Display Triple Digit Common Anode 1

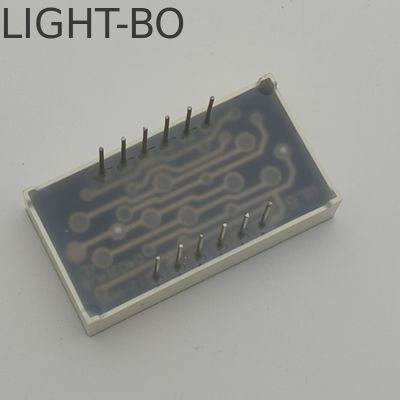

0.4 Inch Ultra Bright Red 7 Segment LED Display Triple Digit Common Anode 2



Tags:

low power 7 segment display

seven segment led display

7 segment numeric display
