0.56inch Dual Digit Common Anode 7-Segment LED Display Yellow Green

name

0.56inch Dual Digit Common Anode 7-Segment LED Display Yellow Green

Brand Name: LIGHT-BO
Model Number: LB20561IJ8B
MOQ: 1000
Price: Negotiate
Payment Terms: T/T,Western Union
Supply Ability: 50000 PCS/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO9001&RoHS
Usage:
Indoor
Outer Dimension:
25*19*8mm
Display Function:
Numeral 0-9
Brightness:
High Brightness
Product Name:
7 Segment Led Display
Application:
Household Appliances
Operating Temperature:
-45-80℃
Life Span:
100000hours
Emitting Color:
Blue,yellow,green,white,red
Oem:
Yes
Packaging Details:
EPE+carton
Supply Ability:
50000 PCS/Day
Highlight:

Dual Digit 7 Segment LED Display

,

0.56inch 7 Segment LED Display

,

Yellow Green 7 Segment LED Display

Product Description

0.56inch Dual Digit Common Anode 7-Segment LED Display Yellow Green

  • Customized dual digit 7 segment led display

  • Outer dimensions: 25*19*8mm

  • Yellow segments black surface

  • X / Y : 0.29-0.31

  • Luminous intensity: 120-140mcd

  • Forward voltage: 2.8-3.2V/led

  • Foward current:5-10mA/led

  • HV forward voltage enables high-intensity output

  • Industry-leading power efficiency

  • Laboratory-verified luminous uniformity

  • IC Compatible

  • Meet RoHS Compliant

Absolute Maximum Ratings(Ta=25ºC)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature(≤3 seconds) Th 260 ºC


Code:Yellow Green- J

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.4 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensity Iv If=10mA 30
40 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 569
574 nm


APPLICATIONS:

Professional audio systems and control panels

Consumer electronics and household appliances

Alphanumeric display solutions

Digital media and entertainment devices

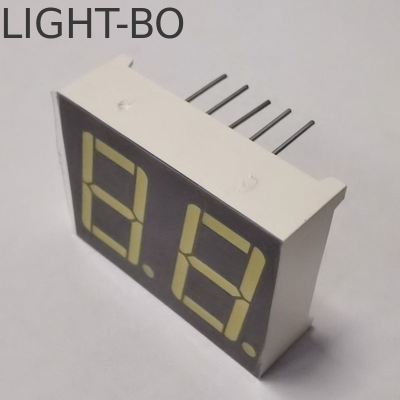

0.56inch Dual Digit Common Anode 7-Segment LED Display Yellow Green 0

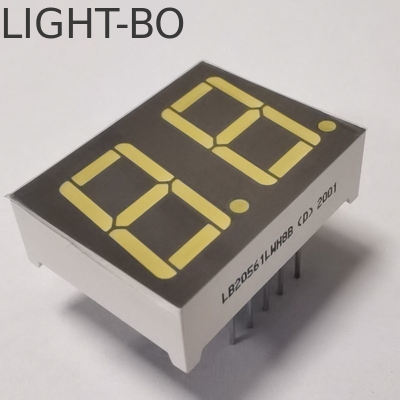

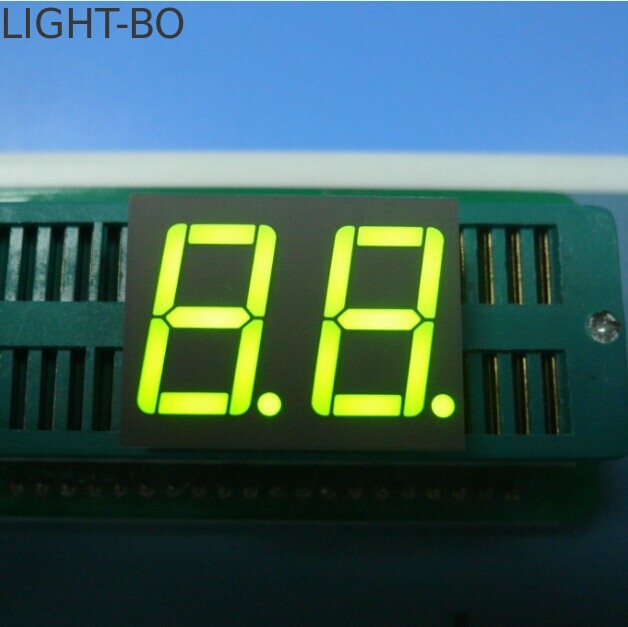

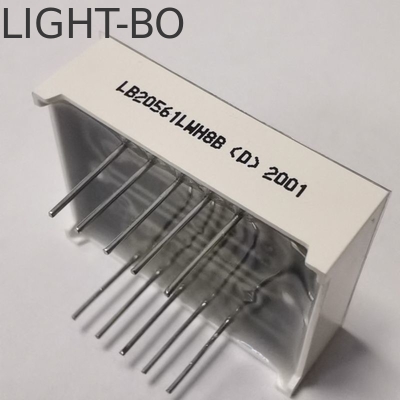

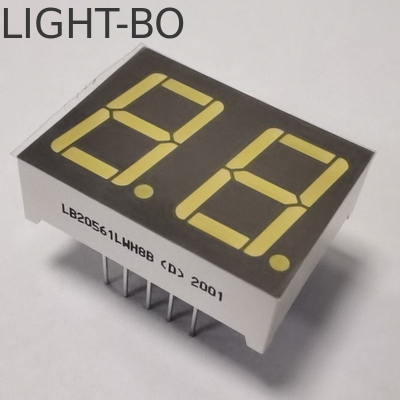

0.56inch Dual Digit Common Anode 7-Segment LED Display Yellow Green 10.56inch Dual Digit Common Anode 7-Segment LED Display Yellow Green 20.56inch Dual Digit Common Anode 7-Segment LED Display Yellow Green 3
