products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
7 Segment LED Display
Created with Pixso.

0.56inch Dual Digit 7-Segment LED Display Common Cathode Yellow Color

name

0.56inch Dual Digit 7-Segment LED Display Common Cathode Yellow Color

Brand Name: LIGHT-BO
Model Number: LB20561LJ8B
MOQ: 1000
Price: Negotiate
Payment Terms: T/T,Western Union
Supply Ability: 50000 PCS/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO9001&RoHS
Display Function:
Numeral 0-9
Color:
Yellow
Application:
Household Appliances
Operating Temperature:
-45-80℃
Life Span:
Over 50000 Hours
Oem:
Yes
Packaging Details:
EPE+carton
Supply Ability:
50000 PCS/Day
Highlight:

Yellow Color 7 Segment LED Display

,

0.56inch 7 Segment LED Display

,

Common Cathode 7 Segment LED Display

Product Description

0.56inch Dual Digit 7-Segment LED Display Common Cathode Yellow Color

  • Customized dual digit 7 segment led display

  • Outer dimensions: 25*19*8mm

  • Yellow segments black surface

  • X / Y : 0.29-0.31

  • Brightness: 120-140mcd

  • Voltage: 2.8-3.2V/led

  • Current:5-10mA/led

  • Wide viewing angle

  • Continuous uniform segments

  • Long lifespan

  • Fast heat-dissipation

  • IC Compatible

  • Easy assembly

  • Meet RoHS Compliant

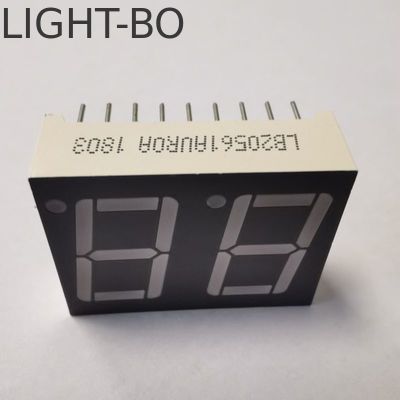

0.56inch Dual Digit 7-Segment LED Display Common Cathode Yellow Color 0

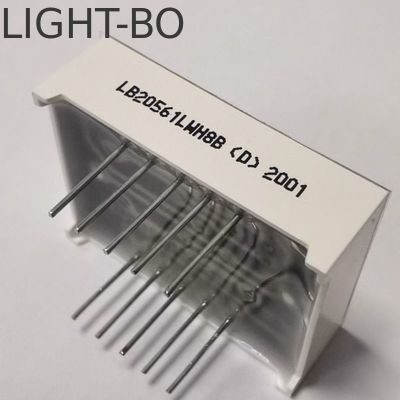

0.56inch Dual Digit 7-Segment LED Display Common Cathode Yellow Color 1

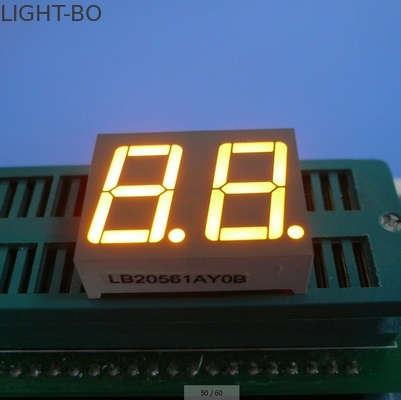

0.56inch Dual Digit 7-Segment LED Display Common Cathode Yellow Color 2

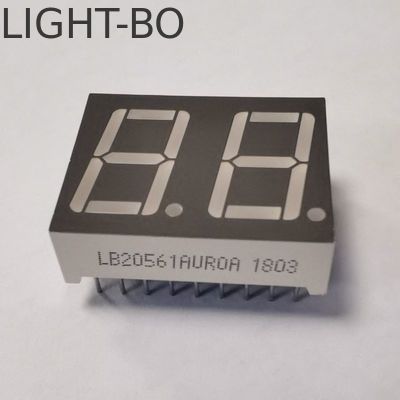

0.56inch Dual Digit 7-Segment LED Display Common Cathode Yellow Color 3

0.56inch Dual Digit 7-Segment LED Display Common Cathode Yellow Color 4


Absolute Maximum Ratings(Ta=25ºC)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature(≤3 seconds) Th 260 ºC


Code:Amber/Yellow -Y

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.5 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensity Iv If=10mA 60
80 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 585
595 nm


APPLICATIONS:

Studio-grade audio equipment & instrument clusters

Smart home electronic devices

High-visibility numeric readouts

Comprehensive monitoring solutions for industrial/commercial applications and so on
