products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
7 Segment LED Display
Created with Pixso.

Common Anode Amber Color 7-Segment LED Display 0.56inch Dual Digit

name

Common Anode Amber Color 7-Segment LED Display 0.56inch Dual Digit

Brand Name: LIGHT-BO
Model Number: LB20561IY8B
MOQ: 1000
Price: Negotiate
Payment Terms: T/T,Western Union
Supply Ability: 50000 PCS/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO9001&RoHS
Usage:
Indoor,Outdoor
Display Function:
Numeral 0-9
Application:
Office Electronic Equipment,Household Appliances,etc.,Outdoor Advertising Led,Indoor Advertising
Operating Temperature:
-45-80℃
Emitting Color:
Blue,yellow,green,white,red
Oem:
Yes
Packaging Details:
EPE+carton
Supply Ability:
50000 PCS/Day
Highlight:

Dual Digit 7 Segment LED Display

,

Common Anode 7 Segment LED Display

,

0.56inch 7 Segment LED Display

Product Description

Common Anode Amber Color 7-Segment LED Display 0.56inch Dual Digit

  • Customized dual digit 7 segment led display

  • Outer dimensions: 25*19*8mm

  • Digit height:14.2mm ( 0.56inch)

  • Polarity:Common anode

  • Yellow  segments black surface

  • Emitting color : Amber

  •  X / Y : 0.29-0.31

  • Luminous intensity: 120-140mcd

  • Forward voltage: 2.8-3.2V/led

  • Foward current:5-10mA/led

  • Laboratory-verified luminous uniformity

  • Interchangeable with industry-standard packages

  • Superior ambient light rejection technology

  • Fast heat-dissipation

  • IC Compatible

  • Easy assembly

  • Meet RoHS Compliant

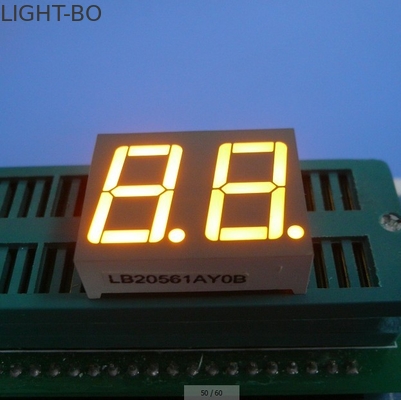

Common Anode Amber Color 7-Segment LED Display 0.56inch Dual Digit 0

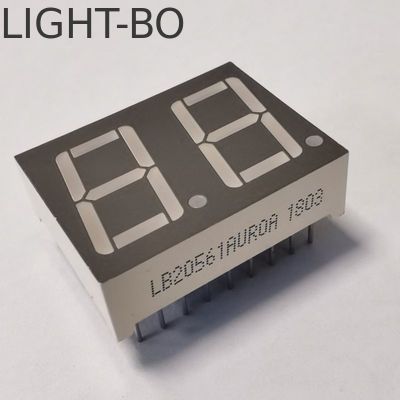

Common Anode Amber Color 7-Segment LED Display 0.56inch Dual Digit 1

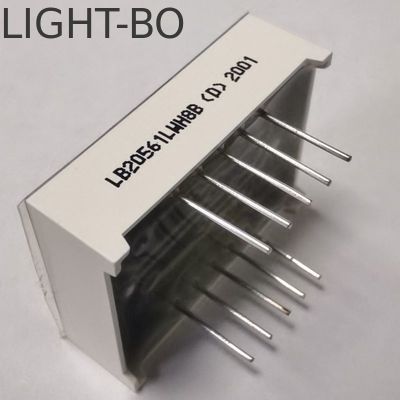

Common Anode Amber Color 7-Segment LED Display 0.56inch Dual Digit 2

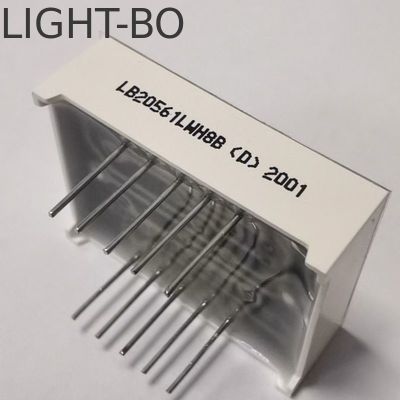

Common Anode Amber Color 7-Segment LED Display 0.56inch Dual Digit 3

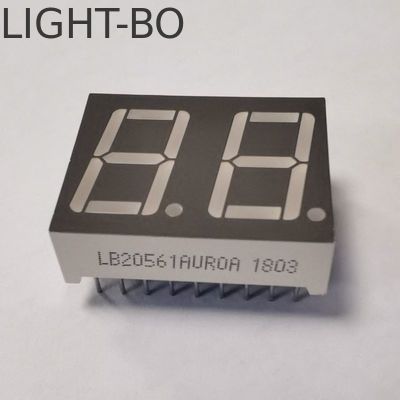

Common Anode Amber Color 7-Segment LED Display 0.56inch Dual Digit 4


Absolute Maximum Ratings(Ta=25ºC)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature(≤3 seconds) Th 260 ºC


Code:Amber/Yellow -Y

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8
2.5 V
Reverse Voltage Vr Ir=10uA 5

V
Luminous Intensity Iv If=10mA 60
80 mcd
Spectrum With Of Half Value △λ If=10mA
20
nm
Wavelength Dλ If=10mA 585
595 nm


APPLICATIONS:

Professional audio systems and control panels

Consumer electronics and household appliances

Alphanumeric display solutions

Digital media and entertainment devices

Universal digital measurement indicators (temperature/humidity/process variables)


Tags:

low power 7 segment display

seven segment led display

7 segment numeric display
