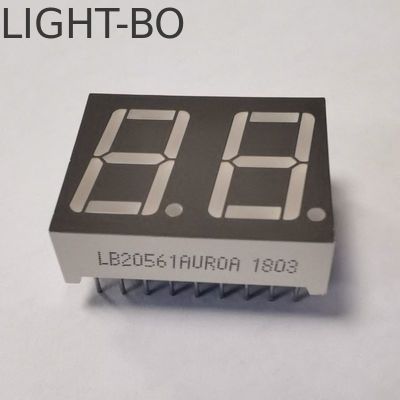

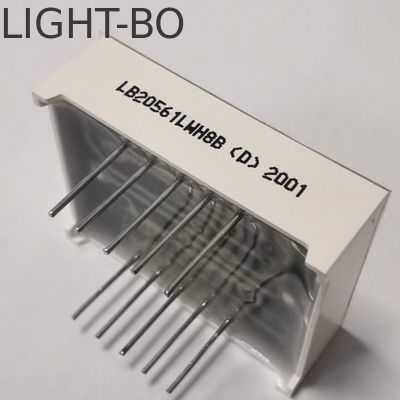

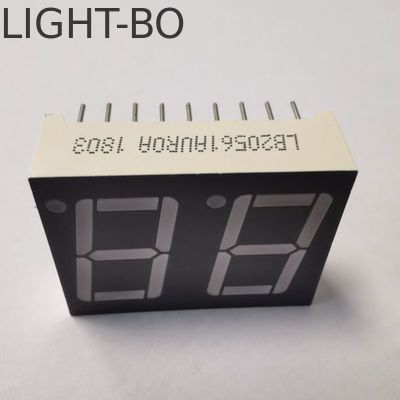

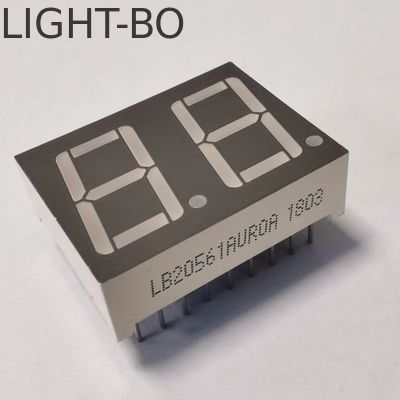

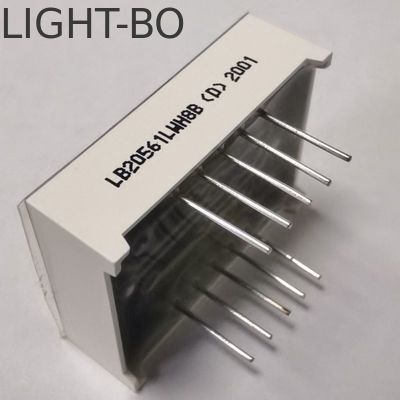

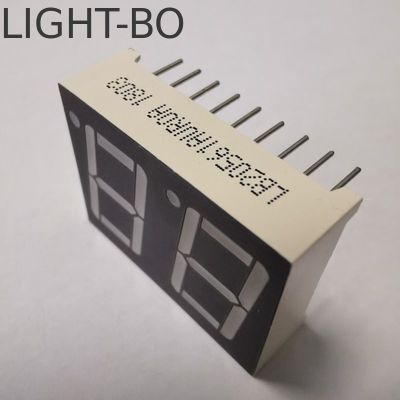

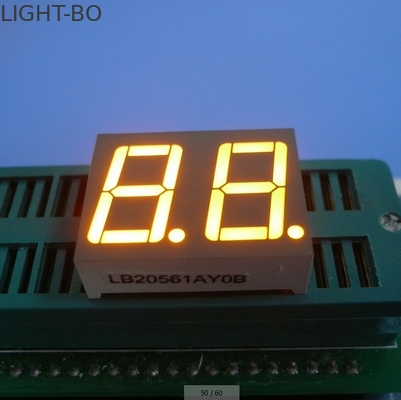

0.56inch Common Cathode 7-Segment LED Display Amber Color Dual Digit

0.56inch Common Cathode 7-Segment LED Display Amber Color Dual Digit

Brand Name:	LIGHT-BO
Model Number:	LB20561LY8B
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Display Function:

Numeral 0-9,temperature

Bright Color:

Amber

Luminous Intensity:

120-140mcd

Product Name:

7 Segment Led Display

Operating Temperature:

40~80 ℃

Life Span:

100000hours

Current:

5-10mA/led

Voltage:

2.8-3.2V/led

Oem:

Yes

Packaging Details:

EPE+carton

Supply Ability:

50000 PCS/Day

Highlight:

Dual Digit 7 Segment LED Display

0.56inch 7 Segment LED Display

Amber Color 7 Segment LED Display

Product Description

Common Anode Amber Color 7-Segment LED Display 0.56inch Dual Digit

Customized dual digit 7 segment led display
Outer dimensions: 25*19*8mm
Yellow segments black surface
Emitting color : Amber
X / Y : 0.29-0.31
High brightness achieved through advanced voltage control
Industry-leading power efficiency (consumption <0.5W typical)
Micro-current technology protects sensitive control circuits
Patent-pending light diffusion for segment-to-segment consistency
IC Compatible
Easy assembly
Meet RoHS Compliant

0.56inch Common Cathode 7-Segment LED Display Amber Color Dual Digit 0

0.56inch Common Cathode 7-Segment LED Display Amber Color Dual Digit 1

0.56inch Common Cathode 7-Segment LED Display Amber Color Dual Digit 2

0.56inch Common Cathode 7-Segment LED Display Amber Color Dual Digit 3

0.56inch Common Cathode 7-Segment LED Display Amber Color Dual Digit 4

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

APPLICATIONS:

• Professional sound systems & vehicle instrument panels
• Kitchen/laundry smart appliance displays
• Financial/transportation numeric information boards
• Digital kiosks and interactive media devices
