0.32-Inch (8.2mm) 7-Segment LED Display, Ultra Bright White, Common Anode for Refrigerator & Home Appliance Controls

0.32-Inch (8.2mm) 7-Segment LED Display, Ultra Bright White, Common Anode for Refrigerator & Home Appliance Controls

Product Description

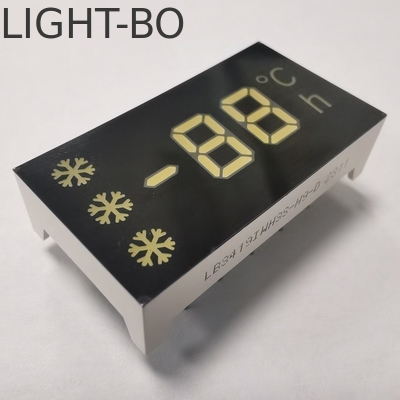

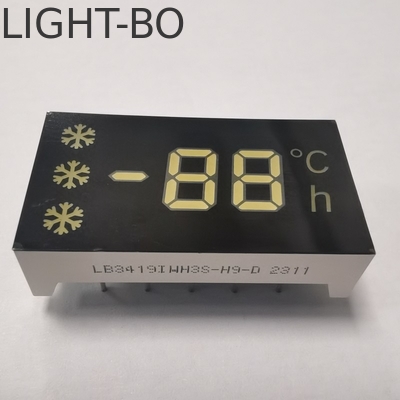

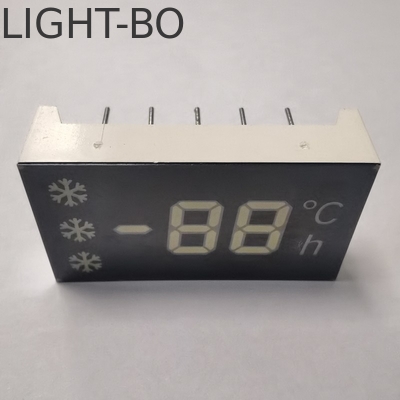

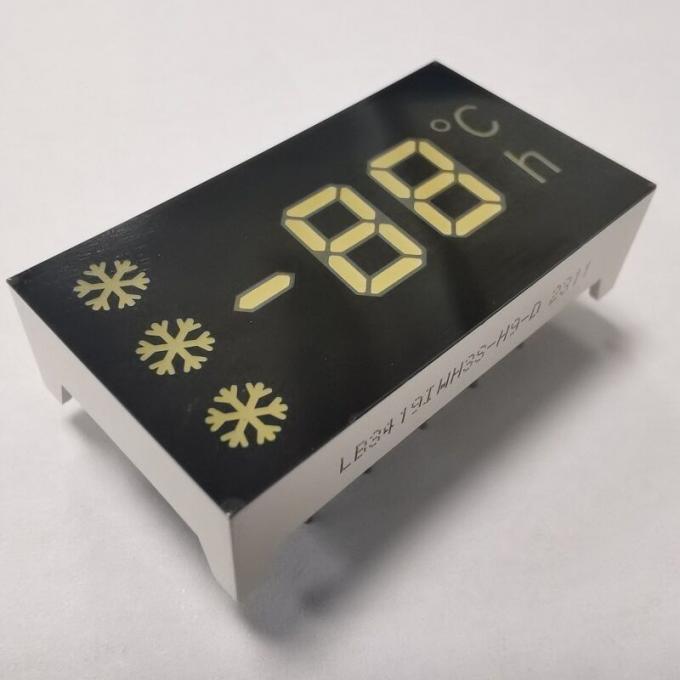

This compact 7-segment LED display is engineered for clear, energy-efficient numeric readouts in home electronic appliances—featuring a 0.32-inch (8.2mm) digit height and space-saving outer dimensions (33.6×18.5×9mm). Configured as common anode for seamless integration into standard appliance circuits, it delivers vivid ultra bright white emission (80-100mcd intensity) through a specialized yellow diffused epoxy + black surface with protective film design. The yellow diffused layer ensures uniform light distribution across segments, while the black surface minimizes glare and the film safeguards against scratches during assembly. Optimized for efficiency (2.8-3.2V/LED forward voltage, 5-10mA/LED forward current) and durability (stable performance, long lifespan), it supports 6 additional emission colors (red, blue, green, amber, yellow, orange) and multi-color customization—making it a versatile solution for refrigerators, cooling/heating controls, and instrument panels.

Product Image

Key Specifications

Detail Image

Core Product Features

1. Optimized Visibility for Appliance Controls

Yellow diffused epoxy: Eliminates "hotspots" across segments, ensuring every digit (0-9) glows uniformly—critical for reading precise values like refrigerator temperature, heating control settings, or digital indicator metrics.

Black surface anti-glare design: Reduces reflection from kitchen lights or sunlight, keeping digits sharp even when viewed from off-center angles.

Ultra bright white emission (80-100mcd): Strikes a balance between visibility and comfort—bright enough to stand out in dim appliance interiors (refrigerator compartments) without being harsh on the eyes.

2. Energy Efficiency for 24/7 Operation

Extremely low current (5-10mA/LED): Minimizes energy draw, making it ideal for appliances that run nonstop (e.g., always-on refrigerator controllers, 24/7 heating/cooling systems). Aligns with eco-friendly appliance standards and reduces long-term electricity costs for users.

2.8-3.2V/LED forward voltage: Compatible with standard power supplies in home electronics, eliminating the need for custom voltage regulators and simplifying circuit design for manufacturers.

3. Durable & Easy to Integrate

Stable performance & long lifespan: Built with high-quality LED chips and durable epoxy to resist temperature fluctuations (critical for refrigerators, which cycle between cool interiors and warm kitchen air) and daily wear—ensuring consistent functionality for years.)

Continuous uniform segments: Maintains brightness consistency over time, avoiding the "fading segments" issue common in low-quality displays—essential for appliances with long service cycles.

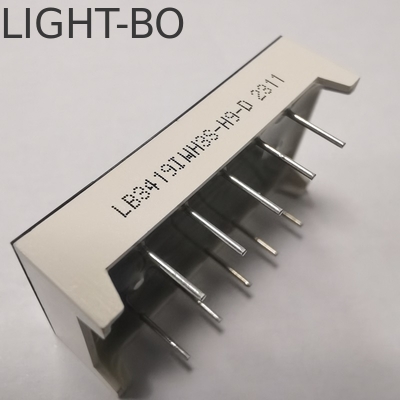

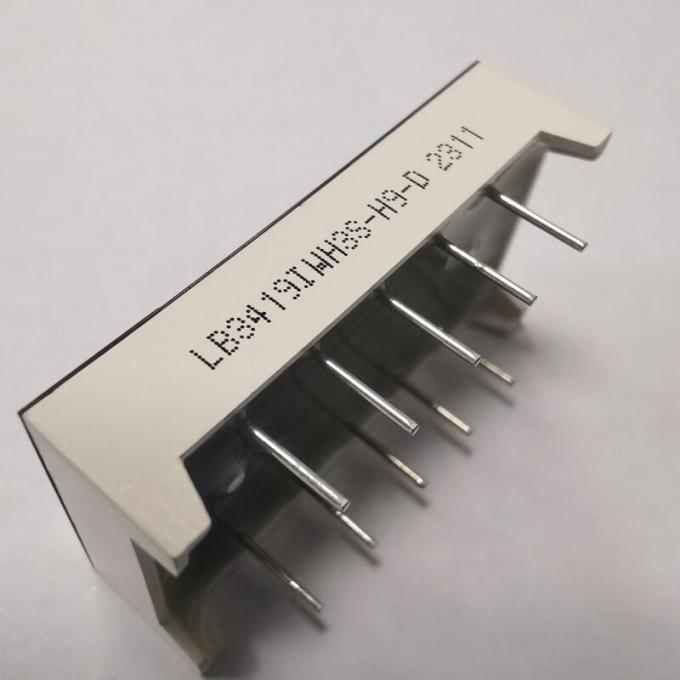

Hassle-free mounting: Designed for direct installation on PCBs and compatibility with standard sockets, with a compact 33.6×18.5×9mm profile that fits into slim appliance control panels (e.g., the front of a refrigerator or the side of a heating unit).

4. Versatility & Compliance

Multi-color & OEM/ODM flexibility: Beyond ultra bright white, 6 additional colors let brands match appliance aesthetics—e.g., red for "error" alerts, green for "normal status", or amber for warm, ambient displays. OEM/ODM support enables customizations for digit size, package dimensions, or brightness, tailored to specific appliance designs.

RoHS Directive-compliant: Free from restricted substances , ensuring compliance with global regulations for home electronics—no barriers to exporting to key markets like the EU, North America, or Asia.

Applications

Tailored for home electronic appliances requiring compact, reliable numeric displays:

Refrigerator Controllers/Indicators: Showing internal temperature, door-open alerts, or ice-making mode status.

Cooling/Heating Controls: Displaying thermostat settings, fan speed levels, or timer durations.

Instrument Panels: Industrial gauges (pressure, humidity) or small home appliance displays (e.g., mini dehumidifiers, portable AC units).

Digital Indicators: Battery chargers, smart sockets, or food thermometers.

• Absolute Maximum Ratings(Ta=25ºC)

  Parameter	Symbol	Ratings	Unit
  Forward Current(per dice)	Ipm	20	mA
  Reverse Voltage(per dice)	Vr	5	V
  Power Dissipation(per dice)	Pm	80	mW
  Operating Temperature Range	Topr	-40~+85	ºC
  Storage Temperature Range	Tstg	-40~+85	ºC
  Solder Temperature(≤3 seconds)	Th	260	ºC



• Code:Yellow Green- J

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	30		40	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	569		574	nm



• Code:Amber/Yellow -Y

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.5	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	585		595	nm



• Code:Orange -F

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	600		605	nm



• Code:Super Bright Red -R

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	50		60	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	630		635	nm



• Code:Ultra Bright Red -UR

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	80		100	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	625		635	nm



• Code:Pure Green -G

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.6		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		180	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	515		525	nm



• Code:Ultra Bright Blue -BH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	460		465	nm

•

• Code:Ultra Bright White -WH

• Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  LED color Temperature	K	If=10mA	5500	20	6800	K
  Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

•

    Shenzhen Guangzhibao Technology Co., Ltd. (Brand: Light-Bo) stablished in 2006 , A company that integrates R & D, manufacturing and sales of optoelectronics LED Displays . ISO 9001 2015 Quality Management Systems certified company . With more than 15 years OEM and ODM experience .
    Light-Bo has been committed to provide high quality and low cost customized solutions to help customers reduce cost and enhance competitiveness.

    7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances,tempearture indicators, humidity indicators, refrigerator controller,thernostats indicator,heating and cooling control and so on.
