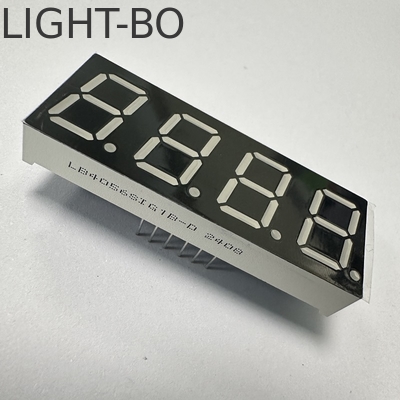

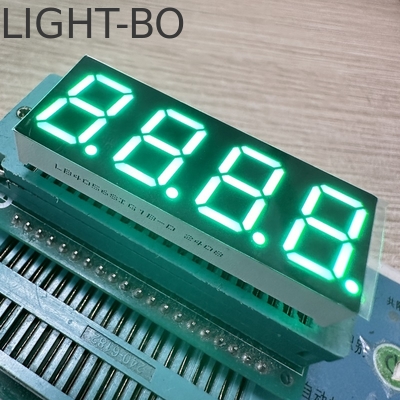

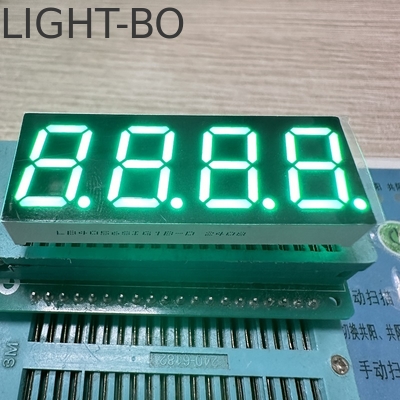

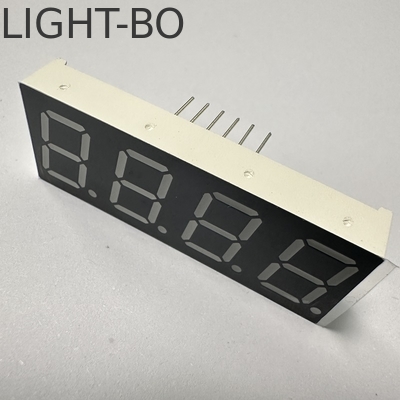

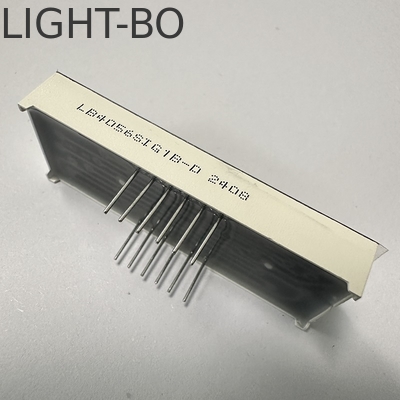

4-Digit 0.56-Inch (14.2mm) 7-Segment LED Display – Pure Green, Common Anode for Instrument Panels & Home Appliances

Name: 4-Digit 0.56-Inch (14.2mm) 7-Segment LED Display – Pure Green, Common Anode for Instrument Panels & Home Appliances
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB4056SIG1B-D
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB4056SIG1B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	20000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Character Height:

14.2mm (0.56 Inch)

Outer Dimensions:

50.3×19.0×8mm

Polarity:

Common Anode

Luminous Intensity:

120-140mcd

Forward Voltage:

2.8-3.2V/LED

Forward Current:

5-10mA/LED

Packaging Details:

EPE+CARTON

Supply Ability:

20000 PCS/Day

Highlight:

4-digit 7-segment LED display

0.56-inch green LED display

common anode LED display

Product Description

Product Overview

This 4-digit 7-segment LED display delivers clear, reliable numeric readouts for instrument panels, home appliances, and digital indicators. Featuring a 0.56-inch (14.2mm) character height and compact dimensions, it offers vivid pure green emission with common anode configuration for seamless circuit integration.

The high-contrast design combines white segments on a black surface to eliminate glare and ensure sharp visibility even in bright ambient light. With luminous intensity of 120-140mcd, it provides bright, consistent illumination while maintaining energy efficiency.

Key Specifications

Specification	Details
Display Type	4-digit 7-segment LED numeric display
Character Height	14.2mm (0.56 inch)
Outer Dimensions	50.3×19.0×8mm
Surface/Segment Design	White segments + black surface
Polarity	Common Anode
Emitting Color	Pure green
Luminous Intensity	120-140mcd
Forward Voltage	2.8-3.2V/LED
Forward Current	5-10mA/LED
Additional Color Options	Red, blue, yellow green, amber, orange, pure white
Compliance	RoHS Compliant

Core Product Features

High Contrast & Vivid Pure Green Emission

White segments on black surface eliminate reflection for clear visibility in any lighting
Vibrant pure green emission is easy on eyes for prolonged viewing
Excellent readability for precise values like temperature, humidity, and channel numbers

Energy Efficiency & Durable Performance

Extremely low current consumption minimizes energy draw
High-quality LED chips ensure stable performance and long lifespan
Consistent brightness for 50,000+ hours, reducing maintenance needs

Easy Integration & Versatility

Common anode polarity matches standard circuit designs
Compatible with common display driver ICs for plug-and-play integration
Compact dimensions and standardized pin layout support easy mounting

Regulatory Compliance & Color Flexibility

RoHS compliant for global market access
Six additional color options available: red, blue, yellow green, amber, orange, pure white

Applications

Instrument Panels: Industrial gauges, automotive auxiliary displays, medical equipment
Home Appliances: Refrigerator temperature controls, microwave timers, electric ovens, induction cookers
Digital Indicators: Temperature/humidity monitors, battery chargers, digital scales
Set-Top Boxes: Channel numbers, signal strength, playback time displays

Technical Parameters

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Electrical Characteristics by Color Code

Yellow Green - J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Pure Green - G

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (Brand: Light-Bo)

Established in 2006, we are an ISO 9001:2015 certified company specializing in R&D, manufacturing, and sales of optoelectronic LED displays. With over 15 years of OEM and ODM experience, Light-Bo provides high-quality, cost-effective customized solutions to help customers reduce costs and enhance competitiveness.

Product Applications

Our product range includes 7 Segment LED Displays, Customized LED Displays, Numeric LED Displays, and Dot Matrix LED Displays, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling controls, and more.

Certifications

Frequently Asked Questions

Are you a trading company or manufacturer?

We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.

What is your main products?

Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

What is your MOQ?

Our MOQ is 1000 pcs, but we also accept sample orders and small orders with quantity less than our MOQ.

Can I get samples for testing?

Yes, we can provide 5-10 free samples for testing, but the freight cost will be borne by the customer.

What is your delivery time?

Delivery time is about 10-20 days, depending on order quantity and raw materials. For urgent orders with available raw materials, we can adjust production to complete within 7-10 days.

How do you ensure product quality?

As ISO 9001 QMS certified manufacturers with over 20 years of experience, we conduct twice 100% testing for all products before shipment.
