Ultra Bright Red 0.8in 7 Segment LED Display

7 Segment LED Display
December 20, 2025
Category Connection: 7 Segment LED Display
Chat Now Contact Us
Tags:
#low power 7 segment display #seven segment led display #7 segment numeric display
Brief: Learn how this solution can streamline typical workflows and improve reliability. In this video, we showcase the Ultra Bright Red 0.8-inch 7 Segment LED Display, demonstrating its clear visibility in bright ambient light, its low power consumption, and its straightforward assembly process for digital indicators in industrial and appliance applications.
Related Product Features:
  • Features a 0.8-inch (20.2mm) character height with an industrial standard outer dimension of 18.6*25*10mm.
  • Employs a common cathode configuration for efficient circuit design and compatibility.
  • Delivers ultra bright red light with a wavelength of 620-625nm and high luminous intensity of 80-100mcd.
  • Operates with a low forward voltage of 1.8-2.2V and a forward current of 5-10mA for energy efficiency.
  • Provides stable performance and a long lifespan with evenly distributed luminous segments on a black surface.
  • Is RoHS certified, ensuring environmental compliance and safety in manufacturing.
  • Designed for easy assembly and is IC compatible for seamless integration into various electronic systems.
  • Ideal for applications in home appliances, temperature indicators, and HVAC controls due to its high reliability.
FAQs:
  • What is the typical forward current and voltage for this LED display?
    The display operates with a forward current of 5-10mA and a forward voltage of 1.8-2.2V, ensuring low power consumption and high efficiency.
  • Is this LED display RoHS certified?
    Yes, this Ultra Bright Red 7 Segment LED Display is RoHS certified, confirming it meets environmental and safety standards.
  • What are the common applications for this 0.8-inch LED display?
    It is widely used in home appliances, temperature and humidity indicators, refrigerator controllers, thermostats, and heating/cooling control systems.
  • What is the luminous intensity and how does it perform in bright light?
    With a luminous intensity of 80-100mcd, this display provides excellent reliability and clear visibility even in bright ambient light conditions.
Related Videos
Pure Green 3 Digit LED Display for Appliances 00:09

Pure Green 3 Digit LED Display for Appliances
7 Segment LED Display
December 20, 2025
Ultra Bright White 7 Segment LED Display 3 Digit 00:09

Ultra Bright White 7 Segment LED Display 3 Digit
7 Segment LED Display
December 20, 2025
Bright Red 0.39 Inch 7 Segment LED Display 00:09

Bright Red 0.39 Inch 7 Segment LED Display
7 Segment LED Display
December 20, 2025
Triple Digit Multicolor 7 Segment LED Display Common Cathode for Refrigerator Control 00:27

Triple Digit Multicolor 7 Segment LED Display Common Cathode for Refrigerator Control
Temperature Control LED Display
December 12, 2025

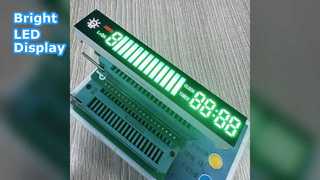

Bright Green Red 7 Segment LED Display 00:06
