0.36 Inch 6 Digit White 7 Segment LED Display

7 Segment LED Display
December 20, 2025
Category Connection: 7 Segment LED Display
Chat Now Contact Us
Tags:
#low power 7 segment display #seven segment led display #7 segment numeric display
Brief: This video demonstrates the setup, operation, and key moments during typical use of the 0.36-inch 6-digit white 7-segment LED display. You will see how this high-luminosity, low-current component is mounted on a PCB and integrated into instrument panels, home appliances, and industrial equipment. Learn about its compact dimensions, RoHS compliance, and versatile color options for reliable digital indicators.
Related Product Features:
  • Features a 0.36-inch digit height and compact outer dimensions of 45.8 x 14mm for space-efficient integration.
  • Available in multiple emitting colors including red, blue, yellow green, pure green, pure white, amber, and orange.
  • Common anode polarity and high luminous intensity with low current operation for energy efficiency.
  • RoHS Directive-compliant, ensuring environmental safety and regulatory adherence.
  • Designed for easy mounting on PCBs and compatibility with integrated circuits.
  • Widely used in instrument panels, home appliances, temperature indicators, and industrial equipment.
  • Offers stable performance and continuous uniform segments for clear, reliable digital displays.
  • Suitable for applications like audio equipment, bank exchange rate displays, and LED clocks.
FAQs:
  • What are the typical applications for this 7-segment LED display?
    It is widely used for instrument panels, home appliances, temperature indicators, set-up boxes, audio equipment, bank exchange rate displays, LED clocks, and industrial equipment such as ovens, analytical instruments, and process control systems.
  • What colors are available for this LED display?
    The display is available in multiple emitting colors including red, blue, yellow green, pure green, pure white, amber, and orange, with surface colors in black, gray, or red.
  • Is this product compliant with environmental regulations?
    Yes, this 7-segment LED display is RoHS Directive-compliant, ensuring it meets international standards for hazardous substance restrictions.
  • What are the key electrical characteristics of this display?
    It operates with a forward current of 20mA per dice, reverse voltage of 5V, and features high luminous intensity with low current operation for efficient performance.
Related Videos

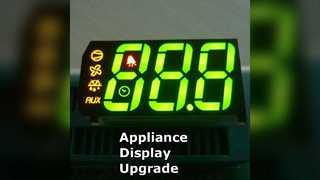

Pure Green 3 Digit LED Display for Appliances 00:09

Pure Green 3 Digit LED Display for Appliances
7 Segment LED Display
December 20, 2025
Ultra Bright White 7 Segment LED Display 3 Digit 00:09

Ultra Bright White 7 Segment LED Display 3 Digit
7 Segment LED Display
December 20, 2025

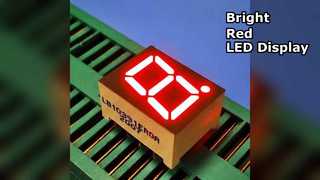

Bright Red 0.39 Inch 7 Segment LED Display 00:09
