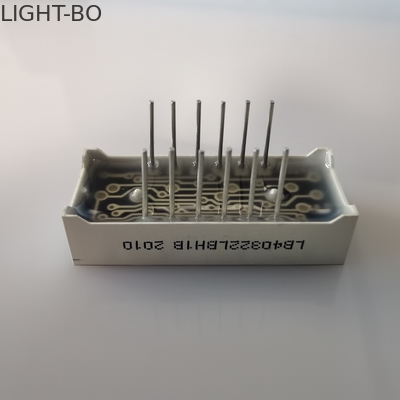

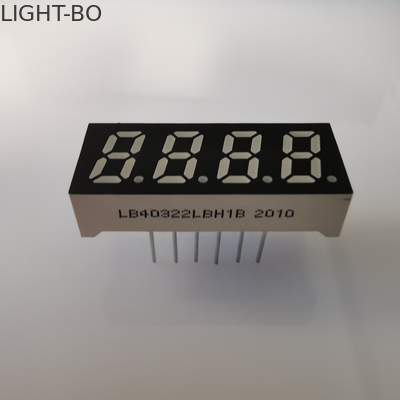

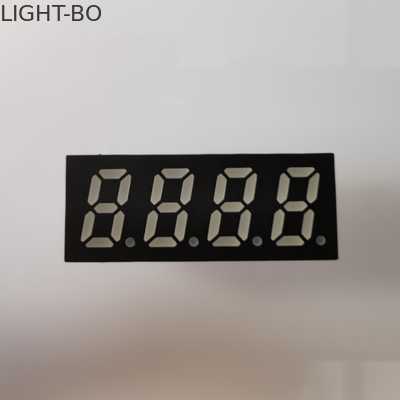

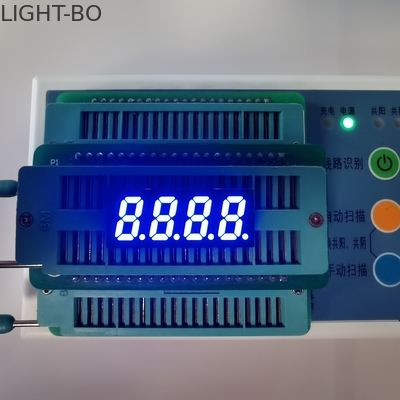

Common Cathode 4 Digit 80mW 0.32" 7 Segment Led Display

Common Cathode 4 Digit 80mW 0.32" 7 Segment Led Display

Brand Name: LIGHTBO
Model Number: LB40322LBH1B
MOQ: 1000PCS
Price: Negotiation
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Outer Dimension:
28 X 11 X 7 Mm
Polarity:
Common Cathode
Digital Height:
0.32 Inch (8mm)
Emitting Colour:
Ultra Bright Blue
Lifespan:
100000hrs
Applications:
Smart Toilet
Packaging Details:
EPE +CARTON
Supply Ability:
50000PCS/Day
Highlight:

0.32" 7 Segment Led Display

,

80mW 7 Segment Led Display

,

Common Cathode 4 Digit Display

Product Description



Common Cathode Four Digit 0.32" Super Bright Blue 7 Segment Led Display



Features:

  • Outer dimensions:28 x 11 x 7 mm

  • Digit height:0.32 inch (8mm)

  • Common Cathode

  • White segments black surface

  • Emitting color : ultra bright blue



Advantages:

  • High-luminous intensity output

  • High-efficiency

  • Low-power consumption

  • Extremely low-current

  • Luminous evenly distributed on each segment

  • Emitting colors: various colors avaioaboe





Code:Ultra Bright Blue

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.8   3.3 V
Reverse Voltage Vr Ir=10uA 30     V
Luminous Intensty Iv If=20mA   30   mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength If=20mA   473

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260






show:

Common Cathode 4 Digit 80mW 0.32" 7 Segment Led Display 0



Shipping:

Common Cathode 4 Digit 80mW 0.32" 7 Segment Led Display 1



Production:

Common Cathode 4 Digit 80mW 0.32" 7 Segment Led Display 2





FAQ:


1.Is your parts new ?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

2.What is your warranty?

Answer: Within one year after package have been received.

3.How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.

4.Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

5.What is your lead time?

Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
