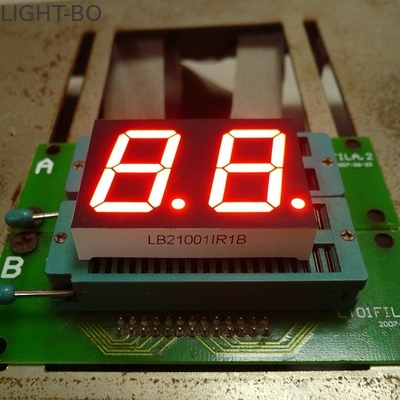

Dual Digit 0.39 Inch Low Power 7 Segment Display Super Red For Home Applications

Dual Digit 0.39 Inch  Low Power 7 Segment Display Super Red For Home Applications
Dual Digit 0.39 Inch  Low Power 7 Segment Display Super Red For Home Applications

Large Image :  Dual Digit 0.39 Inch Low Power 7 Segment Display Super Red For Home Applications Get Best Price

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: LIGHT-BO
Certification: SGS
Model Number: LB20391EC1B

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 50000pcs/day
Detailed Product Description
Digit Height: 10.00mm (0.39") Packing Size: 19.86x12.8 Mm
Polarity: CC/CA Color: Super Red
Service: ODM/OEM Advantage: Long Lifetime
High Light:

seven segment led display

,

low power 7 segment display


Dual Digit 0.39 Inch 7- Segment Led Display For Home Applications

Product Descriptions:

Digital height: 10.00mm (0.39")
Packing size: 19.86x12.8 mm
Polarity: CC/CA
Made with white segments and black surface
Colors: red, blue, green, amber, orange, white and yellow

Product Features:

RoHS Directive-compliant
High luminous intensity output
High-efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Stable performance
Easy assembly
IC Compatible
Long lifespan
OEM and ODM orders are accepted
Excellent design of outer apperance
Strict quality testing before it leave the factory
We have our own production workshop and production facility
We can customize it according to the customer's requirements

Applications:

Widely used in set-top boxes,home appliances and instrument panels,clock displays,digital timers,and numeric displays.

Why choose us?

1. Your inquiry related to our products will be replied in 24 hours.
2. Experienced staffs to answer your inquiries in fluent English.
3. Providing OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order, we will serve you with best quality and best service.
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.
7. If you become our VIP,you will enjoy more preferential policy.
8. If our products have any problem , we will send free in the next  order if it is our mistake.

Absolute Maximum Ratings(Ta=25℃)

ParameterSymbolRatingsUnit
Forward Current(per dice)Ipm20mA
Reverse Voltage(per dice)Vr5V
Power Dissipation(per dice)Pm80mW
Operating Temperature RangeTopr-40~+85
Storage Temperature RangeTstg-40~+85
Solder Temperature(3 sec)Th260


Code:UR(Super Red)


ParameterSymbolConditionMinTypMaxUnit
Forward Voltage(Per dice)VfIf=20mA1.8 2.5V
Reverse Voltage(Per dice)VrIr=10uA5  V
Luminous Intensty(Per dice)IvIf=20mA80 100mcd
Spectrum With Of Half Value△λIf=20mA 20 nm
Wavelength DλIf=20mA622 625nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃
