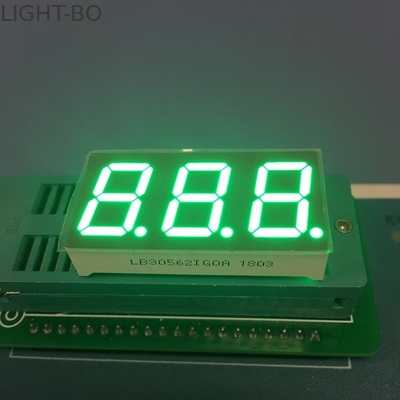

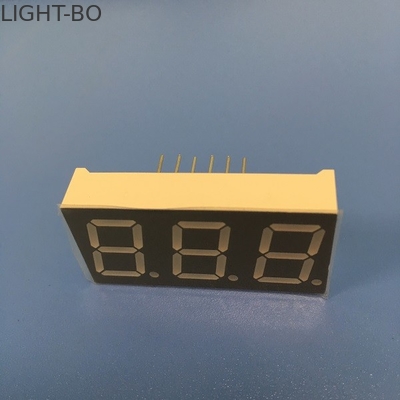

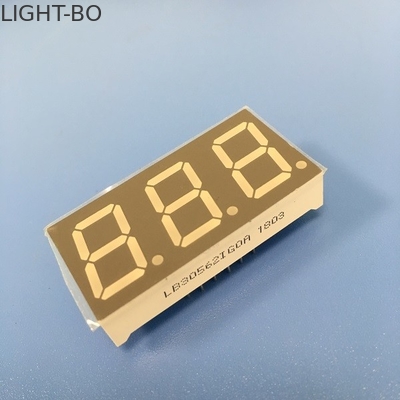

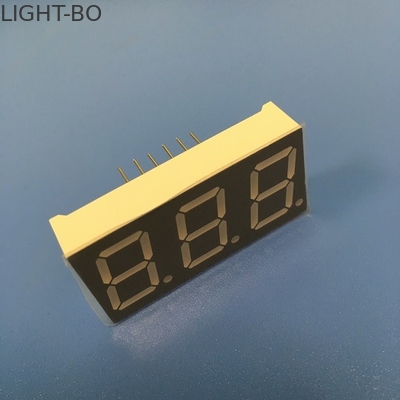

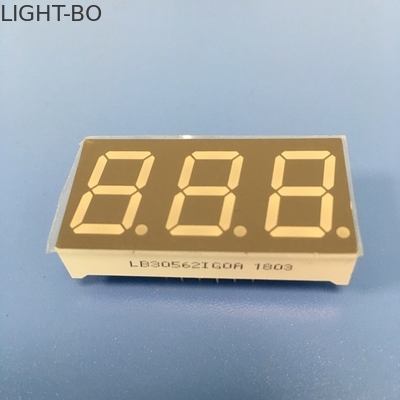

Pure Green 3 Digit Seven Segment LED Display 0.56 " For Instrument Panel

Pure Green 3 Digit Seven Segment LED Display 0.56 " For Instrument Panel

Brand Name: LIGHTBO
Model Number: LB30562IG0A
MOQ: 1000PCS
Price: Negotiable
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Name:
Pure Green 7 - Segment LED Display 3 Digit
Feature:
3 Digit 14.2mm
Service:
OEM / ODM
Color:
Pure Green
Usage:
Air Heating And Cooling Conrol
Advantage:
Small And Light, Easy Assembly
Packaging Details:
EPE+CARTON
Supply Ability:
50000PCS/Day
Highlight:

seven segment led display

,

low power 7 segment display

Product Description



Pure Green 0.56" common anode 7 - Segment LED Display 3 Digit Instrument Panel

Quick details





  • 3 digit 7-Segment LED Display
  •  height: 14.2mm
  • 37.6 x 19  x 8 mmm
  • for air heating and cooling conrol
  • pure green
  •  Wavelegnth:520-525nm
  • Luminous intensity: 140-160mcd
  • Forward voltage: 2.8-3.3v/led
  • Forward current:10-15mA/led





Pure Green 3 Digit Seven Segment LED Display 0.56 "  For Instrument Panel 0





Description:



1. Emitte lights under the condition of low voltage and small current drive; can be compatible with CMOS, ITL circuit;

2. Short response time when emitt lights (<0.1uS), excellent monochromaticity and high-frequency, big viewing angle, standard brightness, low power consumption, stable performance;

3. Small and light, easy assembly, anti-aging, anti-dust, anti-moisture, shock resistence;

4. Fast heat-dissipation, long lifespan, more than 10,000 hours, even up to 100,000 hours, low cost;

5. OEM / ODM is hot welcome to improve customers competitive advantages;

6. Character height are available from 6.2mm (0.25") to 500.00mm(20");

7. Various Colours available.





Specifications:



  1. Wide viewing angle;
  2. High limunous intensity and reliability;
  3. Low current operation ;
  4. Low power consumption;
  5. Fast heat dissipation;
  6. Stable performance;
  7. Continuous uniform segments;
  8. Small and light, easy monutingon the PCBor sockets;
  9. Various colours and character height available;
  10. Long lifespan;
  11. Meet RoHS.





Competitive Advantage:



1. Stable quality;

2. Prompt delovery;

3. Long lifespan;

4. Cost competitive;

5. Excellent pre-sale and after sale service;

6. No MOQ;

7. Various colours available;

8. OEM / ODM acceptable .
