| Brand Name: | LIGHTBO |
| Model Number: | LB10804AWH3B |
| MOQ: | 1000PCS |
| Payment Terms: | TT in advance& Western Union |
| Supply Ability: | 50000PCS/Day |

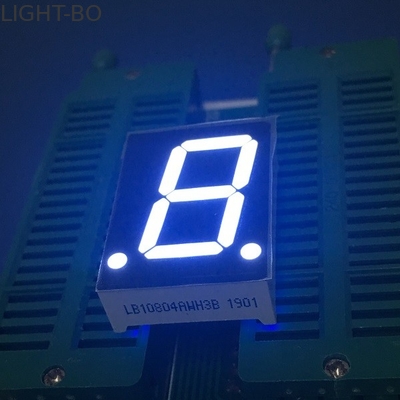

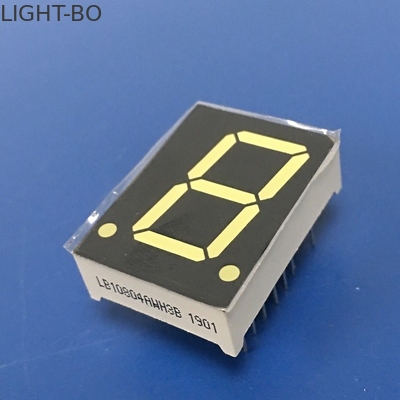

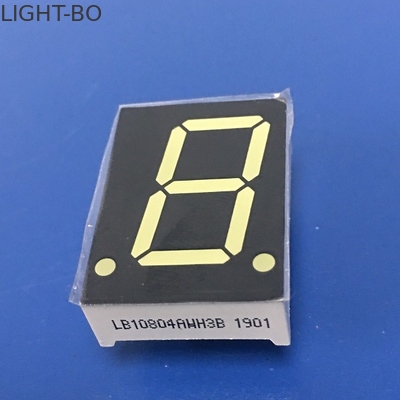

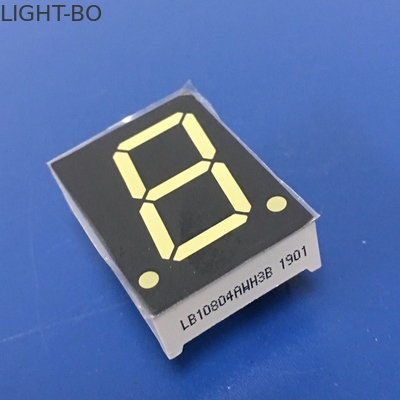

Ultra white 0.8inch Single Digit 7 Segment LED Display common anode for Instrument Panel
Key Specifications/Special Features:
Character height: 0.8-inch (20.4mm)
Outer dimensions: 20 x 27.7 x 10mm
Common anode
Ultra bright white
X/Y:0.29-0.31
Luminous intensity: 100-120mcd
VF:2.8-3.3V
Forward current: 10-15mA/LED
Surface color: black
Epoxy colour: yellow diffused
RoHS certified
Forward voltage (high luminous intensity output)
High-efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Industrial standard size
Provide excellent reliability in bright ambient light
Made with white segments and black surface
Stable performance
Long lifespan
Easy assembly
IC Compatible
Applications: audio equipments or instrument panels, elevator position indicators, rate screens,home appliances,digital indicators and so on .
