Common Anode 2 Digit 14 Segment Led Display 0 .54 Inch Super Bright Color Durable

Name: Common Anode 2 Digit 14 Segment Led Display 0 .54 Inch Super Bright Color Durable
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB20541IJ1B
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHTBO
Model Number:	LB20541IJ1B
MOQ:	1000PCS
Price:	negotiable
Payment Terms:	TT in advance& Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&SGS&ISO

Model No:

LB20541IJ1B

Character Height:

0.54 Inches (13.8mm)

Outer Dimensions:

25.2 X 21.1 X 7.8 Mm

Polarity:

Common Anode

Colour:

Super Bright Green

Characteristic:

High Qulity With Reasonable Price

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Day

Highlight:

14 seg display

led 14 segment display

Durable 14 Segment Led Display

Product Description

0 .54 Inch Common Anode 14 Segment Led Display 2 Digit Super Bright Green

Product Description:
Character height:0.54 inches (13.8mm)
Outer dimensions:25.2 x 21.1 x 7.8 mm
Polarity:Common Anode
Colour:Super Bright Green
Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+85	℃
Storage Temperature Range	Tstg	-40～+85	℃
Solder Temperature(3 sec)	Th	260	℃

Code:J-Ultra Bright Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=20mA	1.8		2.5	V
Reverse Voltage(Per dice)	Vr	Ir=10uA		5		V
Luminous Intensty(Per dice)	Iv	If=20mA	40		50	mcd
Spectrum With Of Half Value	△	If=20mA		30		nm
Wavelength	D	If=20mA	569		573	nm
Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse	Ifp	70				mA
Operating Temperature Range	Torp	-35℃～+85℃
Storage Temperature Range	Tstg	-35℃～+85℃
SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃
Absolute Maximum Rating at Ta=25℃

Product Feature:
High efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Industrial standard size
Stable performance
Long lifetime
Easy assembly
RoHS directive-compliant
Color: red, green, blue and white
Excellent design of outer appearance
Strict quality testing before it leave the factory
We have our own production workshop and production facility
We can customize it according to the customer's actual requirements

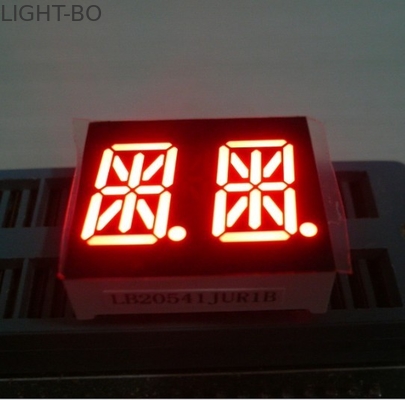

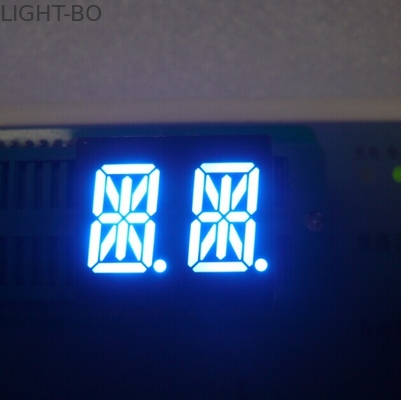

Common Anode 2 Digit 14 Segment Led Display 0 .54 Inch Super Bright Color Durable 0
Application:
Audio equipment or instrument panels
General use for digital indicators
Multimedia products
