Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel

Certification
China Shenzhen Guangzhibao Technology Co., Ltd. certification
China Shenzhen Guangzhibao Technology Co., Ltd. certification
Customer Reviews
Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Dennis

Really good service,delivery arrived today and the displays are perfect! thank you.

—— Tim

We have been using the oven’s display, and the quality is very reliable. Hope we can cooperate for a long time.

—— OKIDA

I'm Online Chat Now

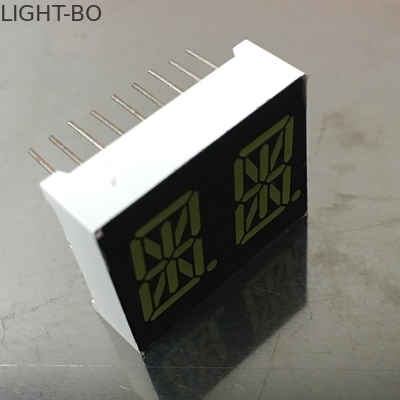

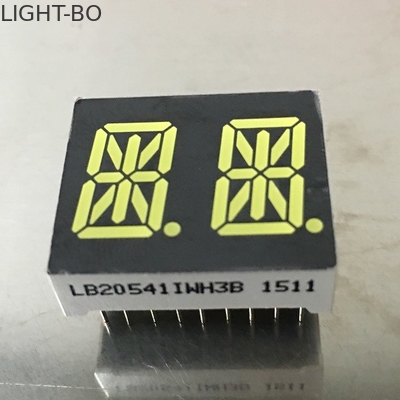

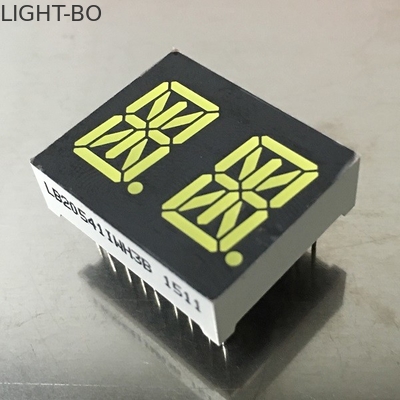

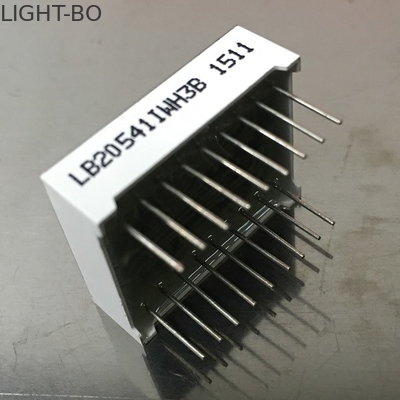

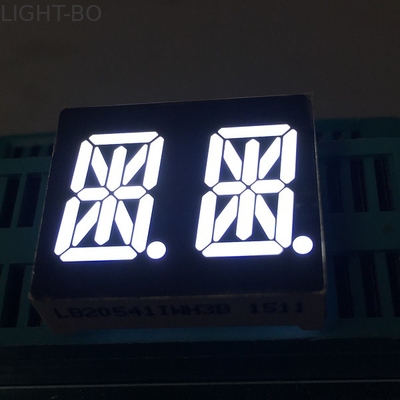

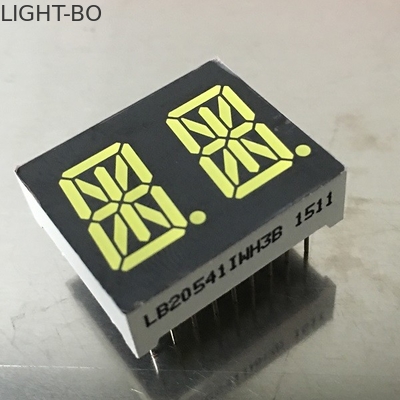

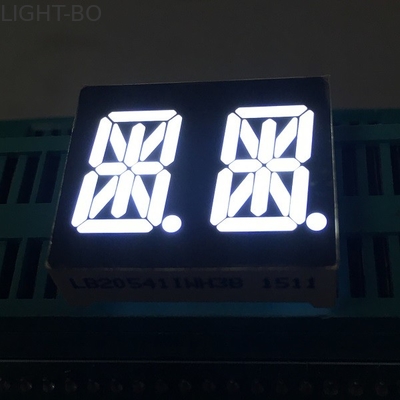

Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel

Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel
Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel
Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel

Large Image :  Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB20541IWH3B
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel

Description
Package Dimensions: 25.2 X 21.1 X 7.8mm Character Height: 0.54 Inches (13.8mm)
Polarity: Common Anode Emitting Colour: Ultra Bright White
High Light:

14 segment display

,

led 14 segment display

Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel



Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel 0

Ultra Bright White 0.54" 14 Segment Led Display Dual Digit common anode For Instrument Panel 1



Product Description:



Outer dimensions: 25.2*21.1*7.8 mm

Digit height: 0.54 inches (13.8mm)

Polarity: common anode

Colour: Ultra bright white

Made with yellow segments black surface

Emitting colors:Available in red, yellow green, pure green, blue and white, amber, orange


Product Feature:



1. High luminous intensity and reliability

2. High efficiency

3. Low power consumption

4. Extremely low current

5. Luminous evenly distributed on each segment

6. Big viewing angle

7. Stable performance

8. Long lifespan

9. Easy assembly

10. IC Compatible and Meet RoHS Compliamt



Application:



Widely used in set-top boxes, home appliances and instrument panels,temperature indicators, humidity indicators,electric meters, digital indicators and so on .

Why choose us?



1. Key raw materials are sourced from the US, Japan and Taiwan area

2. Full-automation ASM,such as automatic dice bonding and wire soldering machines

3. Specializing in the production of full range,full color LED digital tube,especially blue green and white

4. The OEM and ODM experiences has more than 10 years

5. It can be customized that according to customer requirement of varous size and color

6. Before sale and after sale services are good

7. Stable performance,prices is reasonable,delivery time is quickly



We Promise:



1. Your inquiry related to our products or prices will be replied in 24 hours.

2. Experienced staffs to answer all your enquires in fluent English.

3. We are doing the OEM and ODM service for more than 10 years.

4. Protection of your sales area, ideas of design and all your private information.

5. No matter big order or small order , we will provide all the best  quality , best service.

6. Advanced equipments and good materials: ASM machine, good chips and epoxy resin.

7. High brightness and low power consumption .

8. If our products have any problem , we will send free in the next  order if it is our mistake.



Absolute Maximum Ratings(Ta=25℃)



Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260



Code:W-Ultra Bright White



Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 2.8   3.5 V
Reverse Voltage(Per dice) Vr Ir=40uA   5   V
Luminous Intensty(Per dice) Iv If=20mA 100   120 mcd
Chromaticity Coordinates X If=20mA 0.29   0.33 nm
Chromaticity Coordinates Y If=20mA 0.29   0.33 nm
Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse Ifp 100 mA
Operating Temperature Range Torp -35℃~+85℃
Storage Temperature Range Tstg -35℃~+85℃
SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃
Absolute Maximum Rating at Ta=25℃
