Pure Green Black Face Alphanumeric LED Display 2 Digit 13.8mm 14 Segment

Name: Pure Green Black Face Alphanumeric LED Display 2 Digit 13.8mm 14 Segment
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB20541IJ1B
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB20541IJ1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Digit Height:

0.54 Inch

Interface Type:

Common Anode

Storage Temperature:

-40 To 85 Degrees Celsius

Feature:

Fast Heat-dissipation,Low Power

Reverse Voltage:

5 V

Quality:

Industrial High Quality

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

14 Segment Black Face LED Display

Alphanumeric 2 Digit LED Display

14 Segment Alphanumeric LED Display

Product Description

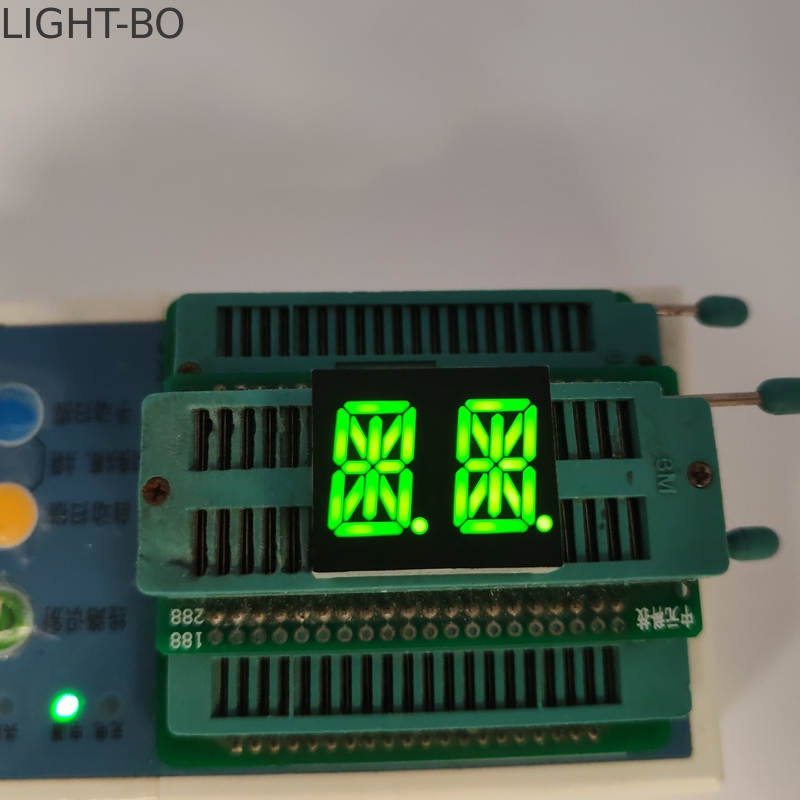

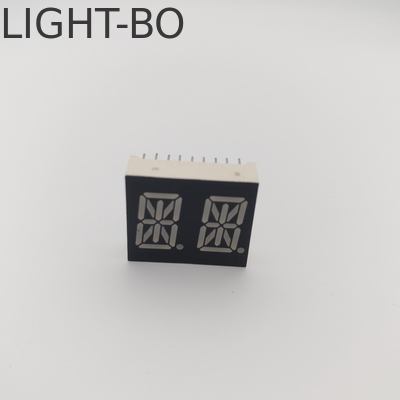

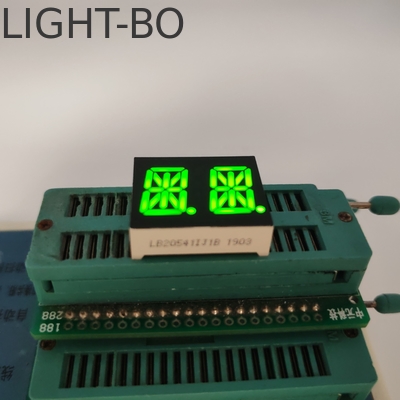

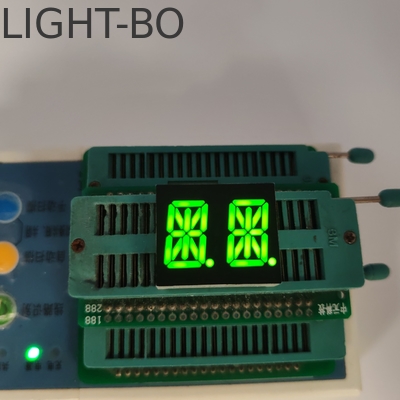

Pure Green Black Face Alphanumeric LED Display

2-digit 13.8mm 14-segment alphanumeric LED display with black face and pure green illumination

Key Specifications

14-segment 0.54-inch 2-digit LED alphanumeric display
Character height: 0.54 inch (13.8mm)
Outer dimensions: 25.2 x 21.1 x 7.8 mm
White segments with black surface
Common anode configuration
Pure Green color (515-525nm)
Luminous intensity: 120-160mcd
Forward voltage: 2.5-3.0V/led
Forward current: 5-10mA/led
Available colors: red, yellow green, pure green, blue, white, amber, orange

Technical Parameters by Color Code

Yellow Green (Code: J/JU)

Vibrant yellow green display option with optimized performance characteristics

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Warm amber/yellow hue providing excellent visibility and attention-grabbing characteristics

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Energetic orange color offering high visibility and visual impact

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

High-intensity red display for maximum attention and visibility

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Maximum brightness red option for superior visibility in all conditions

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Crisp green illumination ideal for eco-friendly designs and applications

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Vibrant blue display with modern aesthetic appeal

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Pristine white illumination for superior clarity and elegant display

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Performance specifications ensuring reliability under demanding conditions

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leading provider of OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we deliver innovative, high-quality LED display solutions with competitive pricing and reliable performance.

Applications

Our LED displays are engineered for integration into various applications including household appliances, temperature and humidity displays, refrigerator controllers, thermostats, and HVAC systems. The product range includes 7 Segment LED Displays, Dot Matrix LED Displays, Customized LED Displays, and Numeric LED Displays.

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are original manufacturers with more than 20 years experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, and LED Backlights.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces, but we accept sample orders and small quantities below MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes, we provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: What is your delivery time?

A: Standard delivery is 10-20 days. Urgent orders with available materials can be ready in 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts.

Q7: Can you provide FOB prices?

A: Yes, we quote prices based on EXW, FOB, CIF, and DDP incoterms.

Q8: How can I get your catalog and price list?

A: Please provide your email address or contact us directly through our website.

Q9: Can I negotiate prices?

A: Yes, we consider discounts for bulk orders.

Q10: How much are shipping charges?

A: Shipping costs depend on shipment size and method. We provide quotes upon request.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available for custom sizes, LED colors, and functional icons.

Q12: Will my custom design remain confidential?

A: Yes, we will not share or sell your design to others without authorization.

Q13: What is the lead time for custom product samples?

A: Custom samples require 20-25 working days after receiving mold cost and design approval.

Q14: What shipping methods do you use?

A: We ship via DHL, FEDEX, UPS, EMS, air, and sea freight.

Q15: How do you ensure product quality?

A: As ISO 9001 certified manufacturers with over 20 years experience, we conduct 100% testing of all products before shipment.
