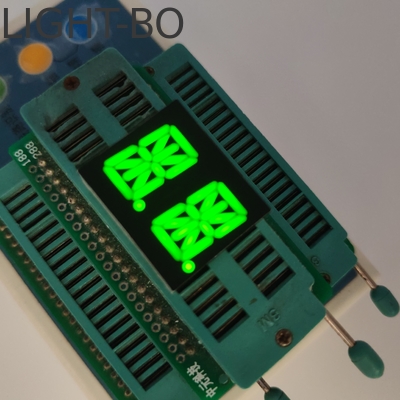

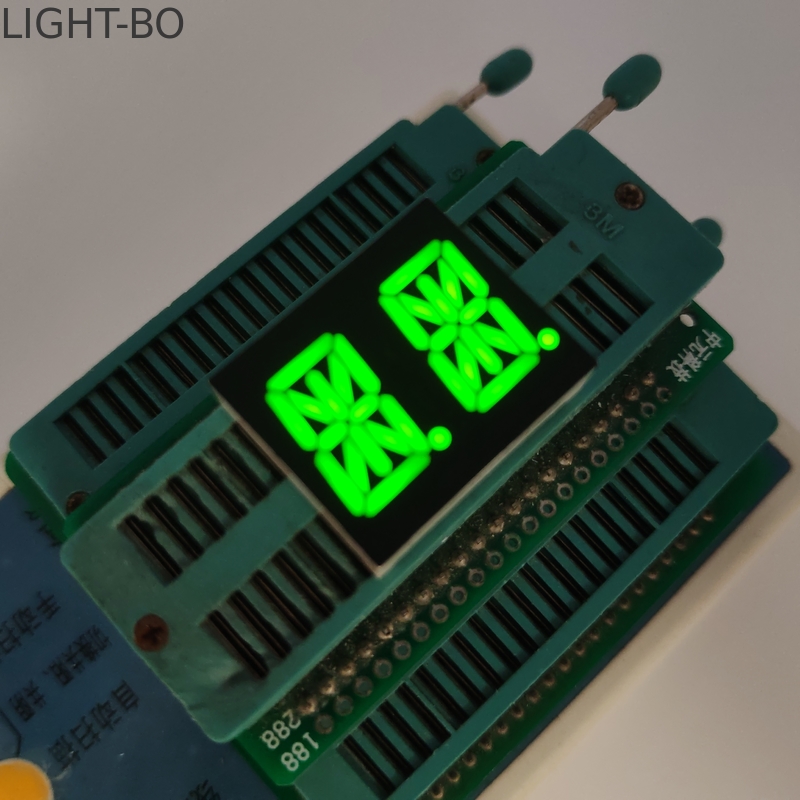

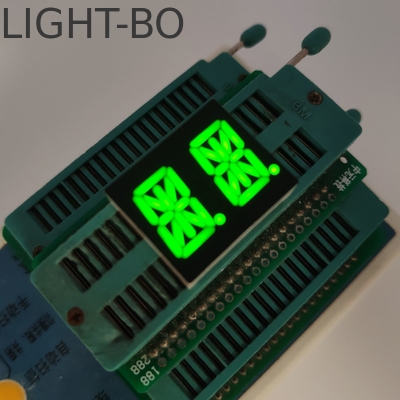

Common Cathode Alphanumeric LED Display 2 Digit 13.8mm 14 Segment

Name: Common Cathode Alphanumeric LED Display 2 Digit 13.8mm 14 Segment
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB20541LJ1B
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB20541LJ1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Digit Height:

13.8MM

Interface Type:

Common Cathode

Storage Temperature:

-40 To 85 Degrees Celsius

Feature:

Fast Heat-dissipation,Low Power

Reverse Voltage:

Quality:

Industrial High Quality

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

2 Digit 14 Segment LED Display

13.8mm 14 Segment LED Display

Common Cathode 14 Segment LED Display

Product Description

Common Cathode Alphanumeric LED Display 2 Digit 13.8mm 14 Segment

High-performance 2-digit alphanumeric LED display featuring 14 segments per character with common cathode configuration and multiple color options.

Technical Specifications

Character Height	0.54" (13.8 mm)
Outer Dimensions (L × W × H)	25.2 × 21.1 × 7.8 mm
Segment/Surface Color	White segments, black surface
Circuit Configuration	Common Cathode
Emission Color (Specific)	Pure Green
Peak Wavelength	515-525 nm
Luminous Intensity	120-160 mcd
Forward Voltage (per LED)	2.5-3.0 V
Forward Current (per LED)	5-10 mA
Other Available Colors	Red, Yellow-Green, Blue, White, Amber, Orange

Detailed Color Specifications

Yellow Green - J/JU

Transform your displays with vibrant yellow-green color, designed to fulfill specific design visions and enhance visual aesthetics.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Craft displays that captivate with this warm hue, radiating a cozy glow that draws attention.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F

Inject your displays with energy using vibrant orange hue, ensuring attraction with both flair and vigor.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

Immerse your displays in captivating red glow, ideal for commanding attention and leaving lasting impressions.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR

Enhance display impact with intensely luminous red, offering unparalleled visibility and commanding presence.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Opt for refreshing crisp green to align with eco-friendly designs, delivering natural and revitalizing appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH

Revitalize displays with vibrant cool blue, infusing refreshing contemporary aesthetic that enriches any environment.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH

Achieve unrivaled clarity and elegance with pristine white, elevating display brilliance and sophisticated appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25 ºC)

Advanced performance features showcasing state-of-the-art LED display technology capabilities.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) stands as a paragon of excellence in OEM and ODM solutions since 2006. With ISO 9001:2015 certification, our rich history of over 15 years highlights our unwavering commitment to innovation and superior quality.

LIGHTBO enriches its clients with top-tier, cost-efficient custom solutions, not only slashing costs but also boosting competitive edges in the global arena.

Product Applications

Explore innovative design with our cutting-edge 7 Segment LED Display, Customized LED Display, Numeric LED Display, and Dot Matrix LED Display. These exceptional displays integrate flawlessly into diverse applications, enhancing both functionality and aesthetic appeal.

Whether upgrading household appliances for modern touch, providing precise temperature and humidity readings, or developing advanced solutions for refrigerator controllers, thermostats, and HVAC systems, our products deliver superior performance and unparalleled quality.
