Alphanumeric LED Display
Created with Pixso.

7 Segment 4 Digit Alphanumeric LED Display High Brightness For Instrument Panel

name

7 Segment 4 Digit Alphanumeric LED Display High Brightness For Instrument Panel

Brand Name: LIGHTBO
Model Number: LB40543IC1B
MOQ: 1000PCS
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Screen Dimension:
Customized Size
Tube Chip Color:
Full Color
Usage:
Indoor,Outdoor
Display Function:
Graphics
Brightness:
High Brightness
Life Span:
100000hours
Packaging Details:
EPE+CARTON
Supply Ability:
50000PCS/Day
Highlight:

surface mount 7 segment display

,

alpha numeric led display

Product Description



Alphanumeric LED Display , 4 Digit 7 Segment Led Display Bright Red For Instrument Panel

LB30401-L-I.pdf



Quick Details:



  • 14 Segment LED Display

  • 4-digit Aphanumeric

  • Charcter height: 0.54" (13.8mm)

  • Siz: 48 x 20 x 15.5mm

  • Common anode /cathode

  • High Bright Red

  • Fo instrument panel, digital indicator

  • Excellent design of outer appearance

  • Strict quality testing before it leave the factory

  • We have our own production workshop and production facility

  • We can customize it according to the customer's requirements





Key Specifications/Special Features:



  • Features:

    •

      14-segment 0.54-inch 4-digit LED alphanumeric display

    • Character height: 0.54 inch (13.8mm)

    • Outer dimensions: 48 x 20 x 15.5 mm

      • Colour: Ultra bright red

      • Wavelength: 625-630nm

      • Luminous intensity : 80-100 mcd

      • Forward Voltage: 1.8-2.2V

      • High efficiency

      • Low power consumption

      • Extremely low current

      • Luminous evenly distributed on each segment

      • Industrial standard size

      • Stable performance

      • Long lifetime

      • Easy assembly

      • Provides excellent reliability in bright ambient light

      • Made with white segments and black surface

      • Common anode

      • RoHS directive-compliant

      • Emitting Color:available in red, green, blue ,.amber, orange and white





  • Applications:

    • Audio equipment or instrument panels

    • General use for digital indicators

    • Multimedia products

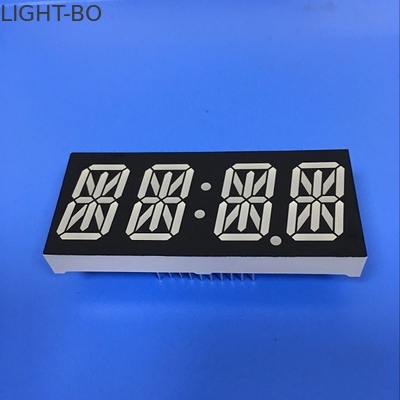

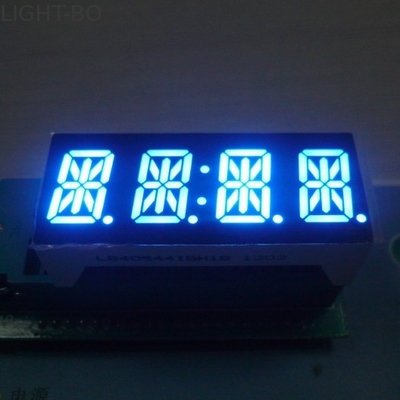

7 Segment 4 Digit Alphanumeric LED Display High Brightness For Instrument Panel 07 Segment 4 Digit Alphanumeric LED Display High Brightness For Instrument Panel 1

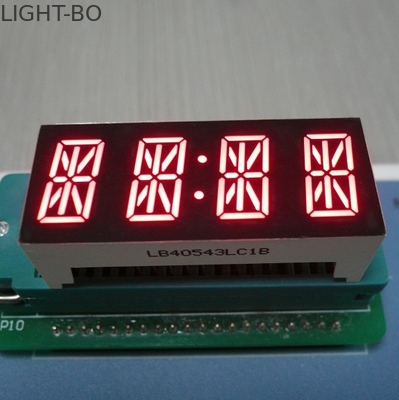

7 Segment 4 Digit Alphanumeric LED Display High Brightness For Instrument Panel 2
