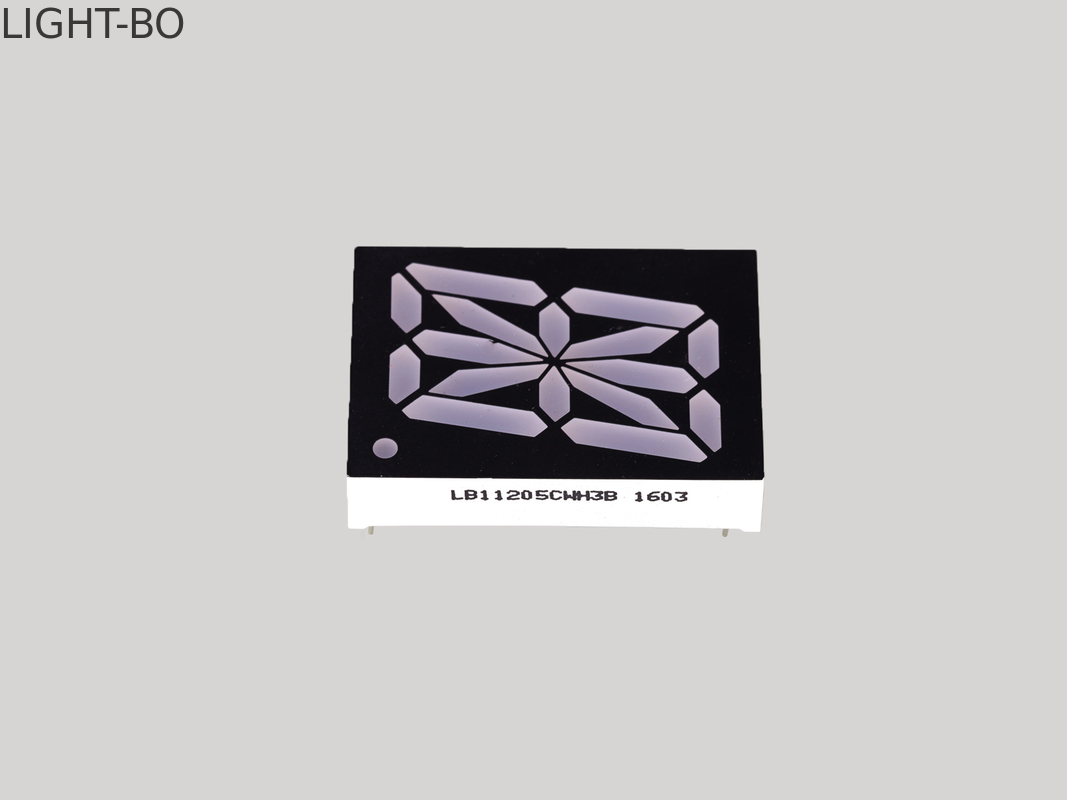

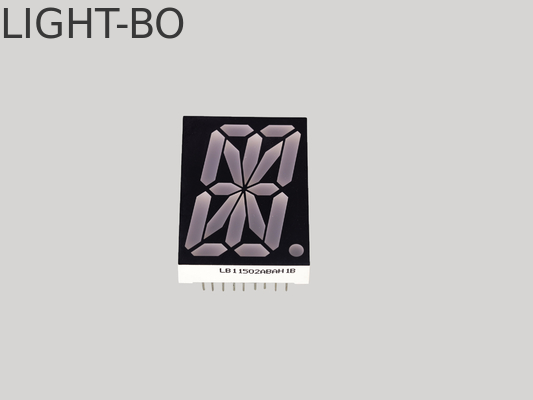

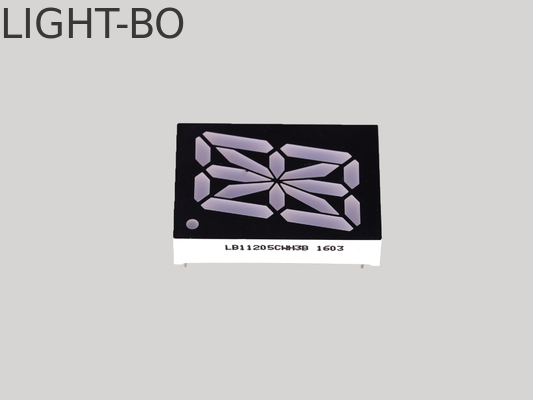

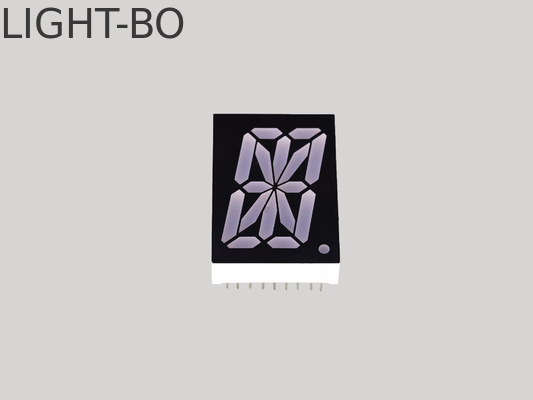

Ultra Red 1.2" Single Digit 16 Segment Led Display Common Anode

Ultra Red 1.2" Single Digit 16 Segment Led Display Common Anode

Brand Name:	LIGHT-BO
Model Number:	LB11205CR1B
MOQ:	1000 pcs
Price:	Negotiation
Payment Terms:	T/T,
Supply Ability:	50,000 pcs /day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN,CHINA

Certification:

ISO9001&RoHS

Emitting Colour:

Ultra Bright Red

Digit Height:

1.2inch

Polarity:

Common Anode

Lifespan:

80000hrs

Wavelength:

630-635nm

Brightness:

High

Type:

16 Segment Led Display

Operating Voltage:

Service:

OEM / ODM

Storage Temperature:

-40°C To +85°C

Packaging Details:

EPE +CARTON

Supply Ability:

50,000 pcs /day

Highlight:

Common Anode 16 Segment Led Display

Ultra Red 16 Segment Led Display

1.2” 16 Segment Led Display

Product Description

Ultra Blue 1.2" Single Digit 16 Segment Led Display Common Anode For Equipment

Features:

Digit height: 1.2 inch
Emitting color : ultra bright red
Polarity: Common Anode
High-luminous intensity output
High-efficiency
Low-power consumption
Extremely low-current
Luminous evenly distributed on each segment
Emitting colors: various colors avaioaboe

Code:Ultra Bright Red

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	1.8		2.3	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=20mA	25		35	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	630		635	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+85	℃
Storage Temperature Range	Tstg	-40～+85	℃
Solder Temperature(3 sec)	Th	260	℃

LED working lifetime 80,000hrs Absolute Maximum Rating at Ta=25℃

FAQ:

1.Is your parts new ?
Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.
2.What is your warranty?
Answer: Within one year after package have been received.
3.How to pay the order?
Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.
4.Quality problems
Answer: If there is any quality problem or question, we could offer technical support or return service.
5.What is your lead time?
Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.
6. May I have a sample for testing?
Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
