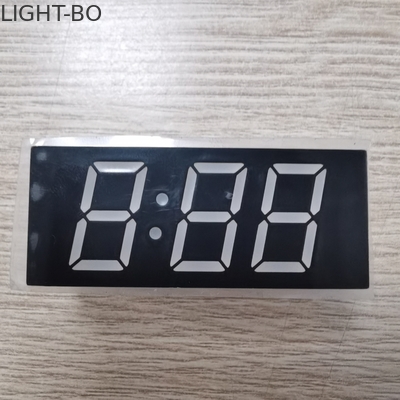

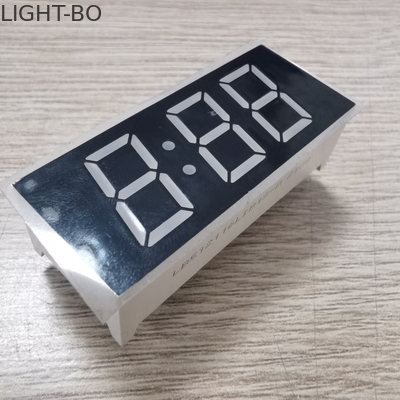

Lengthened Pin LED Clock Display 0.64 Inch Digit 7 Segment 80mW

name

Lengthened Pin LED Clock Display 0.64 Inch Digit 7 Segment 80mW

Brand Name: LIGHTBO

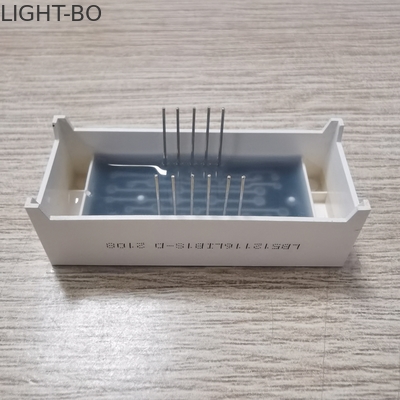

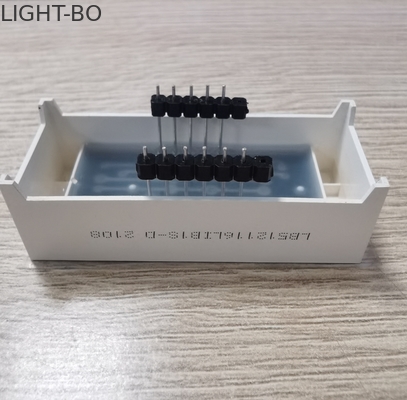

Model Number: LB512116LIB1S-D
MOQ: 2000PCS
Price: Negotiation
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Outer Dimension:
51*21*16
Emitting Colour:
Sky Blue
Digit Height:
0.64 Inch (16.2mm)
Polarity:
Common Cathode
Lifespan:
100000hrs
PIN:
11pcs
Packaging Details:
EPE +CARTON
Supply Ability:
50000PCS/Day
Highlight:

Lengthened Pin LED Clock Display

,

0.64 Inch Digit LED Clock Display

,

80mW 3 Digit LED Display

Product Description

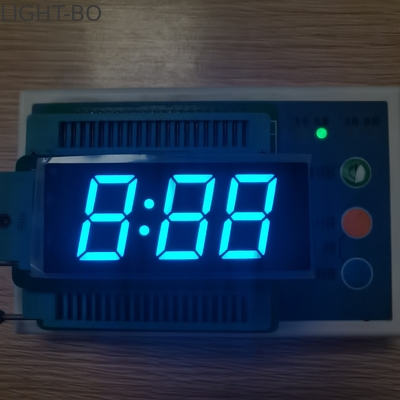

Sky Blue Color 3 Digit 7 Segment LED Clock Display Lengthened Pin



Features:

  • Outer dimensions:51*21*16mm

  • Digit height: 0.64inch (16.2mm)

  • Emitting color : Sky Blue

  • Polarity: Common Cathode

  • PIN:

 Advantages:

  • High-luminous intensity output

  • High-efficiency

  • Low-power consumption

  • Extremely low-current

  • Luminous evenly distributed on each segment

  • Emitting colors: various colors avaioaboe

Code:Sky Blue

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.8   3.3 V
Reverse Voltage Vr Ir=10uA 30     V
Luminous Intensty Iv If=20mA   30   mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength Dλ If=20mA   480

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40～+120 ℃
Storage Temperature Range Tstg -40～+120 ℃
Solder Temperature(3 sec) Th 260

℃

LED working lifetime 100,000hrs,  Absolute Maximum Rating at Ta=25℃

​
