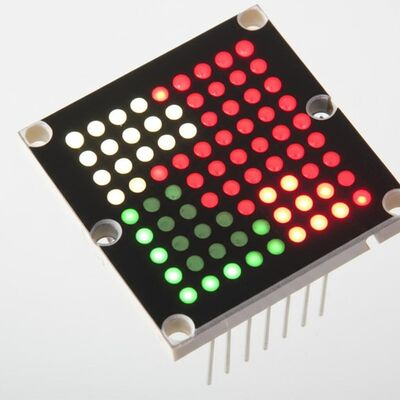

8x8 Dot Matrix LED Display with Common Anode Super Bright Red/Green for Stable Performance in Moving Signs

8x8 Dot Matrix LED Display with Common Anode Super Bright Red/Green for Stable Performance in Moving Signs

Brand Name:	LIGHTBO

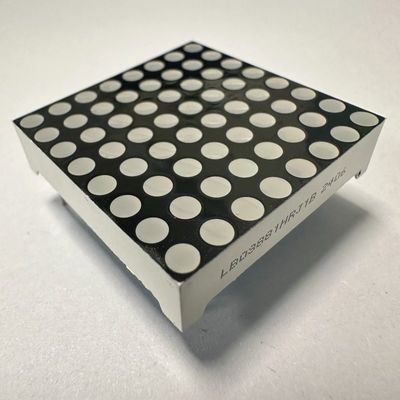

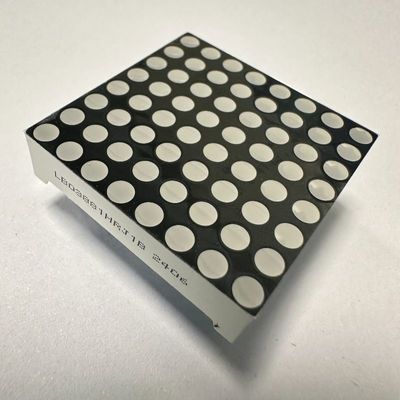

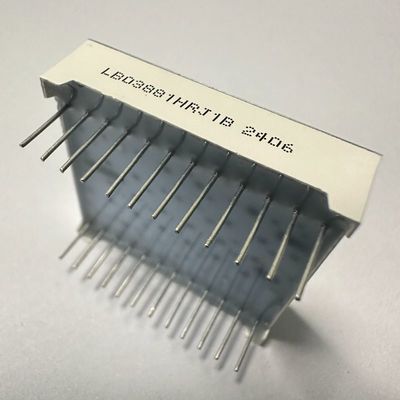

Model Number:	LB03881HRJ1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT,Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&ROHS

Polarity:

Common Anode

Packaging Details:

EPE+Carton

Supply Ability:

50000PCS/Day

Highlight:

Bi-Colour 8 * 8 dot matrix module

Moving Signs 8 * 8 dot matrix module

3mm 8 * 8 dot matrix module

Product Description

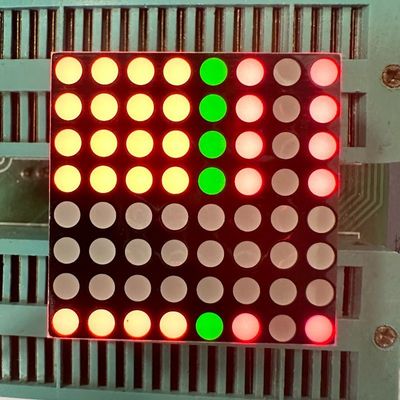

LED Display Stabler Performance Bi-Colour Red/Green 3mm 8×8 DOT Matrix Common Anode for Moving Signs

Key Specifications & Features

Type: 1.26 inches, 3mm, 8×8 dot matrix LED displays
Emitting dot: 3.0mm diameter
Size: 32 × 32 × 8mm
White epoxy black surface
Emitting colors: Super bright red/Super bright green
Wavelength: 630-635nm/569-573nm
Luminous intensity: 50-60mcd
Forward voltage: 1.8-2.3V/led
Forward current: 5-10mA/led
High efficiency with low power consumption
Extremely low current operation
Big viewing angle vertically and horizontally
Stable performance with long lifetime
IC Compatible
RoHS directive-compliant

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Technical Specifications by Color Code

Yellow Green - J

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Orange - F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Applications

Suitable for digital displays and display screens, lift/elevator position indicators, elevator floor number indicators, and similar applications. Also widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, and heating/cooling controls.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are original manufacturers with more than 20 years experience in optoelectronic LED displays.

What are your main products?

Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

What is your MOQ?

Our MOQ is 1000 pcs, but we can also accept sample orders and small orders with quantity less than our MOQ.

Can I get samples for testing before placing an order?

Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

How long is your delivery time?

Delivery time is about 10-20 days, depending on order quantity and raw materials. For urgent orders with materials in stock, we can adjust production to deliver within 7-10 days.

What are your payment terms?

We accept bank transfer, T/T, Western Union and PayPal for small amounts. Payment methods are negotiable.

Can you provide FOB prices?

Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.

How can I get your catalogue and price list?

Please provide your email address or contact us directly through our website for our catalogue and price list.

Can I negotiate prices?

Yes, we may consider discounts for bulk orders.

How much are shipping charges?

Shipping costs depend on shipment size and method. We will provide charges upon request.

Do you offer custom design products?

Yes, OEM & ODM services are available. We can customize sizes, LED colors and functional icons according to your requirements.

If I send my design, will you keep it confidential?

Yes, we will not show or sell your design to others without authorization.

What is the lead time for customized product samples?

Samples lead time is about 20-25 working days after receiving mold cost and approved mold drawings.

What shipping methods do you use?

We typically ship by DHL, FedEx, UPS, EMS, air or sea. You can choose the method that works best for you.

How do you ensure product quality?

As ISO 9001 certified manufacturers with 20+ years experience, we conduct twice 100% testing on all products before shipment.
