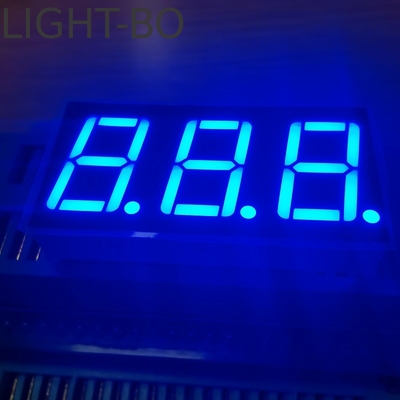

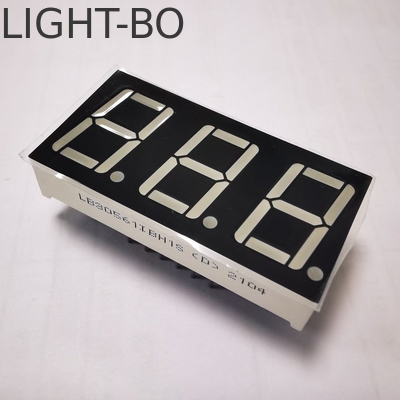

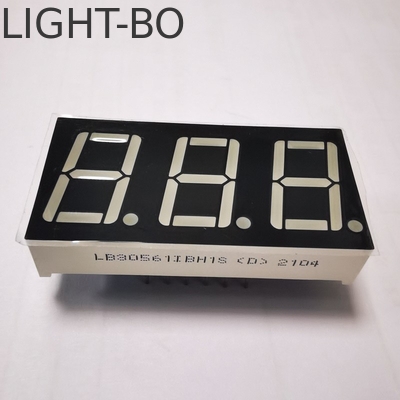

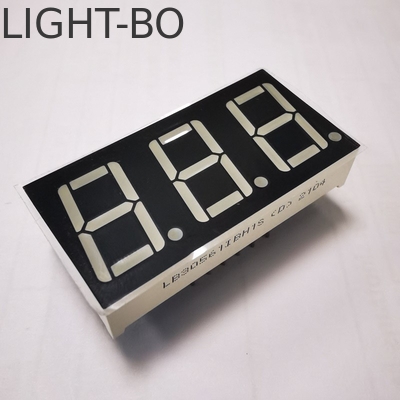

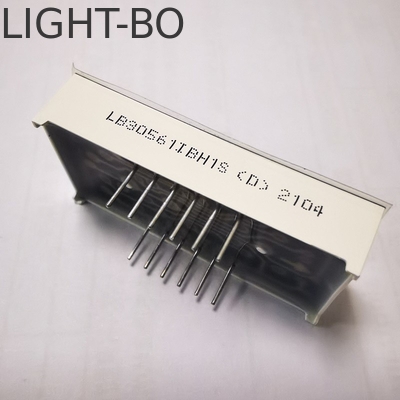

Triple Digit 0.56inch 7 Segment LED Display Blue Color Common Anode

Brand Name:	LIGHT-BO
Model Number:	LB30561IBH1S
MOQ:	1000PCS
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen，china

Certification:

ISO9001&RoHS

Emitting Color:

Blue

Polarity:

Common Anode

Shipping:

By DHL TNT UPS EMS Etc.

Digit Height:

14.2mm (0.56 Inch)

Wavelength:

462-465nm

Face Colour:

White Segments Black Face

OEM:

Yes

Lifespan:

100000hrs

Operating Temperature:

-45-80℃

Digits:

Dimensions:

40.5*16*7mm

Usage:

Indoor/Outdoor

Application:

Instrument Panel

Packaging Details:

EPE+carton

Supply Ability:

50000PCS/Day

Highlight:

Instrument Panel 7 Segment LED Display

0.56” 7 Segment LED Display

Blue 7 Segment LED Display

Product Description

Triple Digit 0.56inch 7 Segment LED Display Blue Color Common Anode

Product Description:

Character height: 0.56"( 14.2mm)

Outer dimensions: 37.6*19*8 mm

Polarity: Common Anode
LED color : Ultra bright blue
Waevlength:460-465nm
Forward voltage: 2.8-3.2V/led
Forward current:5-10mA/ led

Emitting colours: red, blue, green, white, amber, orange and yellow

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Applications:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on
