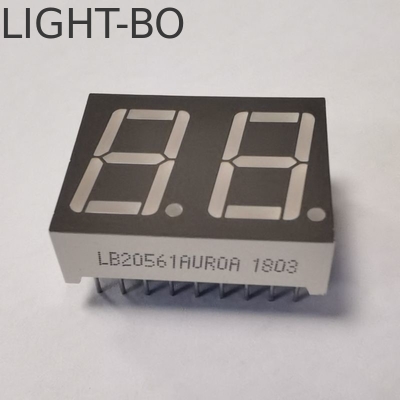

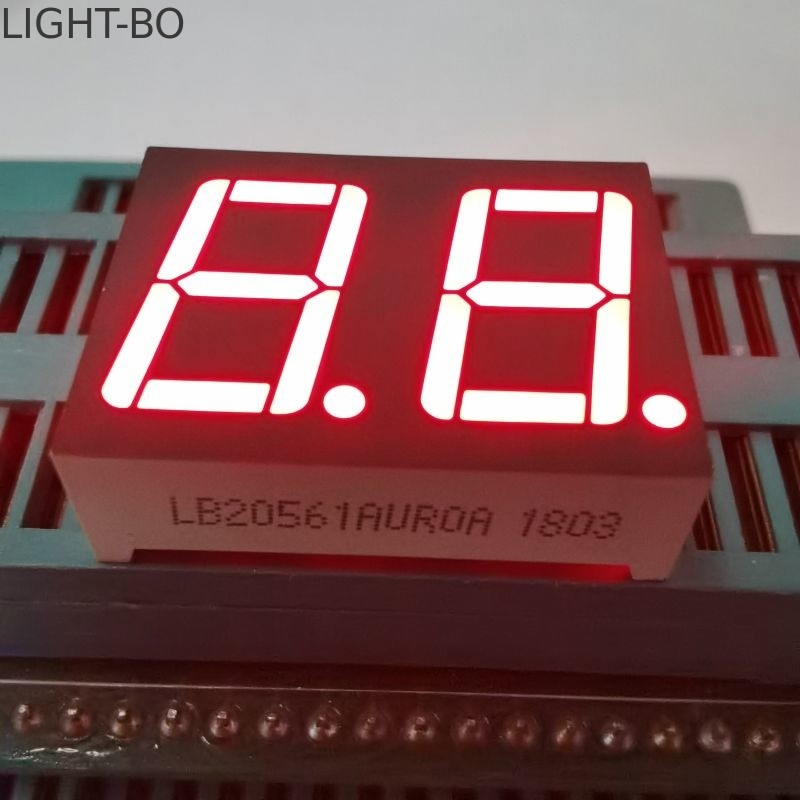

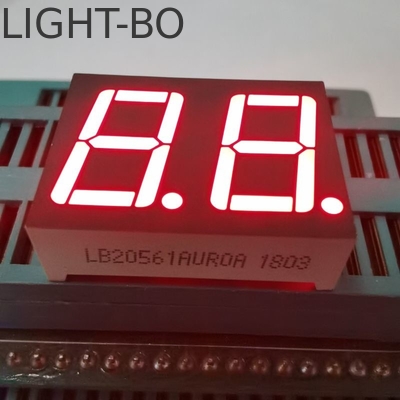

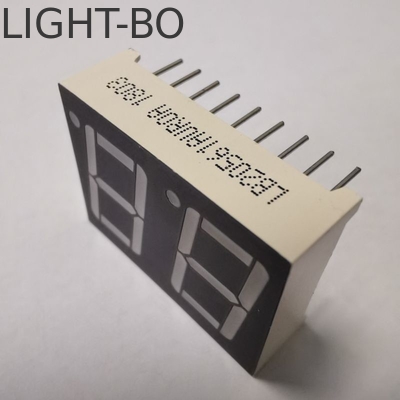

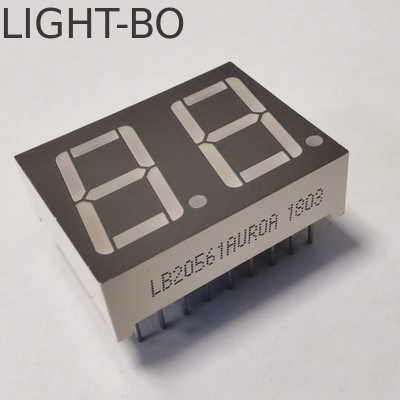

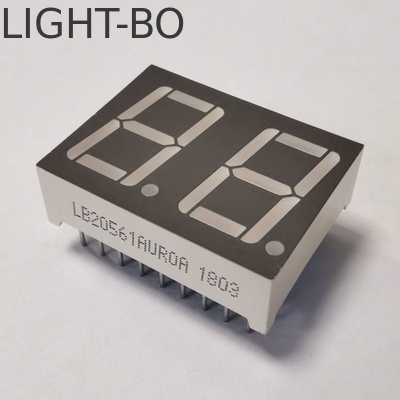

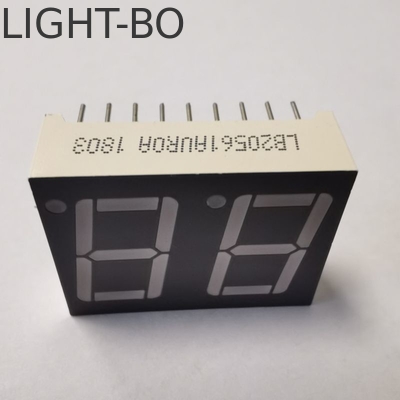

Ultra Bright Red 2 Digit 0.56inch 7 Segment LED Display Common Anode

Ultra Bright Red 2 Digit 0.56inch 7 Segment LED Display Common Anode

Ultra Bright Red 2 Digit 0.56inch 7 Segment LED Display Common Anode

Brand Name: LIGHT-BO
Model Number: LB20561AUR0A
MOQ: 1000
Price: Negotiate
Payment Terms: T/T,Western Union
Supply Ability: 50000 PCS/Day
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
ISO9001&RoHS
Polarity:
Common Anode
Shipping:
By DHL, TNT, UPS, EMS, Etc.
Oem:
Yes
Life Span:
100000hours
Operating Temperature:
-45-80℃
Application:
Temperature Indicator
Packaging Details:
EPE+carton
Supply Ability:
50000 PCS/Day
Highlight:

Common Anode 7 Segment LED Display

,

Temperature Indicator 7 Segment LED Display

,

2 Digit 7 Segment LED Display

Product Description

Ultra Bright Red 2 Digit 0.56inch 7 Segment LED Display Common Anode

  • Customized dual digit 7 segment led display

  • Outer dimensions: 25*19*8mm

  • Digit height:14.2mm ( 0.56inch)

  • White segments black surface

  • Emitting color : ultra bright RED

  • Wavelength:620-625nm

  • Luminous intensity: 80-100mcd

  • Forward voltage: 1.8-2.2V/led

  • Foward current:5-10mA/led

  • High luminous intensity

  • Low power consumption

  • Extremely low current

  • Stable performance

  • Wide viewing angle

  • Continuous uniform segments

  • Long lifespan

  • Fast heat-dissipation

  • IC Compatible

  • Easy assembly

  • Meet RoHS Compliant

Absolute Maximum Ratings(Ta=25ºC)​

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature(≤3 seconds) Th 260 ºC



Code:Ultra Bright Red -UR

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8   2.2 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=10mA 80   100 mcd
Spectrum With Of Half Value △λ If=10mA   20   nm
Wavelength Dλ If=10mA 625   635 nm



APPLICATIONS:
Widely used for temperature controllers and digital indicators,home appliances,instrument panels and so on.


Ultra Bright Red 2 Digit 0.56inch 7 Segment LED Display Common Anode 0

Ultra Bright Red 2 Digit 0.56inch 7 Segment LED Display Common Anode 1



Ultra Bright Red 2 Digit 0.56inch 7 Segment LED Display Common Anode 2



Ultra Bright Red 2 Digit 0.56inch 7 Segment LED Display Common Anode 3
