Ultra Bright Red 2 Digit 0.56 inch 7 Segment LED Display Common Anode

Name: Ultra Bright Red 2 Digit 0.56 inch 7 Segment LED Display Common Anode
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB20561AUR0A
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB20561AUR0A
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Polarity:

Common Anode

Shipping:

By DHL, TNT, UPS, EMS, Etc.

Oem:

Yes

Life Span:

100000hours

Operating Temperature:

-45-80℃

Application:

Temperature Indicator

Packaging Details:

EPE+carton

Supply Ability:

50000 PCS/Day

Highlight:

Common Anode 7 Segment LED Display

Temperature Indicator 7 Segment LED Display

2 Digit 7 Segment LED Display

Product Description

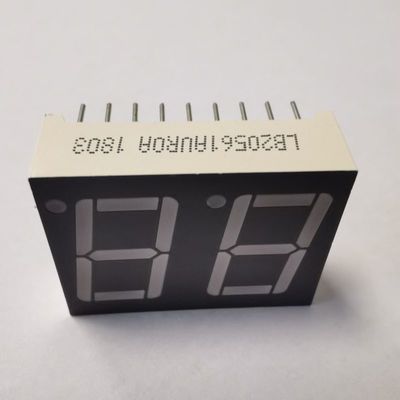

Ultra Bright Red 2-Digit 0.56 inch 7 Segment LED Display

High-performance numeric display engineered for temperature controllers, home appliances, and instrument panels with exceptional clarity and reliability.

Product Overview

This 0.56-inch (14.2mm) digit height display offers clear readability in a compact 25×19×8mm package, making it ideal for space-constrained applications. Featuring ultra bright red illumination (620-625nm wavelength, 80-100mcd) with white segments on a black surface for enhanced contrast, it delivers consistent, vivid output while maintaining low power consumption and fast heat dissipation.

Built with reliable common anode configuration and RoHS compliance, this display integrates easily with standard ICs for versatile digital indicator applications.

Technical Specifications

Category	Parameter	Specification
Basic Design	Display Type	2-Digit 7-Segment LED Display
	Polarity	Common Anode
	Digit Height	0.56inch (14.2mm)
	Outer Dimensions (L×W×H)	25 × 19 × 8mm
	Segment/Surface Color	White segments on Black Surface
Optical Performance	Emitting Color	Ultra bright Red
	Wavelength	620-625nm
	Luminous Intensity (IV)	80-100 mcd
	Viewing Angle	Wide
Optical Performance	Light Distribution	Continuous uniform segments
Electrical Parameters	Forward Voltage (VF)	1.8-2.2V per LED
	Forward Current	5-10mA per LED
	Power Consumption	Low
Quality & Durability	Core Advantages	Fast heat-dissipation, long lifespan, stable performance, IC compatible
	Assembly	Easy to assemble
	Compliance	RoHS Compliant

Key Features

Superior Optical Performance

Ultra Bright Red Illumination: 620-625nm wavelength and 80-100mcd luminous intensity ensure high visibility in bright environments
High-Contrast Design: White segments on black surface for sharp numeric visibility
Wide Viewing Angle: Clear readability from multiple positions
Continuous Uniform Segments: Even light distribution without dim spots

Compact & Durable Design

0.56inch Digit Height: 14.2mm tall digits balance readability and space efficiency
Slim 25×19×8mm Size: Fits tight spaces without major design modifications
Fast Heat-Dissipation: Prevents overheating for extended lifespan

Energy Efficiency & Reliability

Low Power Consumption: Optimized for battery-powered and energy-efficient devices
Extremely Low Current: Reduces heat generation and power waste
Long Lifespan: High-quality LED chips for durable operation
Stable Performance: Resists voltage fluctuations and environmental stress

Easy Integration & Compliance

Common Anode Configuration: Simplifies circuit design with standard driver ICs
Easy Assembly: Hassle-free PCB mounting for automated production
RoHS Compliant: Meets international environmental standards
Customizable Options: Tailored dual-digit solutions available

Electrical Specifications

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Ultra Bright Red -UR Specifications

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

About Shenzhen Guangzhibao Technology Co., Ltd. (Brand: Light-Bo)

Established in 2006, we are an ISO 9001:2015 certified company specializing in R&D, manufacturing, and sales of optoelectronic LED displays. With over 15 years of OEM and ODM experience, Light-Bo is committed to providing high-quality, cost-effective customized solutions to help customers reduce costs and enhance competitiveness.

Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, and Dot Matrix LED Display are widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems, and more.

Certifications & Quality

Facilities Overview

Industry Presence

Shipping & Logistics

Frequently Asked Questions

Are you a trading company or manufacturer?

We are original manufacturers with more than 20 years of experience in optoelectronic LED displays.

What is your main products?

Our main products include 7 Segment LED display, SMD LED Display, Dot Matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

What is your MOQ?

Our MOQ is 1000 pieces, but we also accept sample orders and small orders with quantity less than our MOQ.

Can I get samples for testing?

Yes, we can provide 5-10 free samples for testing, but the freight cost will be borne by the customer.

What is your delivery time?

Delivery time is typically 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.

What are your payment terms?

We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Do you offer custom design products?

Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

How do you ensure product quality?

We are ISO 9001 QMS certified manufacturers with over 20 years of experience. We conduct twice 100% testing of all products before shipment.
