7 Segment LED Display Numeric LED Display with -40~105℃ Operating Temperature 80000hours Lifespan and 20mA Forward Current

name

7 Segment LED Display Numeric LED Display with -40~105℃ Operating Temperature 80000hours Lifespan and 20mA Forward Current

Brand Name: LIGHTBO
Model Number: LB30361LY1B
MOQ: 1000
Price: Negotiate
Payment Terms: TT,Western Union
Supply Ability: 50000pcs/days
Detail Information
Product Description
Detail Information
Place of Origin:
SHENZHEN，CHINA
Certification:
ISO9001&ROHS
Package Dimensions:
93*16mm
Polarity:
Common Anode
Emitting Colour:
Green/Red
Display Brightness:
Ultra Bright
Digits:
5
Material:
PCB,Epoxy,LED Chip,plastic
Usage:
Indoor/Outdoor
Application:
Kitchen Hood
Operating Temperature:
-40~105 ℃
Life Span:
80000hours
Forward Current:
20mA
Packaging Details:
EPE+Carton
Supply Ability:
50000pcs/days
Highlight:

Super Bright 7 Segment LED Display

,

Panel Meter 7 Segment LED Display

,

9.2mm 7 Segment LED Display

Product Description

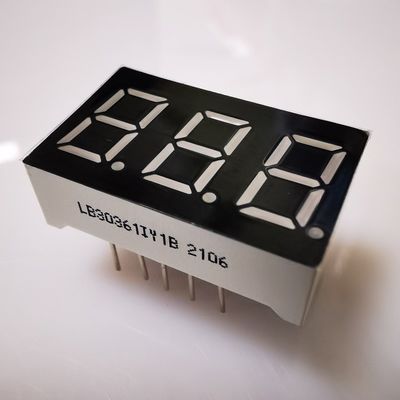

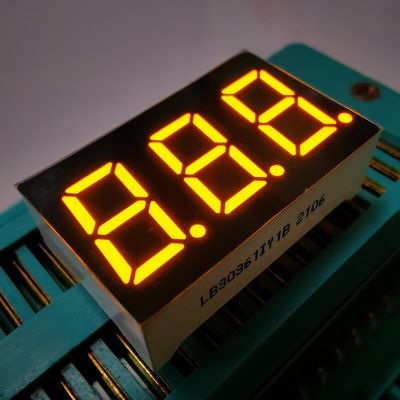

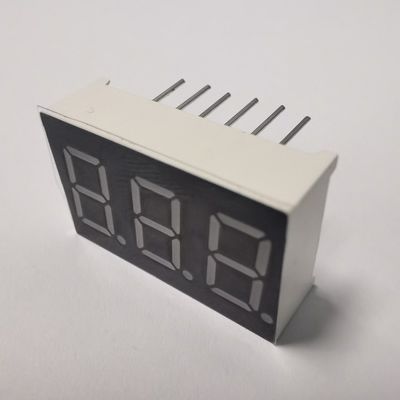

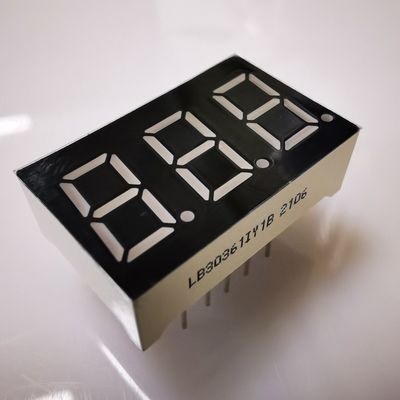

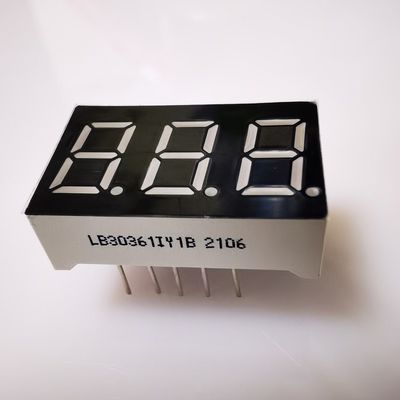

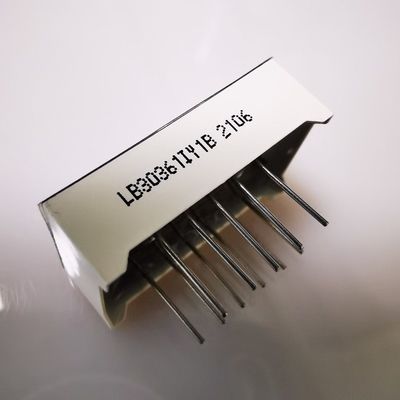

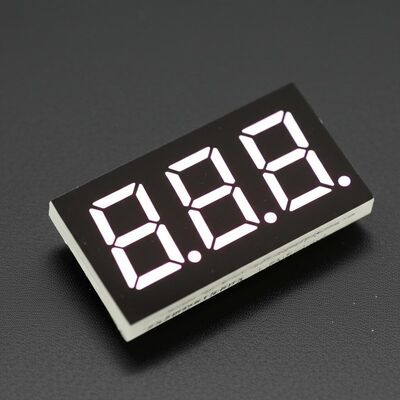

Super Bright Amber LED Display 7 Segment 3 Digit 9.2mm Common Cathode for Panel Meter
Product Specifications
  • Character height: 0.36" (9.2mm)
  • Outer dimensions: 22.5×14×7.2 mm
  • Polarity: Common anode
  • White Epoxy black surface
  • Super bright amber (585-595nm, 50-60mcd)
  • Forward voltage: 1.8-2.2V/led
  • Forward current: 5-10mA/led
  • Available colors: red, blue, green, white, amber, orange and yellow
Absolute Maximum Ratings (Ta=25ºC)
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Power Dissipation (per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature (≤3 seconds) Th 260 ºC
Technical Parameters by Color Code
Yellow Green (J)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 2.4 V
Reverse Voltage Vr Ir=10uA 5 V
Luminous Intensity Iv If=10mA 30 40 mcd
Spectrum Width Of Half Value △λ If=10mA 20 nm
Wavelength Dλ If=10mA 569 574 nm
Product Features
  • Forward voltage (high luminous intensity output)
  • Low power consumption
  • Extremely low current
  • Luminous evenly distributed on each segment
  • Industrial standard size
  • Excellent reliability in bright ambient light
  • Stable performance
  • Long lifetime
  • RoHS/REACH compliant
Applications
  • Audio equipment and instrument panels
  • Home electronic appliances
  • Numeric displays
  • Multimedia products
  • Digital indicators (temperature, humidity, process, etc.)
7 Segment LED Display Numeric LED Display with -40~105℃ Operating Temperature 80000hours Lifespan and 20mA Forward Current 0
Certifications
7 Segment LED Display Numeric LED Display with -40~105℃ Operating Temperature 80000hours Lifespan and 20mA Forward Current 1
Company Overview
7 Segment LED Display Numeric LED Display with -40~105℃ Operating Temperature 80000hours Lifespan and 20mA Forward Current 2 7 Segment LED Display Numeric LED Display with -40~105℃ Operating Temperature 80000hours Lifespan and 20mA Forward Current 3 7 Segment LED Display Numeric LED Display with -40~105℃ Operating Temperature 80000hours Lifespan and 20mA Forward Current 4 7 Segment LED Display Numeric LED Display with -40~105℃ Operating Temperature 80000hours Lifespan and 20mA Forward Current 5 7 Segment LED Display Numeric LED Display with -40~105℃ Operating Temperature 80000hours Lifespan and 20mA Forward Current 6
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays.
Q2: What is your main products?
A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole led, SMD LEDs, LED Backlights, and more.
