LED Display Ultra Bright White Grey Surface 7 Segment 3digit 14.2mm Common Cathode for Temperature Controller

LED Display Ultra Bright White Grey Surface 7 Segment 3digit 14.2mm Common Cathode for Temperature Controller

Brand Name:	LIGHTBO
Model Number:	LB30561LWH8B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT , Western Union
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&ROHS

Material:

PCB,Epoxy,LED Chip,plastic

Usage:

Indoor/Outdoor

Application:

Kitchen Hood

Operating Temperature:

-40~105 ℃

Life Span:

80000hours

Forward Current:

20mA

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

14.2mm 7 Segment LED Display

Temperature Controller 7 Segment LED Display

3digit 7 Segment LED Display

Product Description

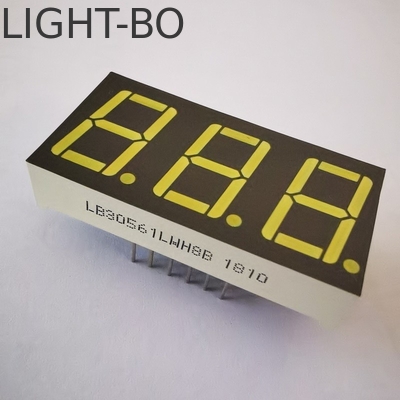

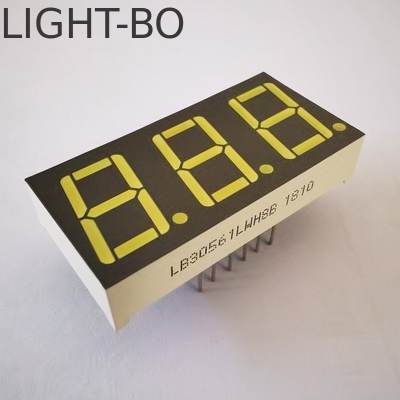

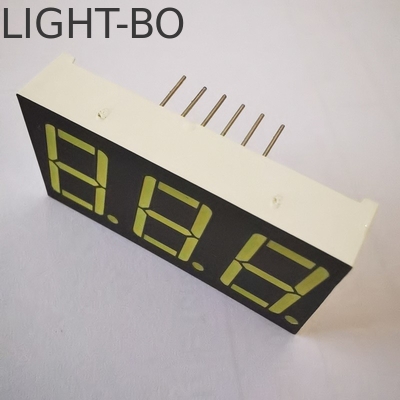

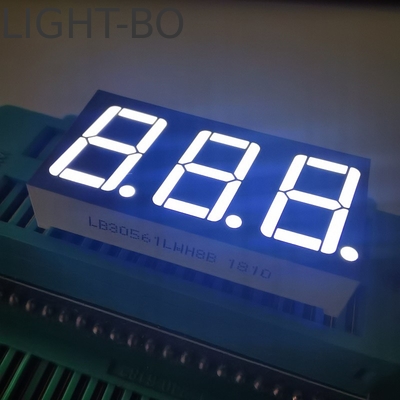

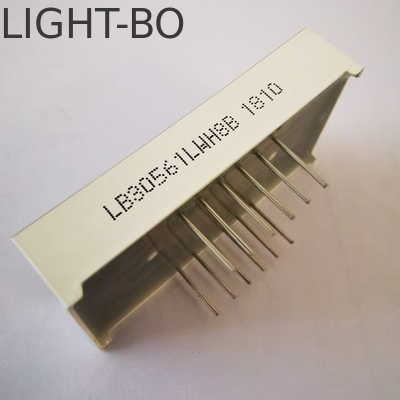

LED Display Ultra Bright White Grey Surface 7 Segment 3digit 14.2mm Common Cathode for Temperature Controller

Product Description:
LED DISPLAY 7 SEGMENT 3 DIGIT 14.2MM

Character height: 0.56"( 14.2mm)

Outer dimensions: 37.6*19*8 mm

Polarity: Common cathode

Forward voltage: 2.8-3.2V/led

Forward current:5-10mA/ led

Made with yellow epoxy, grey surface

Ultra bright WHITE

Emitting colours: red, blue, green, white, amber, orange and yellow

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Code:R-Ultra bright white

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=10mA	2.8		3.2	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	5			V
Luminous Intensty(Per dice)	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	λ	If=10mA		20		nm
Color Temperature	K	If=10mA	6000		6500	K
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Applications:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on
