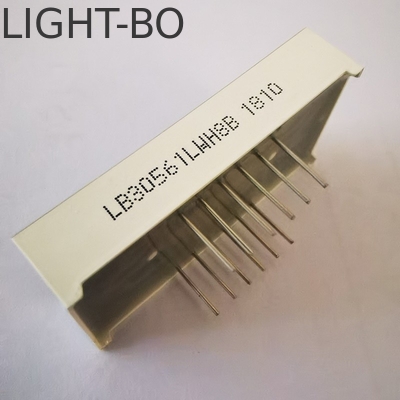

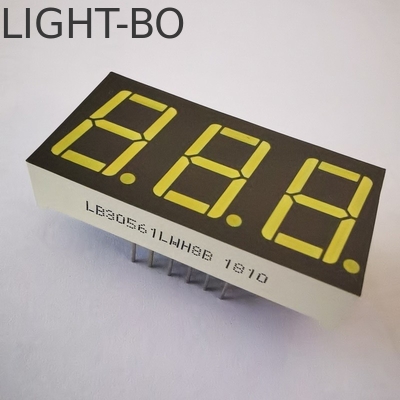

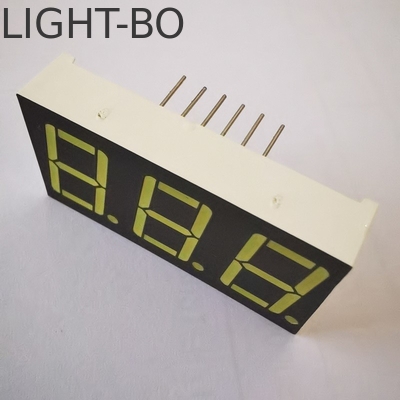

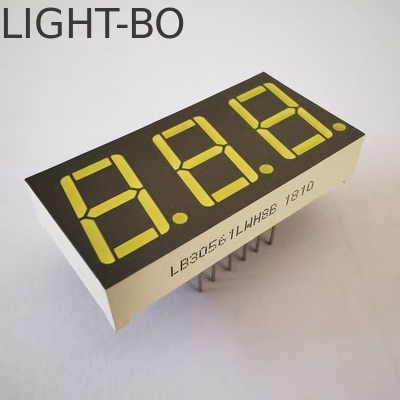

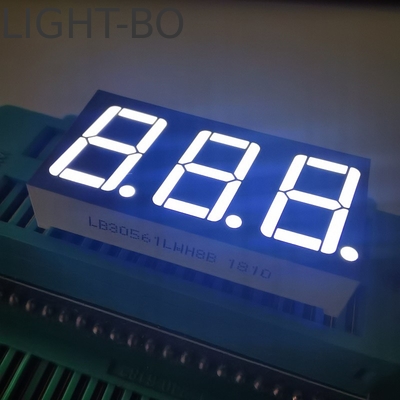

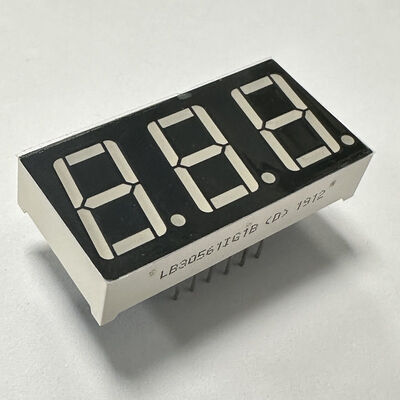

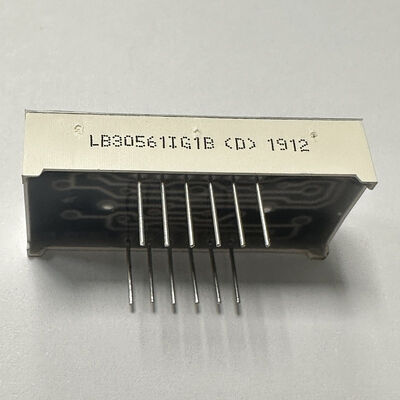

Common Cathode LED Display Ultra Bright White Grey Surface 7 Segment 3digit 14.2mm for Temperature Controller

Name: Common Cathode LED Display Ultra Bright White Grey Surface 7 Segment 3digit 14.2mm for Temperature Controller
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB30561LWH8B
Price: 0.20 USD
Availability: InStock

Brand Name:	LIGHTBO
Model Number:	LB30561LWH8B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT,Western Union
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&ROHS

Document:

LB30561-Y-RGB1B-D.pdf

Package Dimensions:

93*16mm

Polarity:

Common Anode

Display Brightness:

Ultra Bright

Digits:

Material:

PCB,Epoxy,LED Chip,plastic

Usage:

Indoor/Outdoor

Application:

Kitchen Hood

Operating Temperature:

-40~105 ℃

Life Span:

80000hours

Forward Current:

20mA

Tube Chip Color:

Full Color,Red,Green,white,Blue

Screen Dimension:

Customized Size,12.7x 7.6 X 7mm,50.4*19.0*8.1mm,113mm*29mm,28.8*40.8mm

Display Function:

Graphics,Animation,Video,numeral 0-9,temperature

Pixels:

10mm,7mm,25mm,8.0,10.20mm

Color:

Blue,yellow,green,red,white

Brightness:

Auto-dimming By Light Sensor,4000,7000cd/sqm,5000~6500mcd,High Brightness

Warranty:

2 Years,1 Year

Product Name:

Hot Video HD P6 7 Segment LED Display Screen,Led 7 Segment Led Display,Chestnuter Led Video Display Panel

Name:

LED Price Station Petrol Display,Small Seven Segment 3 Digits 0.2 Inch 7 Segment Smd Led Display,4 Digit 7 Segment Display,10 Inch 7 Segment Display LED

Voltage:

DC12V,90~120V/220~240V (base On The Customers' Need)

Emitting Color:

Blue,yellow,green,white,red

Digit Height:

0.2 Inch,1.5,1.2,0.38,0.5

Led Chip:

Epistar,InGan,AlGanlp

Oem:

Yes

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

Grey Surface 7 Segment LED Display

14.2mm 7 Segment LED Display

Product Description

Product Overview

Common Cathode LED Display Ultra Bright White Grey Surface 7 Segment 3-digit 14.2mm for Temperature Controller

Product Specifications

LED DISPLAY 7 SEGMENT 3 DIGIT 14.2MM

Character height: 0.56" (14.2mm)

Outer dimensions: 37.6 × 19 × 8 mm

Polarity: Common cathode

Forward voltage: 2.8-3.2V/led

Forward current: 5-10mA/led

Construction: Yellow epoxy, grey surface

Ultra bright WHITE

Available emitting colors: red, blue, green, white, amber, orange, and yellow

Key Features

High forward voltage for superior luminous intensity output
Low power consumption
Extremely low current operation
Evenly distributed luminous intensity across each segment
Industrial standard size compatibility
Excellent reliability in bright ambient light conditions
Stable performance characteristics
Long operational lifetime
Compliant with RoHS/REACH standards

Applications

Audio equipment and instrument panels
Home electronic appliances
Numeric display systems
Multimedia products
Digital indicators for temperature, humidity, and process monitoring
Refrigerator temperature controllers
Thermostat indicators
Heating and cooling control systems

Technical Parameters

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Yellow Green (Code: J)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green (Code: G)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO)

Established in 2006, we are a company that integrates R&D, manufacturing and sales of optoelectronics LED Displays.

ISO 9001:2015 Quality Management Systems certified company with more than 15 years OEM and ODM experience.

LIGHTBO is committed to providing high quality and low cost customized solutions to help customers reduce costs and enhance competitiveness.

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances, temperature indicators, humidity indicators, refrigerator controller, thermostats indicator, heating and cooling control systems.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are original manufacturers with more than 20 years experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing an order, can I get some samples for testing?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days, depending on order quantity and raw materials. For urgent orders with available raw materials, we can adjust production to complete within 7-10 days.

Q6: What are your terms of payment?

A: We accept bank transfer, T/T, Western Union and PayPal for small amounts. Payment method details are negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Please provide your email address or contact us directly through our website for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the shipping method. We will provide charges upon request.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: If I send my design, can you make it exclusively for me and not show it to anyone else?

A: Yes, we will not show or sell your design to others without your authorization.

Q13: What is the sample lead time for customized products?

A: Sample lead time is approximately 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What are the shipping methods?

A: We usually ship by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA, etc. You can choose the method that works best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with over 20 years experience. We conduct twice 100% testing of all products before shipment.
